Technical Specifications
Product Overview
High-Performance HV/EHV Power Transmission

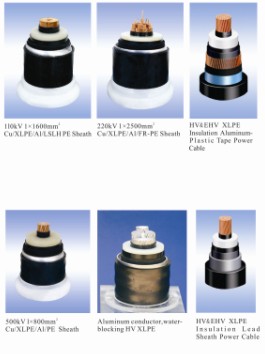

This range of 66kV to 500kV XLPE insulated power cables is engineered for demanding international power transmission and substation projects. Utilizing advanced materials including copper and aluminum conductors, these cables offer specialized shielding options such as corrugated aluminum, lead, and copper sheaths. With proven reliability in major infrastructure projects, these cables are designed to withstand challenging environments while maintaining efficient energy delivery.
Technical Specifications
Advanced Cable Features
- Built-in optical fiber temperature measurement
- Copper wire screen shielding
- Conductor waterproof construction
- Aluminum conductor water-blocking
- Voltage Rating Range
- 66kV - 500kV
- Available Sheathing
- Corrugated AluminumLead SheathCopper SheathPEFR-PE
Transmission Standards
Conductor Categories
- ACSR
- ACSR/AS
- Thermal resistant aluminum alloy
- AAAC
- Carbon fiber composite
- ACSS
Compliance and Testing
Tested Standards
KEMA Certified (220kV)Type Tested (500kV)
