Technical Specifications
Overview
High-Performance AC Power Generation

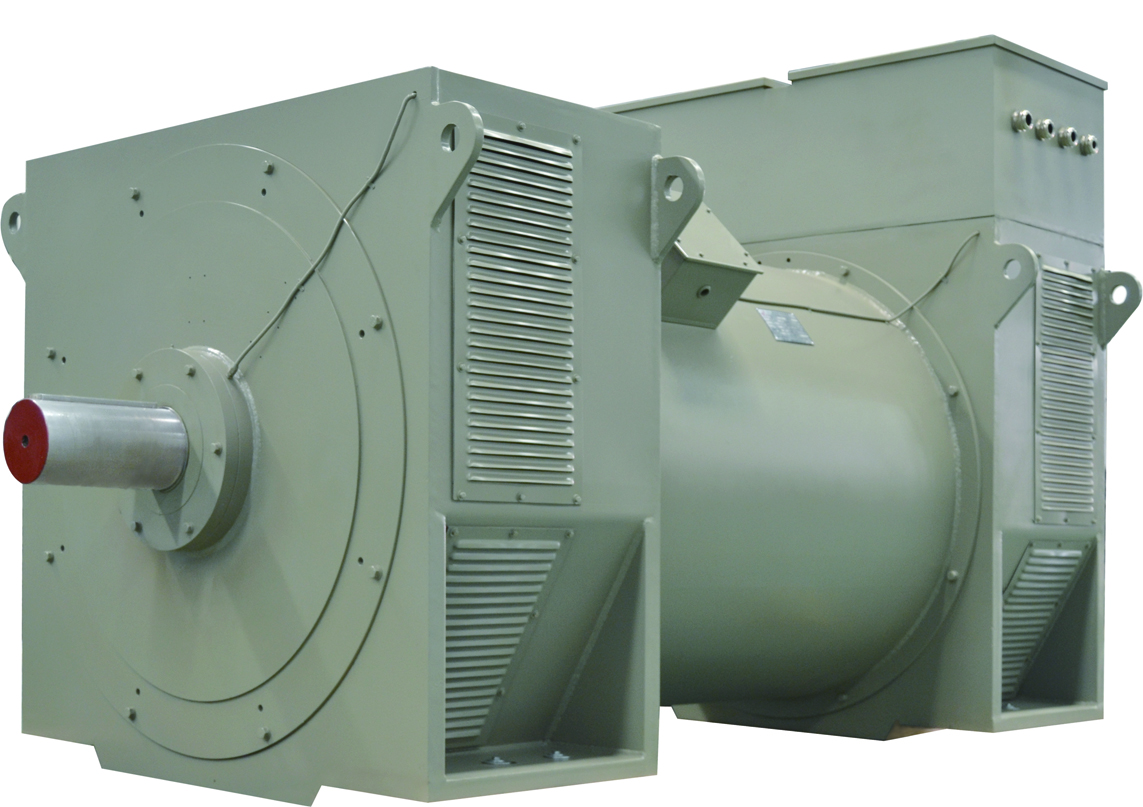

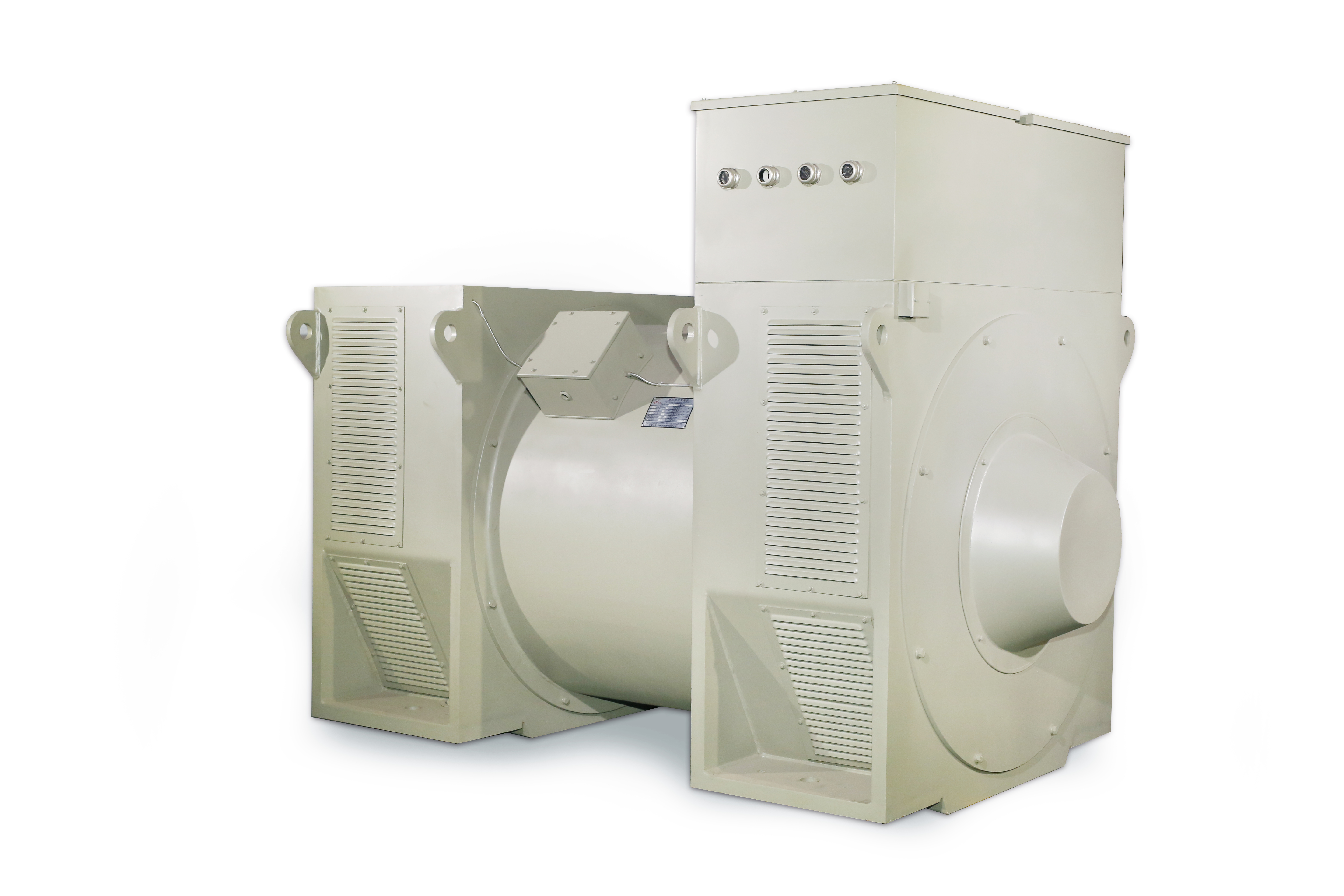

This high-voltage AC alternator is engineered for demanding industrial power generation applications, offering a power range of 600kW to 2200kW. Built for reliability and efficiency, the unit features advanced voltage regulation and robust protection systems, including IP23 enclosure and VPI global varnished insulation. It is an ideal solution for power plants, large industrial facilities, and distributed generation projects requiring dependable high-voltage output.
Performance Metrics
Power Output Range
600 kW
Minimum Power
2,200 kW
Maximum Power
- Rated Voltages
- 3.3 kV4.16 kV6.3 kV6.9 kV10.5 kV13.8 kV
Technical Specifications
Protection Features
- IP23 Enclosure
- Moisture-proof heater
- PMG system
- Voltage Regulation
- Basler electric voltage regulation control, ±0.5% adjustment
- Insulation System
- VPI Global varnished system
Monitoring & Control
- Temperature Measurement
- PT100 elements for Bearings and Winding
