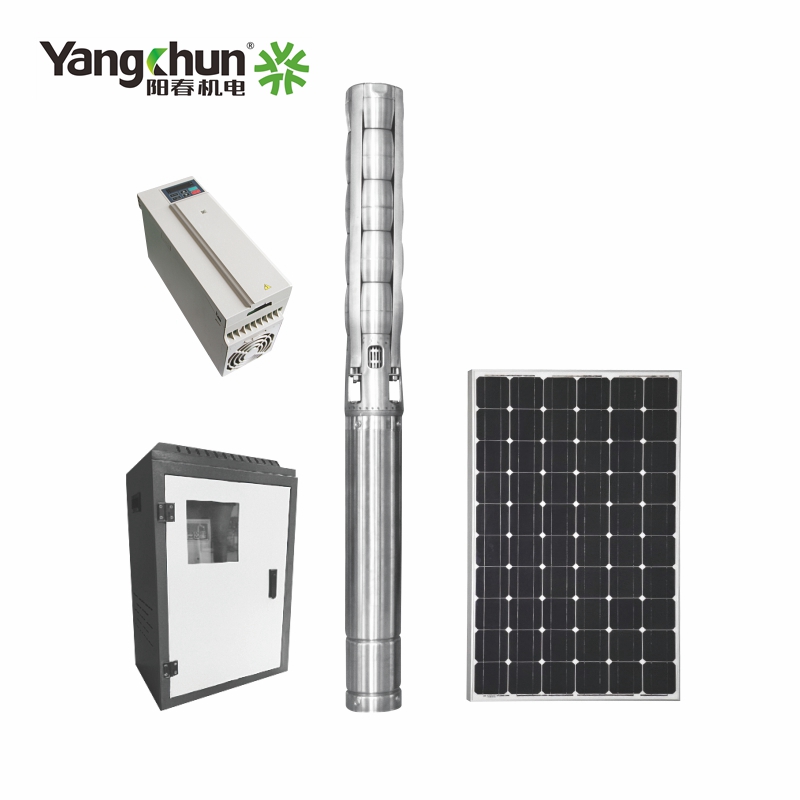

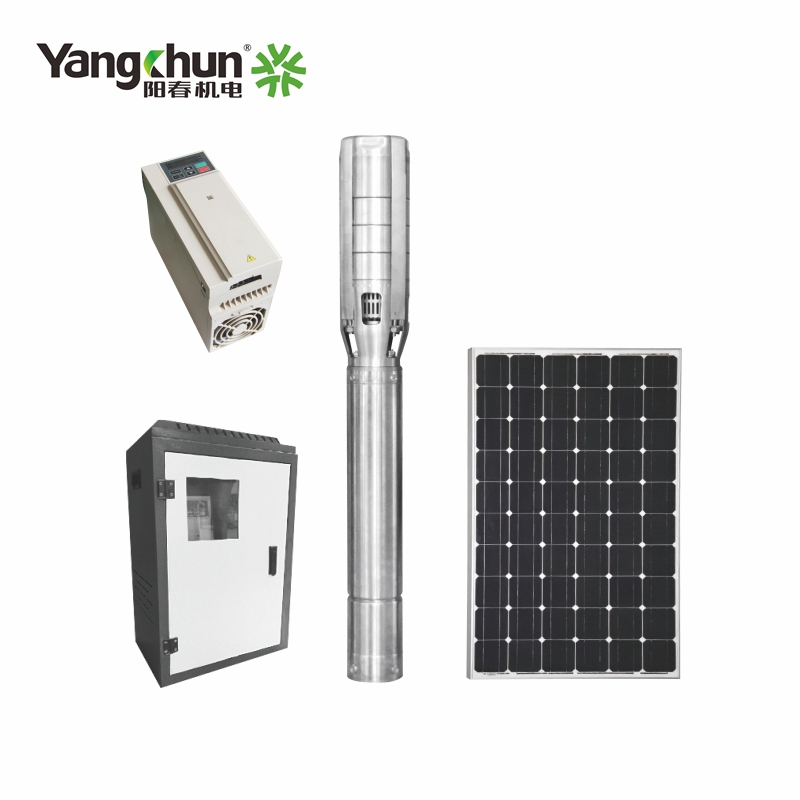

High-Speed Solar Water Pump
This high-speed solar water pump is engineered for efficient water pumping using solar energy. Its intelligent control system optimizes operation, delivering maximum water output for various applications.
Technical Specifications
Overview
High-Efficiency Intelligent Solar Pumping Solution
This 5-inch high-speed solar pump is engineered for demanding deep-well applications, featuring a permanent magnet synchronous motor and a multistage stainless steel impeller. By achieving rotation speeds up to 5200 RPM, it delivers high power density with fewer impeller stages, significantly reducing drilling costs and increasing service life by at least 60% compared to traditional pumps. The system supports both AC and DC inputs with an intelligent control system that ensures constant pressure and flow for agricultural and industrial water supply.
Key Performance Metrics
Core Performance
Technical Specifications

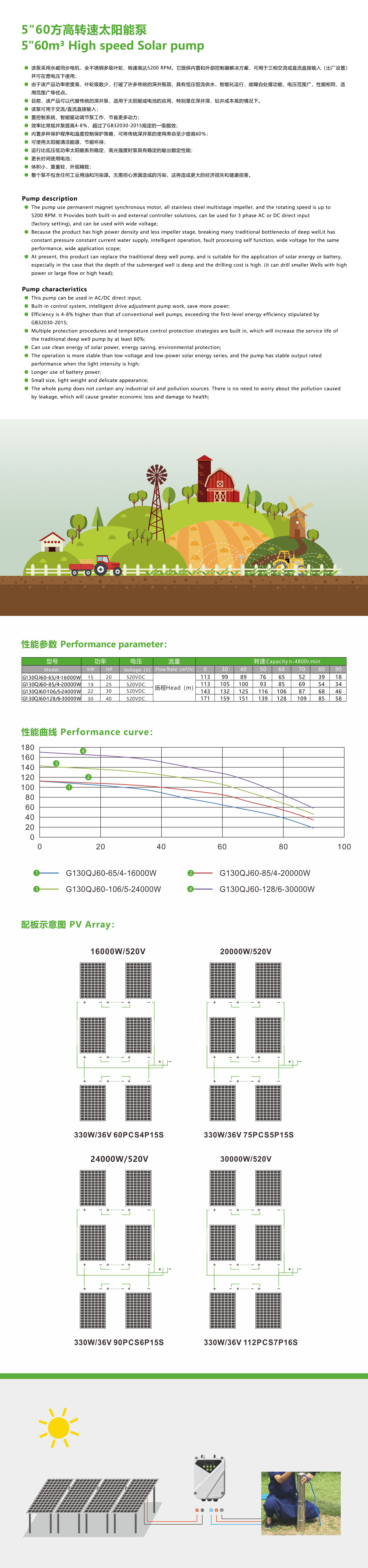

Model Performance Data
| Model | Power (kW/HP) | Max Head (m) | Input Voltage |
|---|---|---|---|
| G130QJ60-65/4-16000W | 15kW / 20HP | 65 | 520VDC |
| G130QJ60-85/4-20000W | 19kW / 25HP | 85 | 520VDC |
| G130QJ60-106/5-24000W | 22kW / 30HP | 106 | 520VDC |
| G130QJ60-128/6-30000W | 30kW / 40HP | 128 | 520VDC |
Physical Attributes
- Pump Diameter: 5 inch
- Material: Full Stainless Steel
- Motor Type: Permanent Magnet Synchronous
- Controller Options: Built-in or External
System Features
Advanced Capabilities
- Permanent magnet synchronous motor for high efficiency
- All stainless steel multistage impeller construction
- Dual AC/DC direct input compatibility
- Intelligent drive adjustment for power optimization
- Constant pressure and constant current water supply
- Built-in temperature control and fault self-processing
- Oil-free design to prevent water source pollution
Solar Configuration
Recommended PV Array
| Pump Power | Solar Panel Spec | Configuration |
|---|---|---|
| 16000W | 330W / 36V | 60 PCS (4P15S) |
| 20000W | 330W / 36V | 75 PCS (5P15S) |
| 24000W | 330W / 36V | 90 PCS (6P15S) |
| 30000W | 330W / 36V | 112 PCS (7P16S) |
Compliance & Protection
- Protection & Standards
- GB32030-2015 Class 1 EfficiencyOver-temperature ProtectionFault Self-ProcessingEnvironmentally FriendlyIntelligent Operation
