High-Speed Precision Press
This high-speed precision press is designed for ultra-precision applications. Its wide mesa provides increased stability and accuracy during high-speed operations.
Technical Specifications
Product Overview
Ultra-Precision Performance

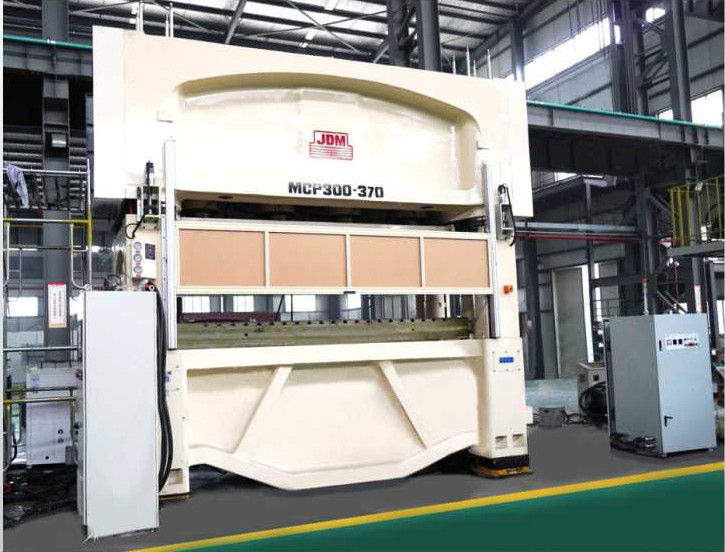

The MCP300 series is an ultra-precision, high-speed press engineered for demanding industrial environments. Featuring a high-rigidity cast body and wide-mesa design, it provides exceptional stability for high-speed stamping of high-hardness materials. With advanced constant-temperature lubrication and multi-point force control, it ensures consistent accuracy and efficiency for modern manufacturing needs.
Key Features
- Engineering Highlights
- Four-columned top cylinderDouble-drive technologyLow inertia clutch brakeConstant temperature coolingOctagonal precision guideMulti-point force slider
Technical Parameters
Performance Metrics
3,000 kN
Nominal Capacity
30 mm
Slide Stroke
51 kW
Total Power
Detailed Press Specifications
| Parameter | Value/Range |
|---|---|
| Force Points | 3 - 4 |
| Pressing Speed | 100 - 420 spm |
| Die Height | 420 - 620 mm |
| Accuracy Standard | JIS B6402 (特级) |
| Main Motor Power | 2x22 kW |
Operational Capabilities
Suitable Processes
- High-speed precision stamping
- Micron-level die clearance forming
- Continuous die riveting
- Hard material processing (0.2-0.35mm)
