Technical Specifications
Product Overview

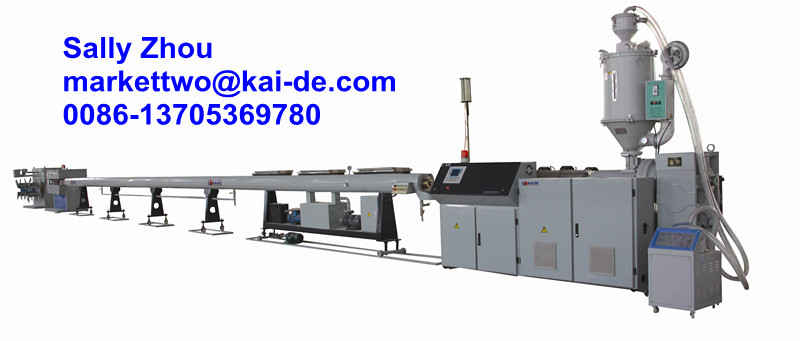

High-Speed PERT Tube Extrusion Line
This high-speed extrusion line is engineered for the efficient and precise manufacturing of PERT tubes. It features an advanced extruder with a notched barrel and shielded screw design to ensure high-speed, efficient processing. The system integrates a proprietary multi-sheet water immersion vacuum calibrating mandrel and a high-speed flat belt pulling machine, guaranteeing consistent tube quality and stable production across varying speeds. Controlled by a sophisticated PLC computer system, this line offers reliable, automated operation for high-volume production environments.
System Components
Line Configuration
- PE-RT Pipe Extruder
- Auto Loader
- Hot Air Dryer
- Die Head
- Vacuum Calibrating Cooling Stand
- Cooling Flume
- Pulling Machine
- Cutting Machine
- Stacker
- PLC Computer Control System
- Control System
- PLC Programmable Computer System
Technical Capabilities
Performance Metrics
1 Active
Constant Pressure Extrusion
1 Optimized
High-Speed Capability
- Extrusion Technology
- Notched BarrelWater Forced CoolingShielded ScrewSpiral Accumulator Die HeadPLC Control
