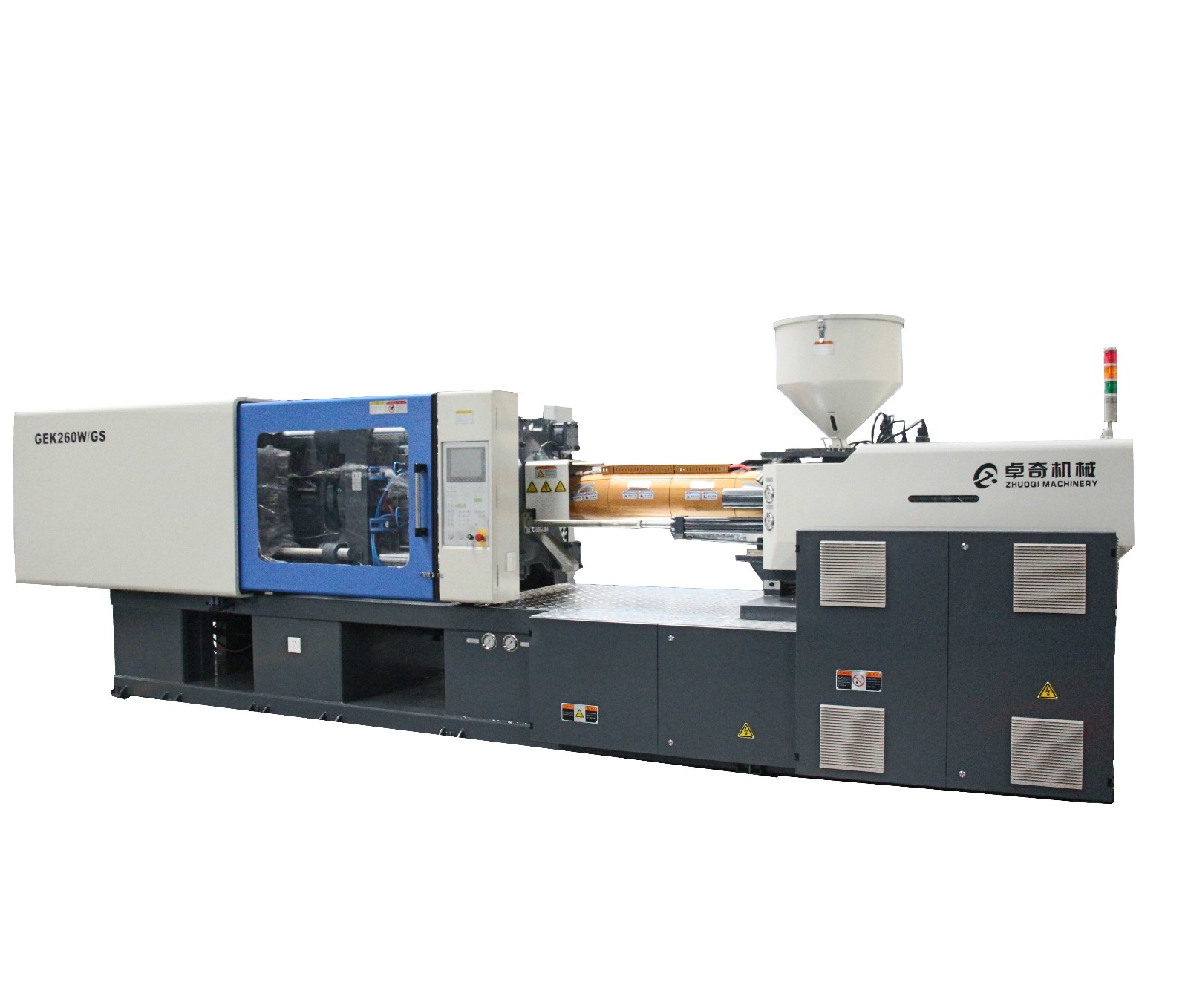

High Speed Injection Molding Machine for Thin-Wall Products
This high-speed injection molding machine is designed for PP thin-wall products. It is widely used in the packaging industry.
Technical Specifications
Overview
High-Speed Solution for Thin-Wall Packaging
The GEK series is a high-performance injection molding machine specifically engineered for the production of PP thin-wall products. It is widely utilized across the packaging industry, offering the speed and precision required for high-volume manufacturing. With a robust clamping force and optimized injection rates, this machine ensures consistent quality and short cycle times for intricate plastic components.
Key Performance Metrics
Key Performance Metrics
2,300 kN
Clamping Force
379 g/s
Injection Rate
170 MPa
Injection Pressure
275 g
Injection Weight (PP)
Injection Unit
- Screw Diameter
- 50 mm
- Theoretical Shot Volume
- 382 cm3
- Plasticizing Capacity (PP)
- 38 g/s
Clamping Unit
- Mold Stroke
- 490 mm
- Space Between Tie Bars
- 520 x 517 mm
- Mold Thickness (Max/Min)
- 550 mm / 200 mm
Ejector System
Ejector Specifications
| Parameter | Value |
|---|---|
| Ejector Stroke | 100 mm |
| Ejector Force | 62 kN |
| Number of Ejectors | 9 pcs |
Power & Dimensions
- Pump Motor Power
- 67 kW
- Heater Power
- 28.4 kW
- Machine Dimensions (LxWxH)
- 6.0 x 1.7 x 2.2 m
- Machine Weight
- 8.4 t
Applications
- Target Applications
- Thin-Wall PackagingPP ProductsAutomotive ComponentsElectronicsConsumer Goods
Technical Features
Mechanical Features
- High-performance screw and barrel assembly
- Advanced control system for precise parameter adjustment
- Energy-efficient components

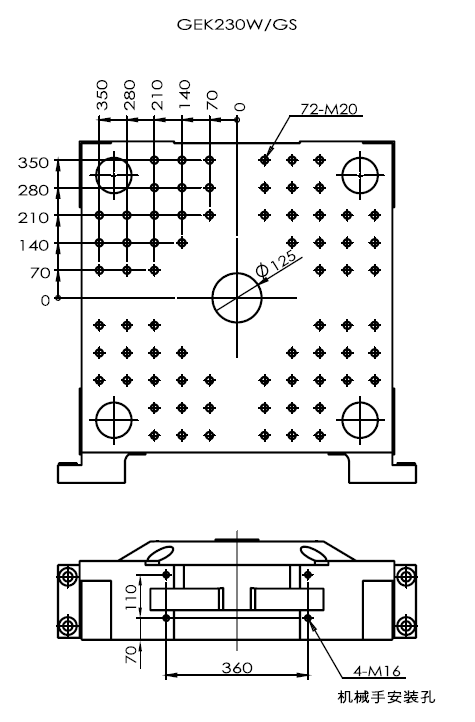

- Robotic arm installation interface (4-M16 mounting holes)
- 72-M20 threaded hole pattern for mold mounting
