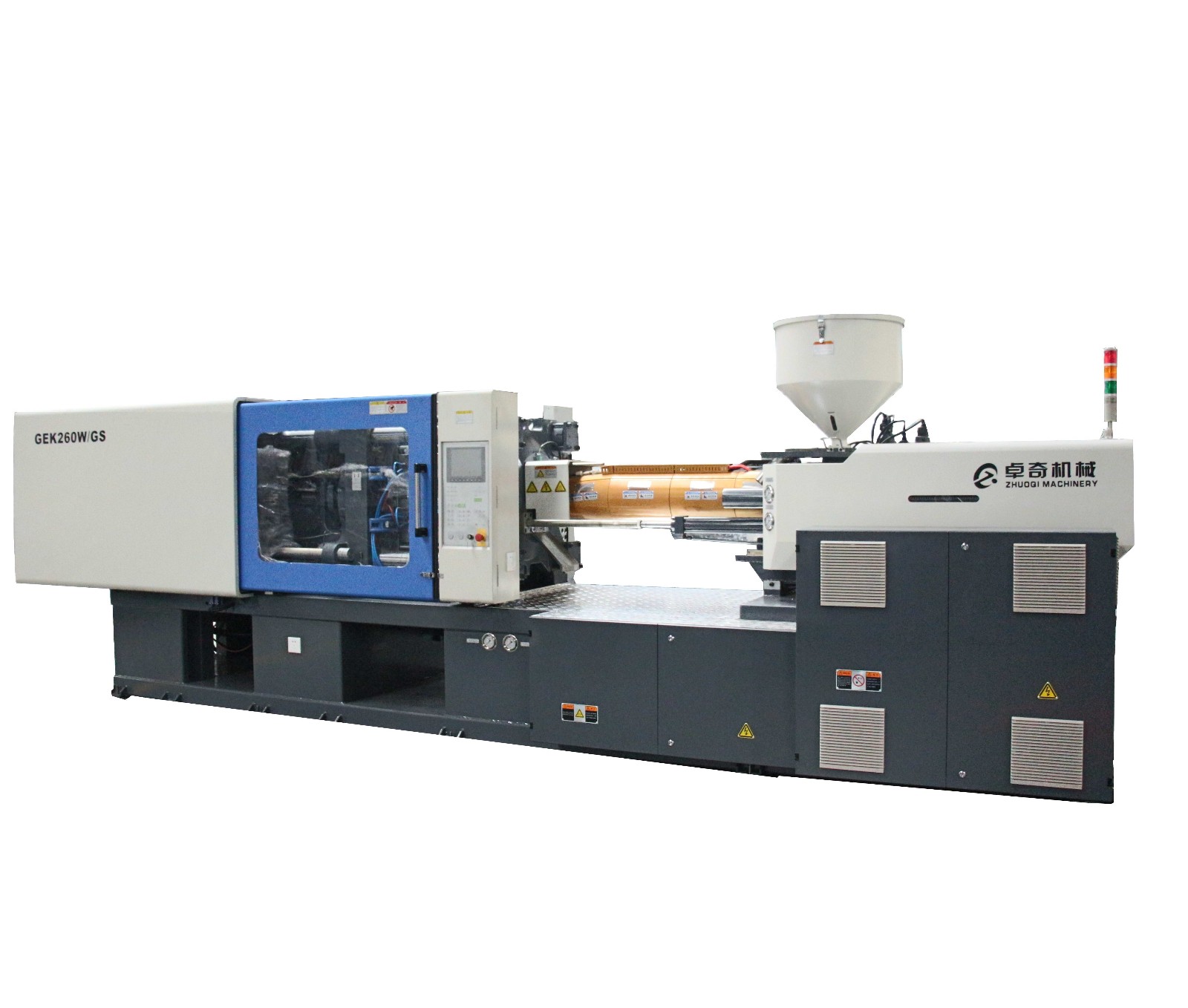

High Speed Injection Molding Machine for Thin-Wall Products
This high-speed injection molding machine is designed for producing thin-wall plastic products. It is widely used in the packaging industry for efficient production.

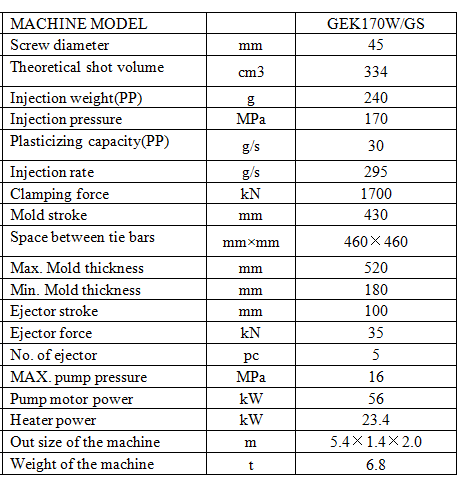

Technical Specifications
Overview
High-Performance Thin-Wall Injection Solution
The GEK series high-speed injection molding machine is specifically engineered for the production of PP thin-wall products, making it an ideal choice for the demanding packaging industry. Featuring a robust 170-ton clamping force and a high-performance injection unit, it ensures fast cycle times and consistent part quality. This machine combines precision control with energy-saving features to optimize high-volume manufacturing while minimizing operational costs.
Key Performance Metrics
Key Performance Metrics
1,700 kN
Clamping Force
295 g/s
Injection Rate
240 g
Injection Weight (PP)
56 kW
Pump Motor Power
Injection Unit
- Screw Diameter
- 45 mm
- Theoretical Shot Volume
- 334 cm3
- Injection Pressure
- 170 MPa
- Plasticizing Capacity (PP)
- 30 g/s
Clamping Unit
- Mold Stroke
- 430 mm
- Space Between Tie Bars
- 460 x 460 mm
- Mold Thickness (Max/Min)
- 520mm / 180mm
Ejector System
Ejector Specifications
| Parameter | Value |
|---|---|
| Ejector Stroke | 100 mm |
| Ejector Force | 35 kN |
| Number of Ejectors | 5 pc |
Power & Dimensions
- Maximum Pump Pressure
- 16 MPa
- Heater Power
- 23.4 kW
- Overall Dimensions (LxWxH)
- 5.4 x 1.4 x 2.0 m
- Machine Weight
- 6.8 t
Application
- Target Applications
- PP Thin-Wall ProductsPackaging IndustryHigh-Volume ManufacturingPrecision Plastic Components
