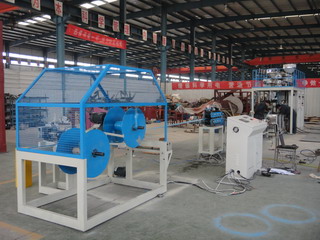

High-Speed Drip Irrigation Pipe Machine

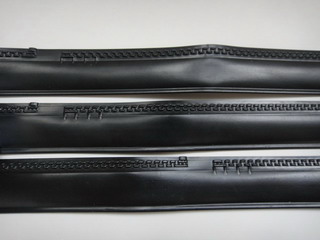

This machine produces drip irrigation pipes with a labyrinth structure at high speed. It features automatic control, cutting, and winding capabilities, and it can directly feed recycled material to reduce costs.
Technical Specifications
Overview
High-Efficiency Irrigation Pipe Production
The MD50-3H is a high-speed, single-blade labyrinth drip irrigation pipe machine engineered for maximum output and material efficiency. Featuring a three-layer A/B/A structure, it allows for up to 80% recycled material usage in the middle layer, significantly reducing production costs without compromising quality. With an automated four-station winder and continuous filter-net changing capabilities, the system ensures non-stop operation and requires minimal labor.
Performance Metrics
Production Speed
160 m/min
Minimum Speed
200 m/min
Maximum Speed
Power Consumption
85 kW
Total Power Limit
50 kW
Actual Operating Power
Technical Specifications
Pipe Dimensions
| Parameter | Range |
|---|---|
| Inner Diameter | 16-22 mm |
| Wall Thickness | 0.12-0.5 mm |
| Coil Length | 700-2000 m |
Dropper Specifications
- Intervals: 200mm, 300mm, 500mm
- Flow Capacity: 0.8-3.2 L/h
Machine Features
Key Features
3-Layer A/B/A StructureRecycled Material CompatibleAutomatic WinderNon-stop Filter ChangingHigh-Speed Output
Physical Attributes
- Dimensions (L x W x H)
- 25000 x 5000 x 4000 mm
- Total Weight
- 8000 kg
