High Speed CNC Drilling Machine
This high-speed drilling machine is designed for efficient and precise drilling operations. It features a robust construction, advanced CNC control system, and high-performance drilling spindle.
Technical Specifications
Overview

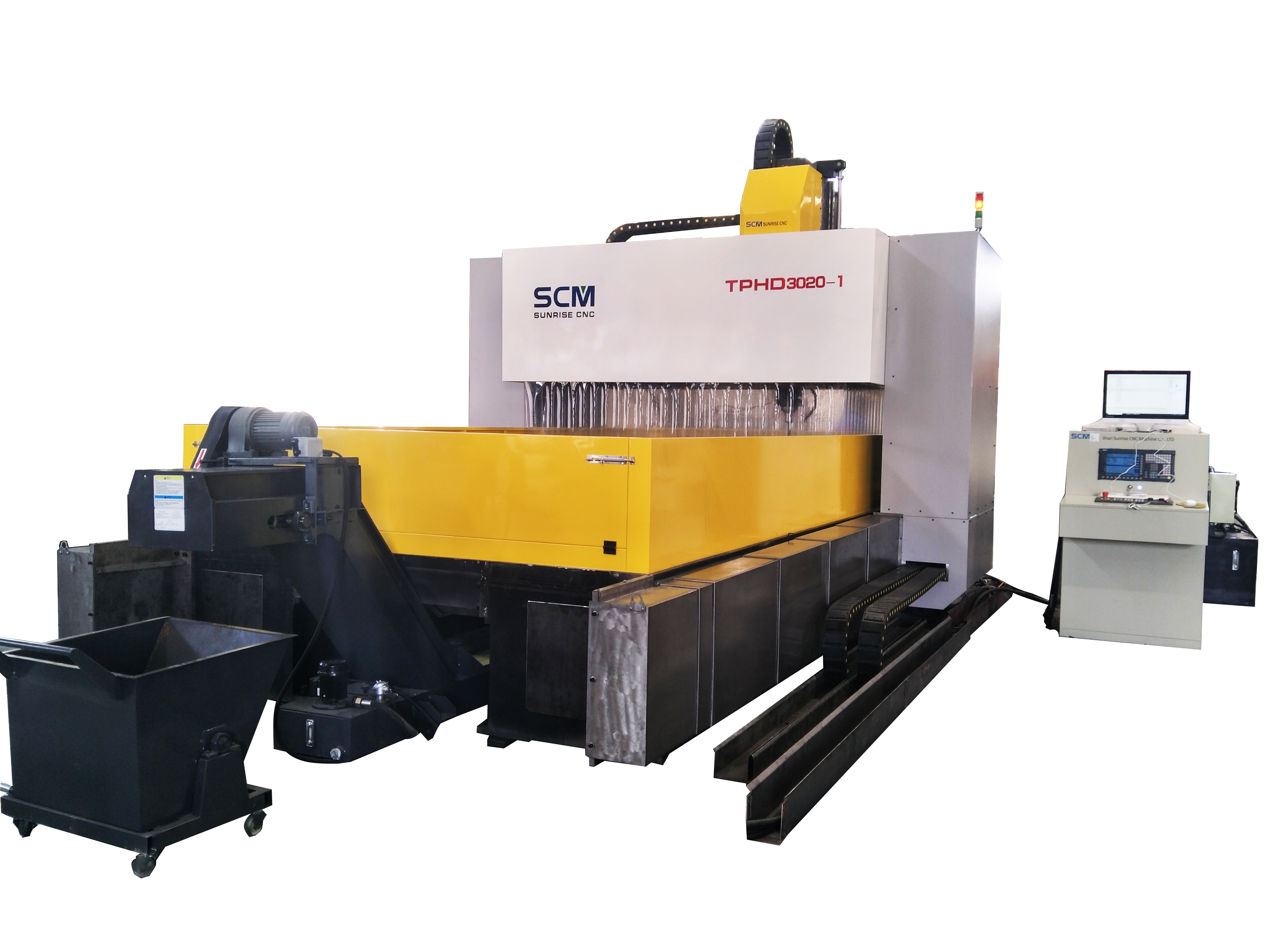

High-Speed CNC Gantry Drilling
This high-performance CNC drilling machine is engineered for precision metal processing, featuring a robust gantry structure driven by high-torque AC servo motors and precision ballscrew pairs. The machine offers advanced capabilities including automatic tool changing and integrated inner-cooling systems to ensure efficiency and high accuracy. Designed for industrial workflows, it provides reliable drilling performance with a user-friendly CNC control interface.
Operational Metrics
Performance Highlights
50 mm
Max Drilling Diameter
22 kW
Spindle Motor Power
3,000 r/min
Max Spindle Speed
Capacity & Dimensions
Work Capacity
| Parameter | Value |
|---|---|
| Max Work Size | 2500 x 2500 mm |
| Max Thickness | 250 mm |
| Overall Size | 7000 x 7000 x 3600 mm |
| Total Weight | 35 t |
System Controls
- Control & Automation
- SIEMENS / FAGOR CNC4-Axis ControlAutomatic Tool ChangerInner-cooling SystemPlate Chain Chip Conveyor
Accuracy
Precision Data
- Positioning accuracy (X/Y axis): <= 0.08 mm / Full length
- Repositioning accuracy (X/Y axis): <= 0.04 mm
