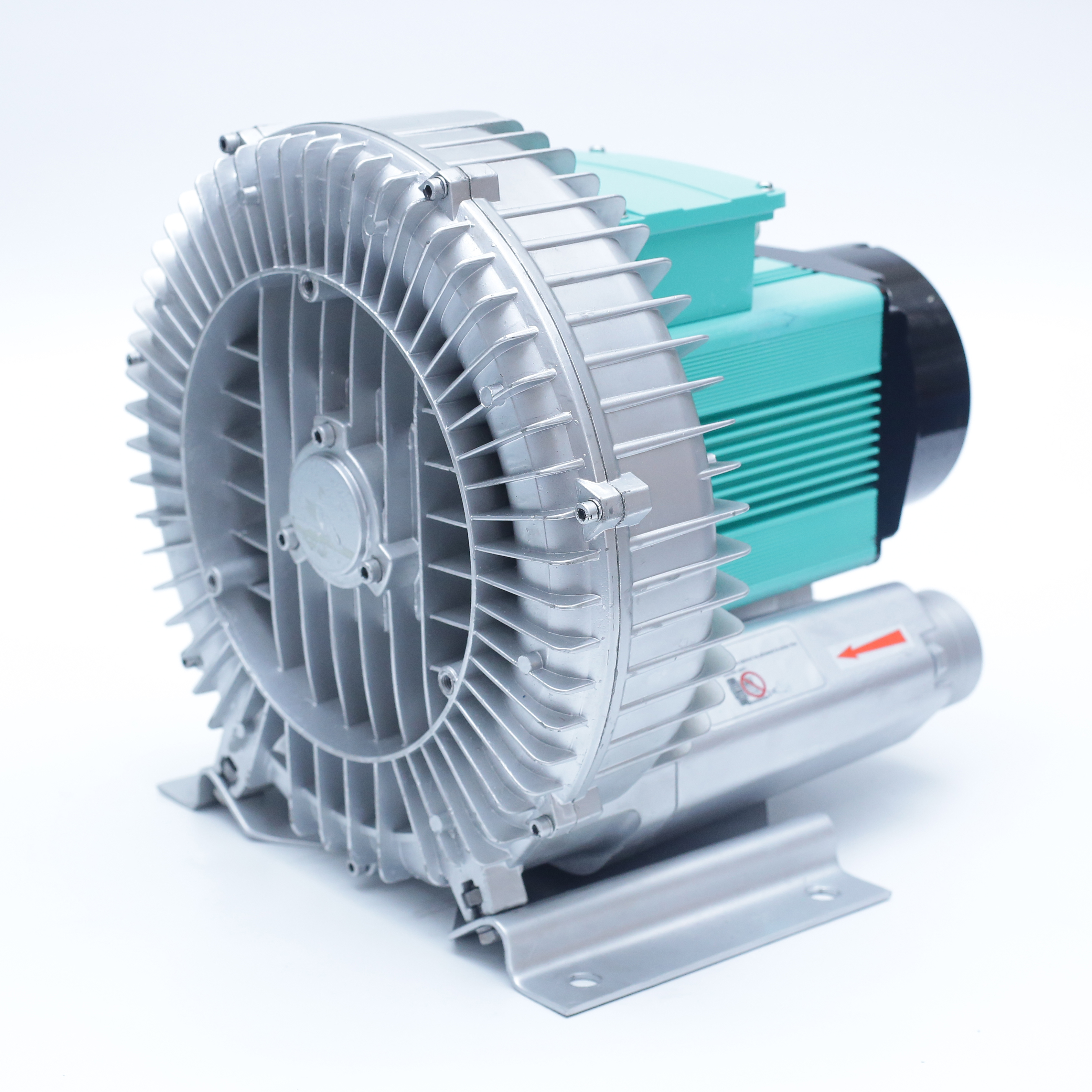

High Pressure Swirl Pump with Permanent Magnet Motor
This high-pressure swirl pump is equipped with a permanent magnet motor for enhanced efficiency. Its robust design includes a radially finned aluminum housing, ensuring optimal heat dissipation and reliable performance in various industrial and commercial applications.
Technical Specifications
Product Overview
High-Pressure Swirl Pump Performance
This high-pressure swirl pump is engineered for demanding industrial and commercial applications, featuring a permanent magnet motor for superior efficiency. Designed with a non-contact compression system and oil-free lubrication, it ensures pure air output and long-term operational reliability. The robust construction, including a radially finned aluminum housing, provides excellent heat dissipation for continuous, heavy-duty use.
Performance Metrics
Core Performance
180 m³/h
Flow Rate
28 KPa
Positive Pressure
23 KPa
Negative Pressure
1.1 kW
Power Consumption
Technical Specifications
Technical Data
| Feature | Specification |
|---|---|
| Model | XGB-1100 |
| Operating Voltage | 220V |
| Frequency Compatibility | 50Hz / 60Hz |
| Protection Class | IP55 |
| Insulation Grade | B |
Design & Construction
- Centrifugal circulation design
- Oil-free lubrication
- Non-contact compression
- Radially finned aluminum housing
- Impellers mounted directly on motor shaft
