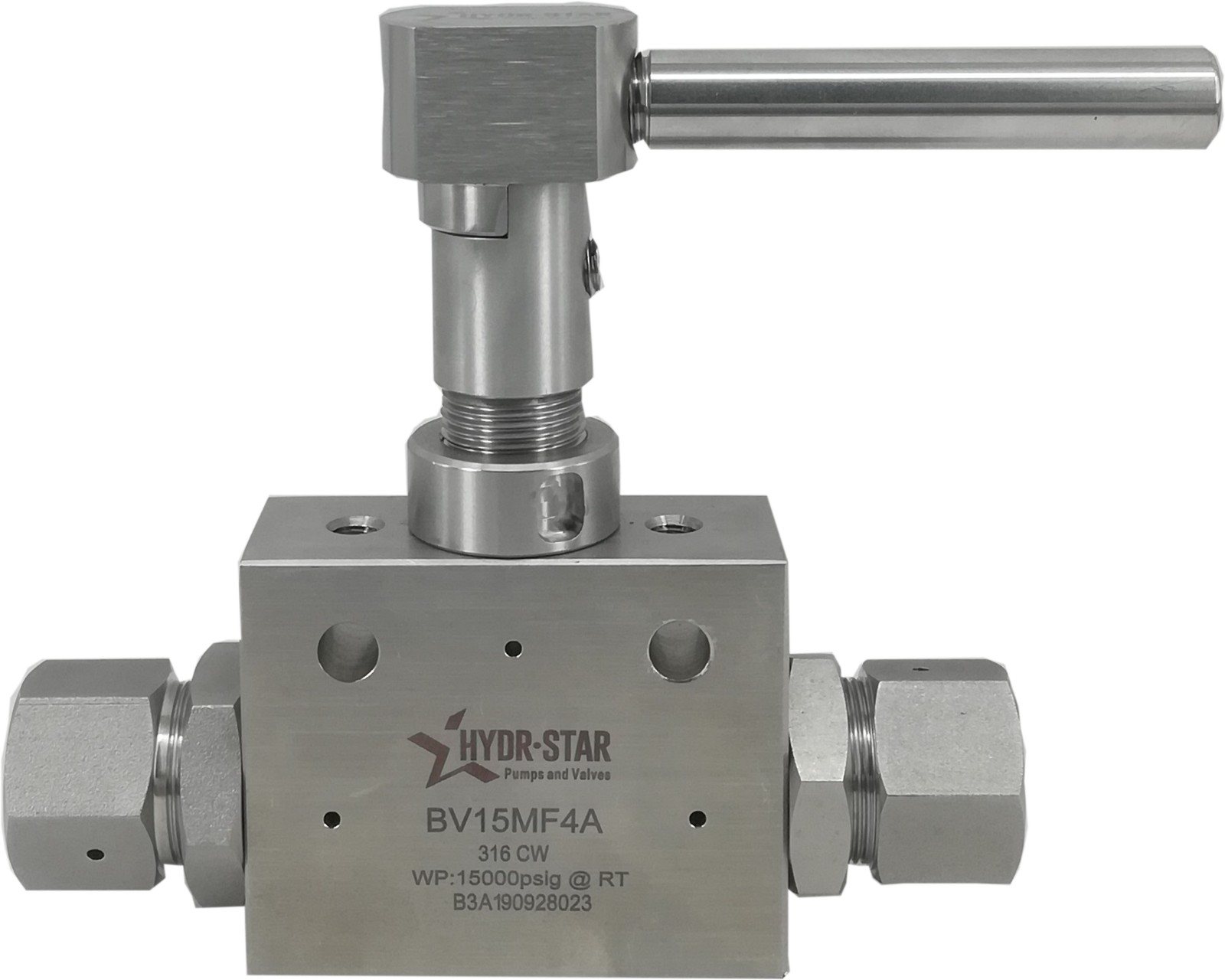

High-Pressure Stainless Steel Ball Valve
This high-pressure ball valve features a 316 cold-work stainless steel body. The one-piece, trunnion mounted stem design reduces the effects of side loading.
Technical Specifications
Overview
High-Performance Fluid Control
This high-pressure stainless steel ball valve is engineered for demanding industrial applications requiring reliable fluid control and zero leakage. Constructed from 316 cold-work stainless steel, it features a trunnion-mounted stem design to reduce side loading and extend service life. With pressure ratings up to 20,000 psig and versatile mounting options, it provides a robust solution for high-tensile hydraulic and pneumatic systems.
Core Performance
Working Pressure
15,000 psig
Low Pressure Rating
20,000 psig
Medium Pressure Rating
- Operating Temperature
- -40°F to 250°F (-40°C to 120°C) with standard Buna N seals
Material Specifications
- Body Material
- 316 Cold-work Stainless Steel
- Seat Material
- PEEK soft seat for zero leakage
- Available Seals
- Buna NCustom Options Available
Design & Construction
Body Patterns
- 2-way Straight
- 3-way 180°
Mounting Features
- Integral through-holes for bracket mounting
- Panel mounting available
- Stem Design
- One-piece, trunnion mounted
Technical Parameters
Configuration Details

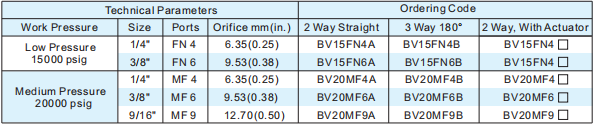

| Pressure Level | Size | Ports | Orifice (mm) |
|---|---|---|---|
| 15000 psig | 1/4" | FN 4 | 6.35 |
| 15000 psig | 3/8" | FN 6 | 9.53 |
| 20000 psig | 1/4" | MF 4 | 6.35 |
| 20000 psig | 3/8" | MF 6 | 9.53 |
| 20000 psig | 9/16" | MF 9 | 12.7 |
Actuation
- Actuation Options
- Yes
- Actuator Type
- Pneumatic actuator options available for 2-way valves
