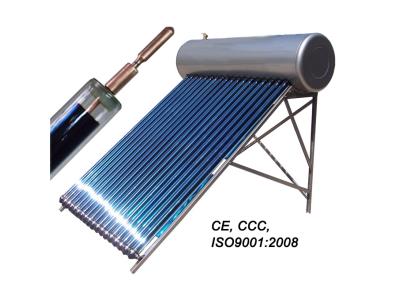

High Pressure Solar Water Heater with Heat Pipe Tubes
This high-pressure solar water heater uses heat pipe solar tubes for efficient heat transfer. It maintains high thermal performance even in winter, with heat collecting efficiency significantly above common solar systems.
Technical Specifications
Overview
High-Efficiency Pressurized Solar Heating
This compact, high-pressure solar water heater utilizes advanced heat pipe technology to deliver rapid and reliable hot water, even in low-radiation or cloudy conditions. Designed for durability and performance, the system operates effectively in temperatures as low as -30°C, preventing freezing and water scale buildup. With a maximum pressure capacity of 0.6 MPa, it integrates seamlessly with standard water supply systems for a consistent, high-pressure washing experience.
Performance & Efficiency
Heat Collecting Efficiency
55 %
Thermal Exchange Rate
20 %
Efficiency Gain vs Common Systems
Operating Conditions
- Minimum operating temperature: -30°C
- Maximum system pressure: 0.6 MPa
- Suitable for mains pressure water up to 6 bar
Technical Construction
Material Specifications
| Component | Material |
|---|---|
| Inner Tank | 1.2mm SUS304 Stainless Steel (Optional SUS316L) |
| Outer Tank | SUS304 Stainless Steel or Powder Coated Color Steel |
| Vacuum Tube | Borosilicate Glass 3.3 with AL-SS-CU coating |
| Frame | 1.2mm Stainless Steel |
| Insulation | 55mm Polyurethane |
| Seals | Stabilized High Temperature Silicon |
Certifications
Compliance & Standards
CECCCISO 9001:2008
