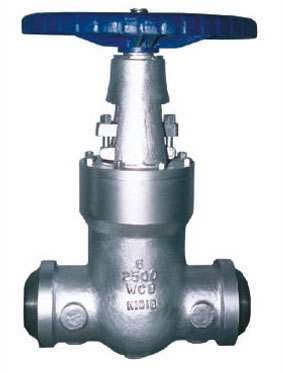

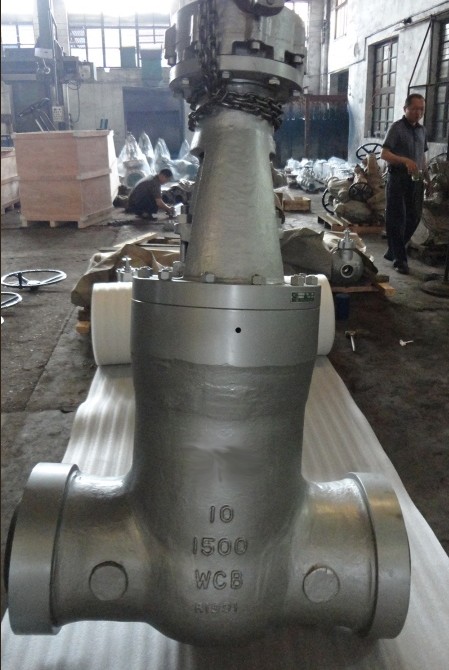

High Pressure Globe Valve with Pressure Seal Bonnet
This high-pressure globe valve is engineered for demanding industrial applications. The pressure seal bonnet ensures enhanced leak tightness under high pressures and temperatures.
Technical Specifications
Product Overview
High-Performance Pressure Seal Globe Valve
This high-pressure globe valve is engineered for demanding industrial environments, including oil, chemical, fertilizer, and power generation sectors. Featuring a robust pressure seal bonnet design, it ensures superior leak tightness and reliability under extreme pressures and temperatures. The valve is built with a flexible wedge design for easy sealing and wear compensation, utilizing hardened alloy overlays to extend service life.
Technical Standards
Design Standards
| Category | Applicable Standards |
|---|---|
| Design | API 600, BS1414, DIN3352 |
| Face to Face | ASME B16.10, EN 558, DIN3202 |
| End Flange | ASME B16.5, ASME B16.47, DIN2533 |
| Buttwelding | ASME B16.25, DIN3239 |
| Inspection | API 598, DIN3230 |
Performance Specifications
- Size Range
- 2" ~ 60" (DN50 ~ DN1500)
- Pressure Rating
- ANSI 150lb ~ 2500lb
Materials & Construction
Key Design Features
- Full port design
- OS&Y (Outside and Screw)
- Pressure Seal Bonnet
- Flexible wedge (Solid or split)
- Renewable or welded seat
- Extended stem for low temperature
- Body Materials
- Carbon SteelStainless SteelAlloy SteelDuplex Steel
Operation & Control
Operation Methods
HandwheelGearElectricPneumaticHydraulic
