High-Pressure 4-Inch Diesel Water Pump
This 4-inch high-pressure water pump is powered by a diesel engine. It is designed for demanding applications, including irrigation, construction, and emergency water transfer.
Technical Specifications
Overview
High-Pressure Diesel Water Pump

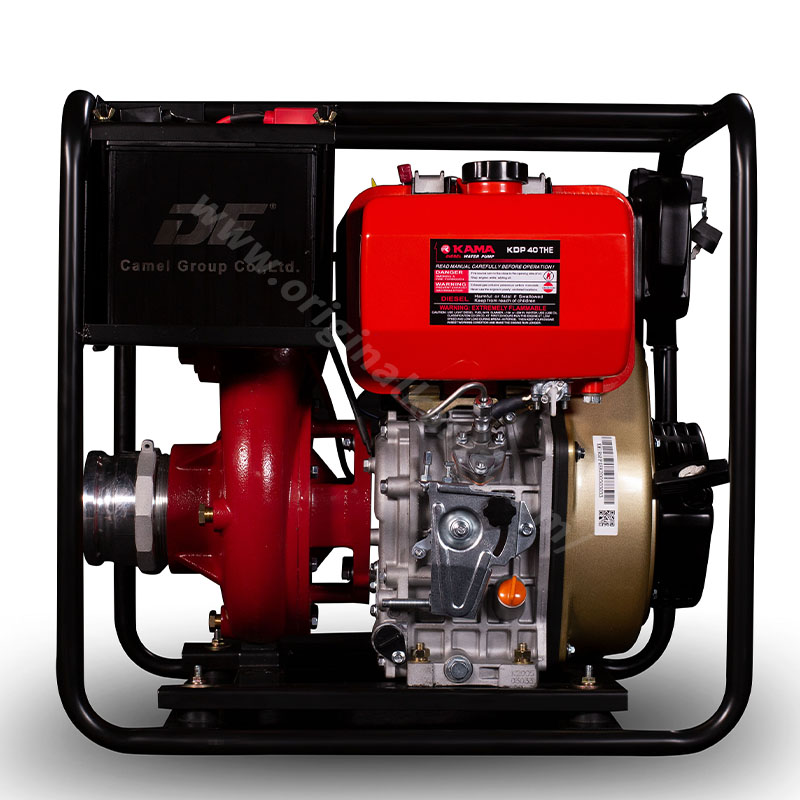

This high-pressure 4-inch diesel water pump is engineered for demanding applications, including irrigation, construction, and emergency water transfer. Featuring a robust cast-iron construction and a powerful direct-injection air-cooled diesel engine, it delivers efficient performance and reliable operation. Its compact, lightweight design includes quick-change joints for easy setup, while advanced combustion technology ensures low fuel consumption and reduced emissions.

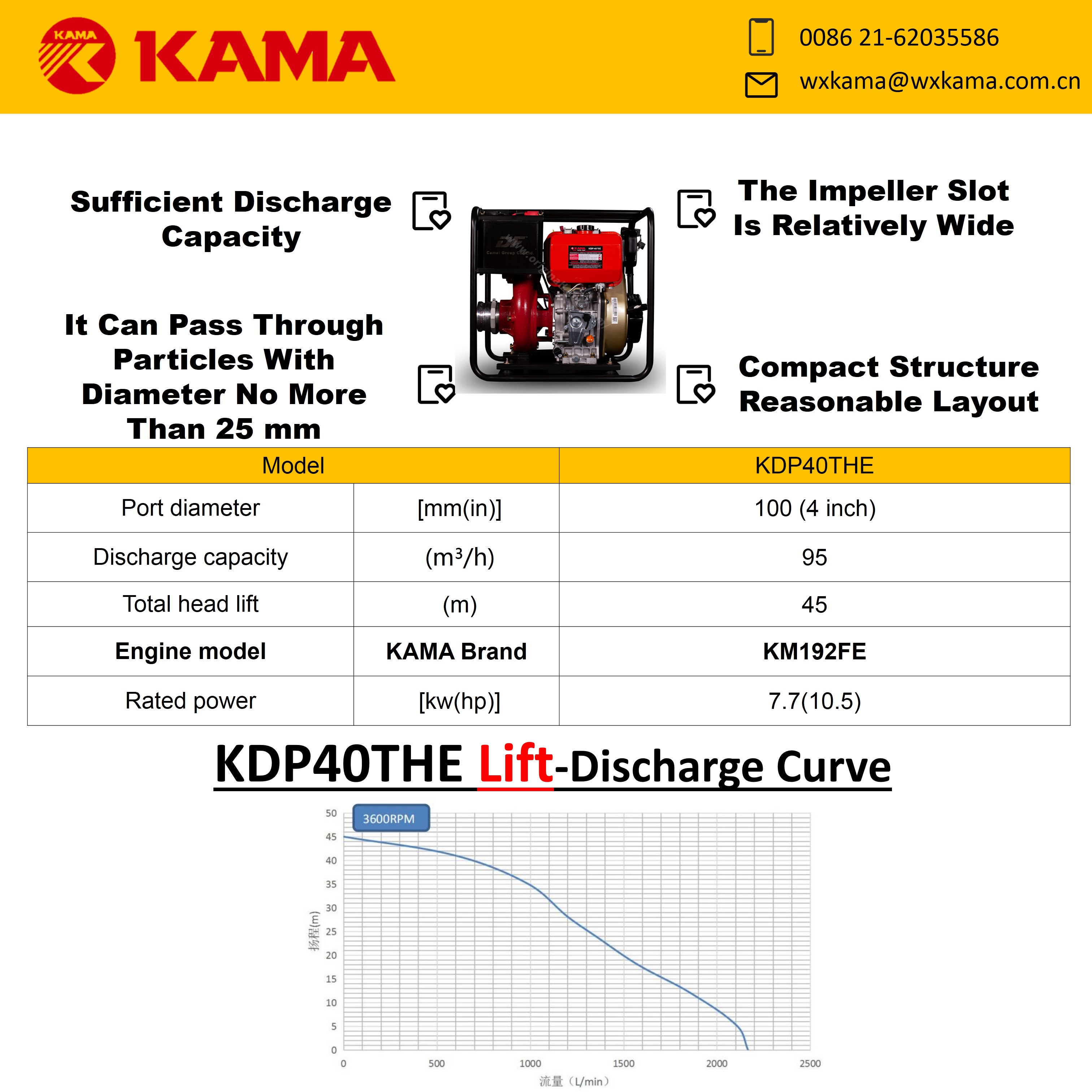

Performance Metrics
Key Performance Indicators
95 m³/h
Discharge Capacity
45 m
Total Head Lift
10.5 hp
Rated Power
Technical Specifications
- Port Diameter
- 100 mm
- Max Particle Diameter
- 25 mm
- Rated Power
- 7.7 kW
- Machine Weight
- 88 kg
- Self-Priming Time
- 120 s
Features
Key Advantages
- High fuel efficiency with direct injection engine
- Quick-change inlet and outlet joints
- Electric starting device for easy operation
- Reinforced cast-iron pump housing
- Maintenance-free aluminum alloy pump body
- Compact and lightweight design
Compliance & Safety
- Certifications
- CE
