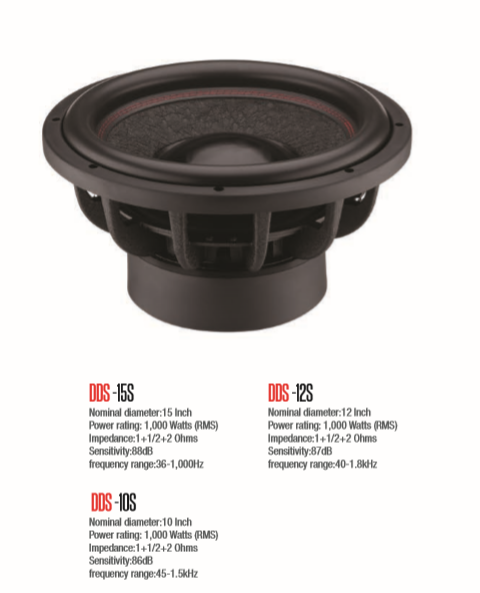

High-Power Professional Audio Loudspeaker
Professional audio loudspeaker designed for high-power applications. It is available in three sizes: 15-inch, 12-inch, and 10-inch.
Technical Specifications
Product Overview
High-Power Professional Audio Loudspeaker
This high-performance loudspeaker is engineered for both elegance and exceptional performance in demanding professional audio applications. Featuring a heavy-duty die-cast aluminum basket and high-strength ferrite magnets, it delivers clear, powerful sound with deep bass and crisp highs. The precision-engineered components, including a glass fiber cone and optimized ventilation, ensure accurate sound reproduction and reliable thermal management.
Technical Specifications
Featured Performance Metrics
1,000 W
Power Rating (RMS)
- Voice Coil Configuration
- 2.5 inch BASV 4-layer
- Magnet Strength
- 140 Oz
Model Comparison
Available Models
| Model | Diameter | Sensitivity | Frequency Range |
|---|---|---|---|
| DDS-15S | 15 Inch | 88dB | 36-1,000Hz |
| DDS-12S | 12 Inch | 87dB | 40-1.8kHz |
| DDS-10S | 10 Inch | 86dB | 45-1.5kHz |
Construction
- Key Components
- Die cast aluminum basketGlass fiber coneDual Push terminalConex Spider SuspensionRubber gasket
