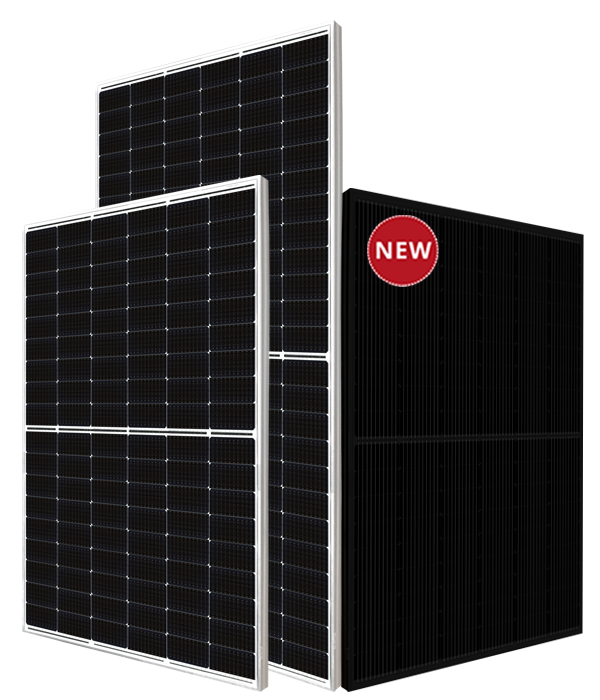

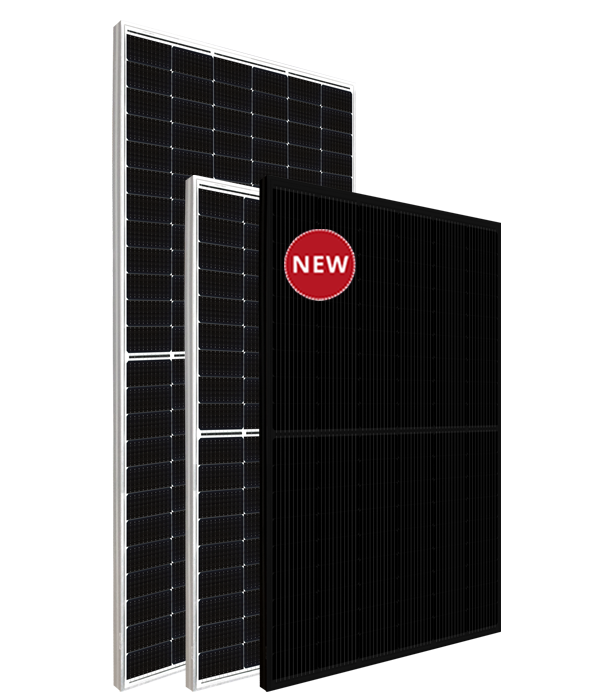

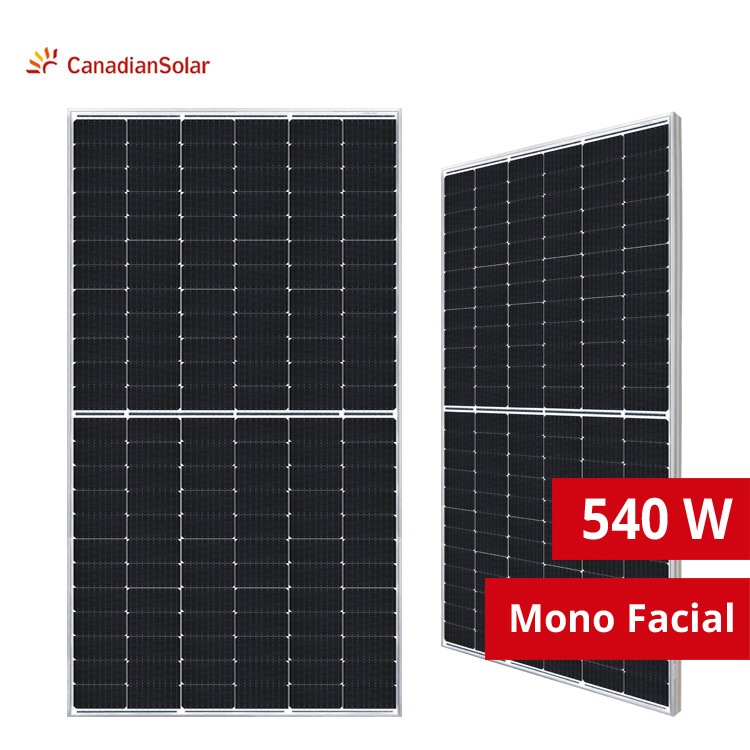

High Power Monocrystalline PERC Solar Module
This high-power dual cell PERC module has a power range of 400~420 W in CS6R model and 530~555 W in CS6W model. The module achieves efficiency up to 21.6 % and provides 2.7% more energy yield in its lifetime.
Technical Specifications
Overview
High-Efficiency Monocrystalline PERC Solar Module
This high-power dual-cell PERC module is engineered for superior energy yield and reliability in both commercial and utility-scale applications. Featuring advanced cell technology, the module delivers high power output and enhanced efficiency, significantly reducing LCOE and system costs. Its robust design, including IP68 split junction boxes and crossbar-enhanced frames, ensures durability and optimal performance even in challenging environmental conditions.
Key Performance Metrics
Performance Highlights
555 W
Max Power Output
21.6 %
Module Efficiency
4.5 %
LCOE Reduction
Mechanical Data
- Cell Type
- Mono-crystalline
- Cell Arrangement
- 144 cells
- Dimensions
- 2261 x 1134 x 35 mm
- Weight
- 27.8 kg
- Frame Material
- Anodized aluminium alloy, crossbar enhanced
Electrical Data
Fire Performance
Class C
- Operating Temperature
- -40°C ~ +85°C
- Max System Voltage
- 1500V / 1000V
- Max Series Fuse Rating
- 25 A
Features
- Key Technologies
- PERCLID MitigationLeTID MitigationIP68 Split Junction Box
