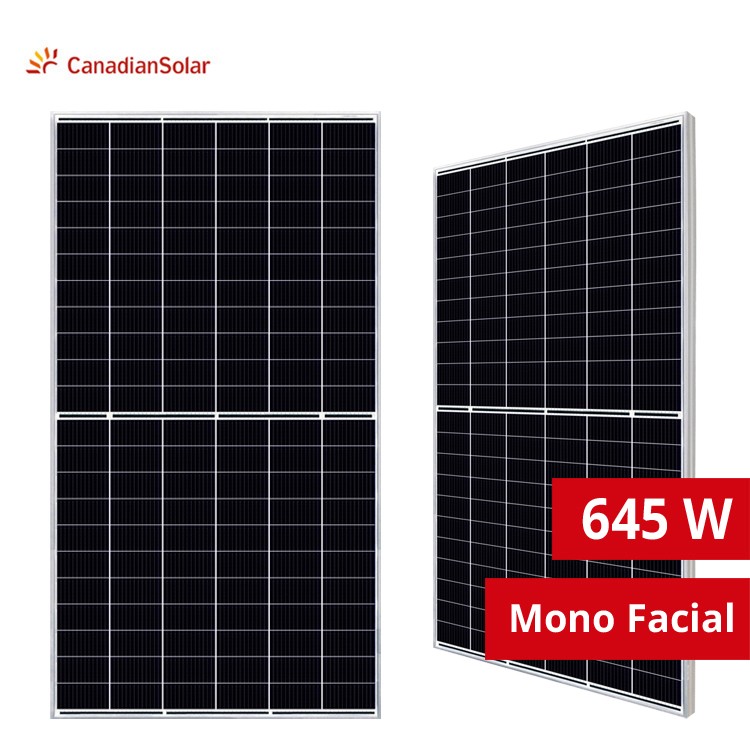

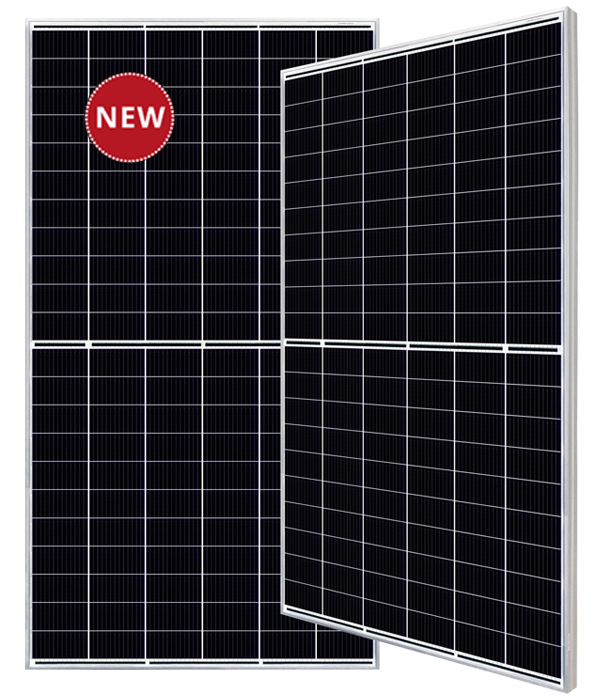

High Power Mono PERC Solar Module
This high-power dual cell PERC module has power ranges from 640-670 W and 580-610 W. The module achieves efficiency up to 21.6 % and reduces BOS and LCOE costs.
Technical Specifications
Overview

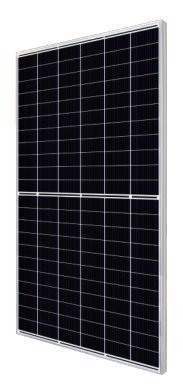

High Power Mono PERC Solar Module
This high-efficiency solar module utilizes advanced Mono PERC technology to maximize energy conversion, offering a power range of 580W to 670W. Designed for utility-scale and commercial applications, it features robust construction to withstand harsh environmental conditions while delivering superior performance. The module incorporates split junction boxes for better heat dissipation and optimized cable lengths to reduce energy loss, ensuring a lower LCOE and BOS cost.
Key Features
Performance Highlights
21.6 %
Max Efficiency
670 W
Max Power
3.5 %
LCOE Reduction
- Key Advantages
- Lower BOS CostLower LCOELID/LeTID MitigationBetter Shading ToleranceIP68 Junction Box
Mechanical Data
- Cell Type
- Mono-crystalline
- Cell Arrangement
- 132 [2 x (11 x 6)]
- Dimensions
- 2384 x 1303 x 35 mm
- Weight
- 34.4 kg
- Glass Specification
- 3.2 mm tempered glass
Electrical Data
Module Fire Performance
CLASS C
- Operating Temperature
- -40°C ~ +85°C
- Max System Voltage
- 1500V / 1000V
- Max Series Fuse Rating
- 30 A
- Application Classification
- Class A
