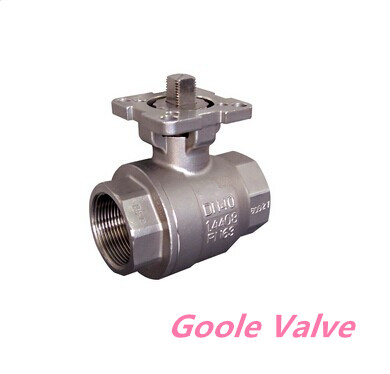

High Platform Threaded Ball Valve
This two-piece ball valve is designed with a high platform and threaded connections for secure installation. It is suitable for cutoff and adjustment applications.
Technical Specifications
Product Overview
High-Performance Ball Valve Design
This two-piece high platform threaded ball valve is engineered for both cutoff and flow adjustment applications, featuring an integrated high platform for seamless actuator connection. The design prioritizes a compact structure and lightweight profile without compromising on durability, ensuring stable and reliable operation. Its robust construction makes it an ideal solution for managing oil, water, gas, and various corrosive liquids in demanding industrial environments.
Technical Specifications
- Nominal Diameter
- 1/4" - 4"
- Pressure Range
- 1.6Mpa - 6.4Mpa
- Temperature Range
- -20℃ - 232℃
- Material Composition
- Carbon SteelStainless SteelBrass
- Driving Means
- ElectricPneumaticHandle
Key Performance Metrics
Performance Highlights
232 ℃
Max Temperature
6.4 Mpa
Max Pressure
Features
Key Features
- High platform design for convenient actuator disassembly
- Full bore construction for high flow and low resistance
- High-pressure and high-temperature resistance
- Compact, lightweight, and energy-efficient
- Reliable shutoff with no blocking slag
Applicable Media
Compatible Media
OilWaterGasCorrosive Liquids
