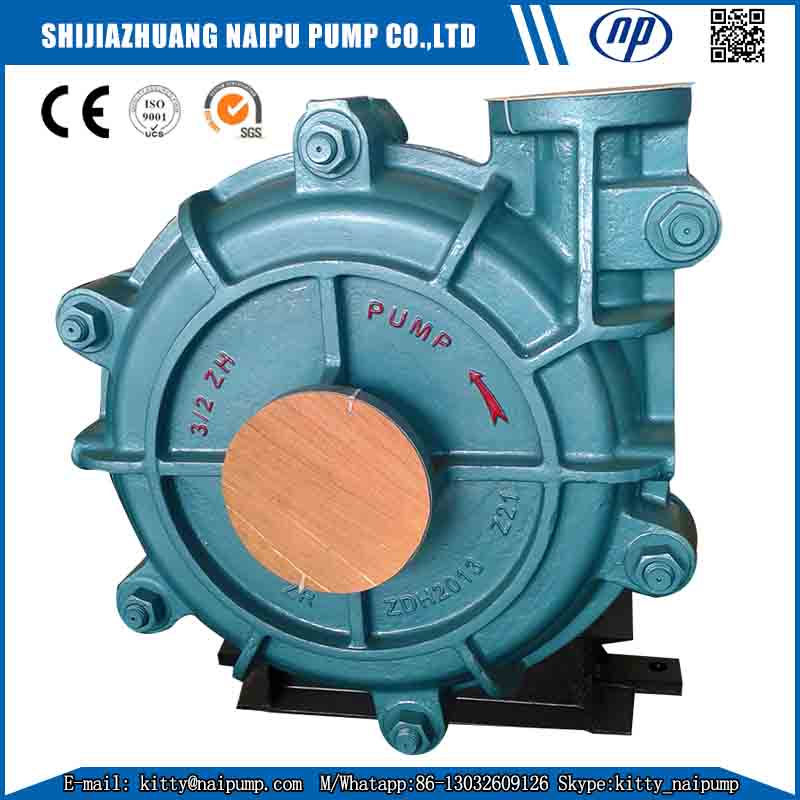

High Head Slurry Pump with Chrome Alloy Liner
This slurry pump is designed to produce high heads per stage at high pressures. It is capable of handling medium-size particles and pumping at heads in excess of 90 meters per stage.
Technical Specifications
Overview
High-Pressure Slurry Transport Solution
The HH series is engineered to deliver high heads per stage at high pressures, making it an ideal choice for long-distance transport lines. These pumps are capable of handling medium-sized particles and can achieve heads exceeding 90 meters per stage, often replacing the need for multiple pumps in series. Constructed with a high chrome alloy liner, they provide exceptional resistance to abrasion and corrosion in demanding industrial environments.
Key Performance Metrics
Featured Performance
90 m
Max Head per Stage
560 kW
Max Power
1,008 m³/hr
Max Capacity
Technical Specifications
- Discharge Size
- 2 inch
- Suction Size
- 3 inch
- Liner Material
- High Chrome Alloy
Applications
Typical Applications
- Tailings Delivery
- Cyclone Feed
- Diamond Concentrate
- Slag Granulation
- Bottom Boiler and Fly Ash
- Mill Discharge
Performance Data
Performance Parameters by Model
| Model Type | Max Power (kW) | Capacity (m³/hr) | Head (m) | Speed (rpm) | Impeller Dia. (mm) |
|---|---|---|---|---|---|
| 1.5X1C-NP-HH | 30 | 16.2--34.2 | 25-92 | 1400--2200 | 330 |
| 3X2D-NP-HH | 60 | 68.4--136.8 | 25-87 | 850--1400 | 457 |
| 4X3E-NP-HH | 120 | 126-252 | 12-97 | 600-1400 | 508 |
| 6X4F-NP-HH | 560 | 324-720 | 30-118 | 600-1000 | 711 |
| 8X6S-NP-HH | 560 | 468-1008 | 20-94 | 500--1000 | 711 |
Compliance & Quality
Certifications
CEISO 9001SGS
