High Frequency Pipe Welding Line
This high-frequency pipe welding line produces steel pipes in diverse specifications and shapes, including round, square, and specialized forms. The production line features high performance, reduced energy consumption, enhanced reliability, and exceptional welding quality.
Technical Specifications
Product Overview
High Frequency Welding Pipe Production Line
This high-frequency welding pipe production line is engineered for custom design and fabrication of various steel pipe shapes, including round, square, and special profiles. Designed for industrial efficiency, the system offers high performance, reduced energy consumption, and enhanced reliability. It ensures superior welding quality and safety, making it an ideal solution for continuous, heavy-duty pipe manufacturing.
Technical Specifications
Model Specifications
| Model | Pipe Diameter (mm) | Thickness (mm) | Speed (m/min) | Total Power (kw) |
|---|---|---|---|---|
| HIM-HP-20 | Ø8-Ø20 | 0.5-1.5 | 20-80 | 80 |
| HIM-HP-76 | Ø20-Ø76 | 1.0-3.5 | 20-80 | 330 |
| HIM-HP-165 | Ø60-Ø165 | 2.0-6.0 | 20-70 | 670 |
| HIM-HP-219 | Ø76-Ø219 | 2.0-8.0 | 10-60 | 1,000 |
| HIM-HP-325 | Ø114-Ø325 | 3.0-10.0 | 10-50 | 1,300 |
| HIM-HP-406 | Ø165-Ø406 | 3.0-12.5 | 10-40 | 1,550 |
| HIM-HP-508 | Ø219-Ø508 | 6.0-16.0 | 8-30 | 2,000 |
| HIM-HP-610 | Ø325-Ø610 | 6.0-19.0 | 8-30 | 2,300 |
System Components
Integrated Equipment
- Uncoiler
- Straightener
- Flattener
- Cutter and Butt welder

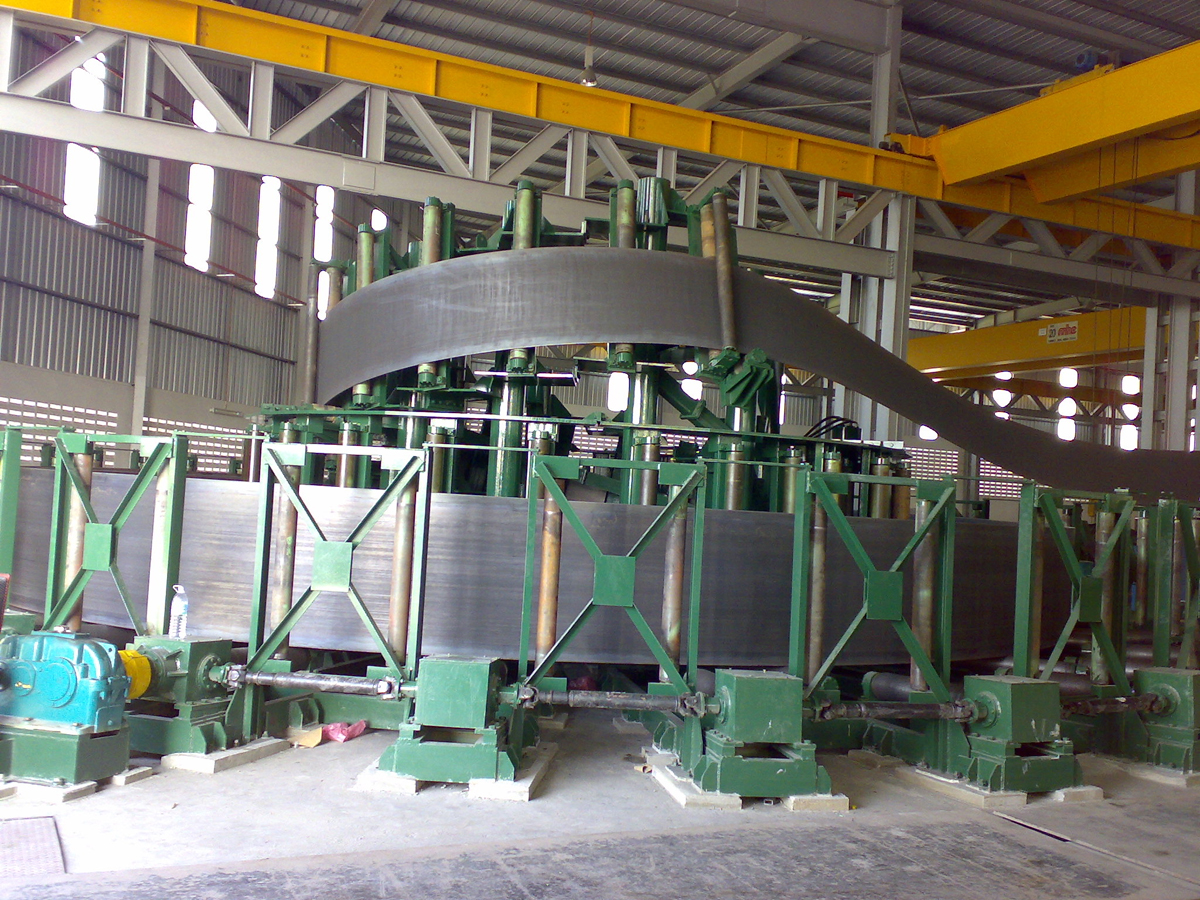

- Accumulator
- Forming and Sizing Equipment
- Welding Equipment
- Cooling and Sizing System
- Fixed Length Saw Machine
- Receiving Table
- Nondestructive Detector
- Hydrostatic Testing Machine
- Packing Equipment
- High Frequency DC Drag
- Hydraulic System
- Electric Appliance
Product Features
- Supported Pipe Shapes
- Round TubeSquare TubeSpecial Shape Tube
