High Frequency Pipe Production Machine
This high-frequency pipe production machine is engineered for efficient and precise pipe manufacturing. Its robust construction includes multiple forming stations and a high-frequency welding system to ensure strong, reliable seams.
Technical Specifications
Overview
High-Efficiency Pipe Production

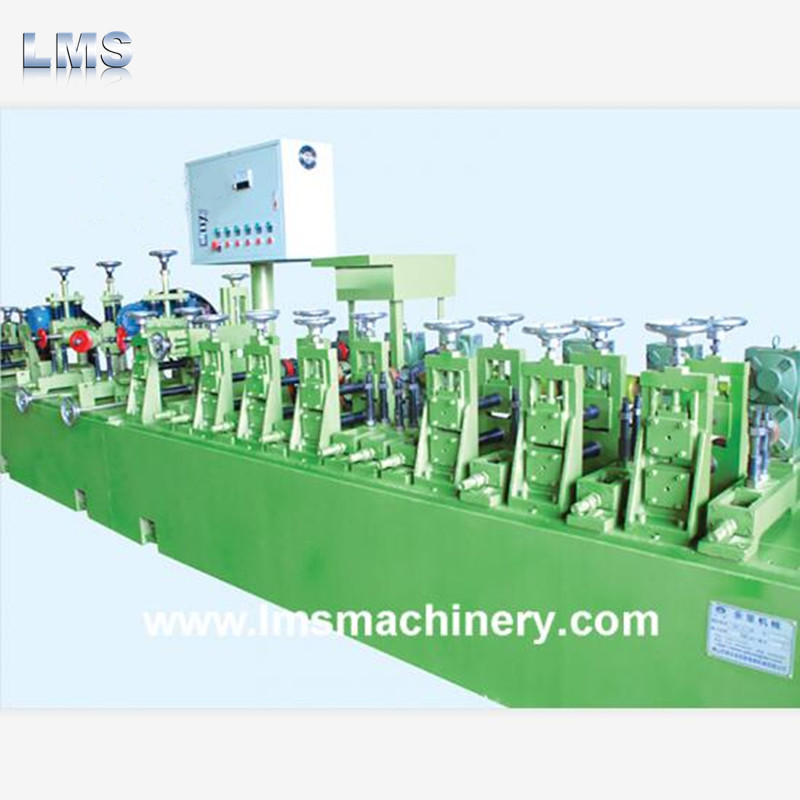

The HG114 High Frequency Pipe Making Machine is engineered for the efficient and precise production of industrial pipes. It features a robust multi-station forming system with adjustable rollers to ensure accurate shaping and high-frequency induction welding for reliable, consistent seams. Designed for high-volume manufacturing, this system integrates advanced controls and a CNC flying saw for streamlined, automated operation.
Forming Stations
Forming Station Configuration
| Component | Quantity | Material/Specs |
|---|---|---|
| Horizontal Roller Station | 7 sets | Shaft: 100mm (40Cr), Roller: 45# steel |
| Vertical Roller Station | 9 sets | Shaft: 60mm (40Cr), Roller: 45# steel |
| Drive Gear Box | 7 sets | Gear: 40CrMnTi/40Cr, Shaft: 40Cr |
System Components
Integrated Systems
- Hydraulic Decoiler
- Cage Accumulator
- Feeding & Flattening Unit
- Extruding and Scrap Collecting
- Burr-cleaning Device
- Sizing Device
- Straightening Device
- HF Welding Station
- Main Driving System
- CNC Flying Saw
- Transmission Shafts
- 14 units
