Technical Specifications
Product Overview

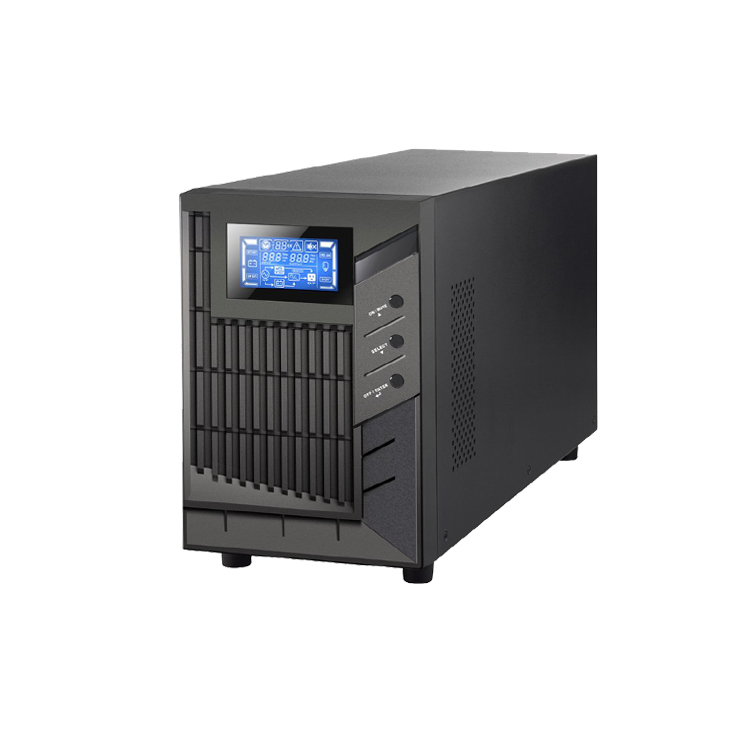

High-Frequency UPS Solution
This high-frequency uninterruptible power supply (UPS) inverter is designed to provide reliable, stable power backup for critical electronic systems. By converting DC battery power into commercial-grade AC power, it ensures continuous operation for sensitive equipment such as computer networks, solenoid valves, and pressure transmitters. The system features advanced inverter technology that supports both online and offline operation modes, offering versatile protection against power outages and voltage fluctuations.
Electrical Ratings
Capacity
1,200 VA
Apparent Power
960 W
Active Power
Input Specifications
- Voltage: 220/230/240Vac
- Frequency: 50/60Hz
- Current: 6.5A
Output Specifications
- Voltage: 220/230/240Vac
- Frequency: 50/60Hz
- Current: 4.3A
Interface & Control
Display Parameters
VoltageCurrentBattery Status
- Front Panel Controls
- ON/MUTESELECTOFF/ENTER
Technical Details
Operating Modes
- Online Mode
- Offline Mode
- Battery Compatibility
- Lead-acid maintenance-free storage battery
