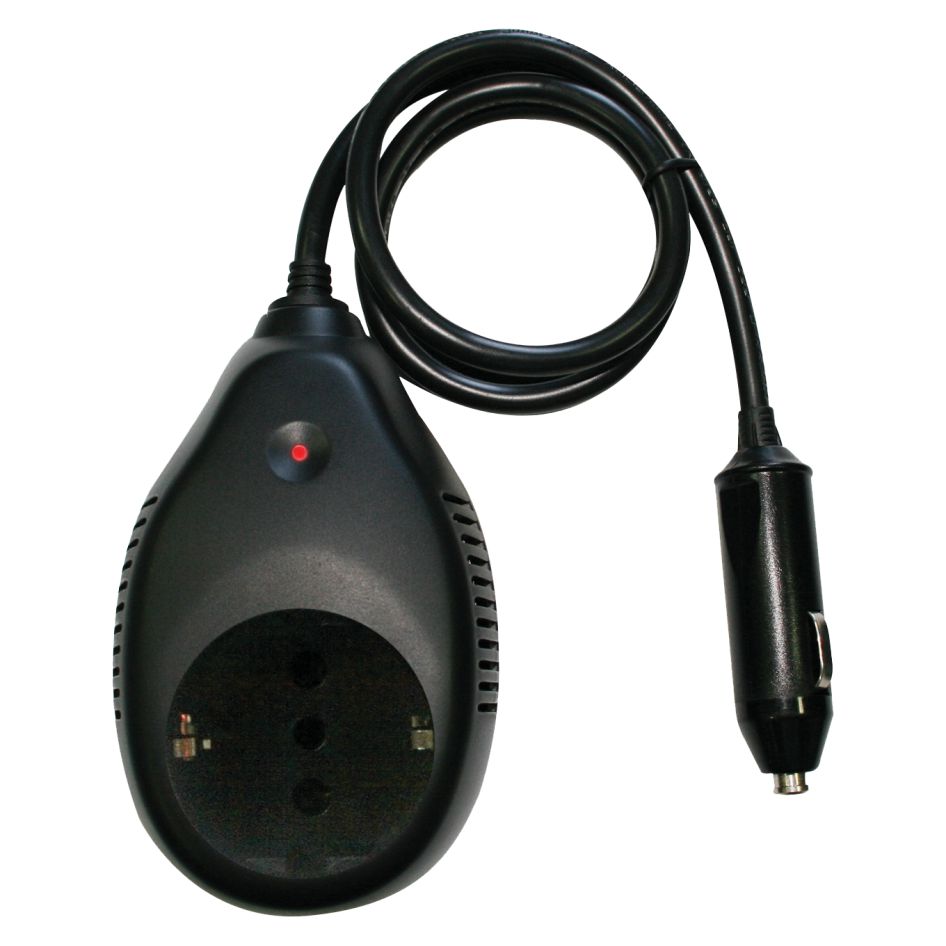

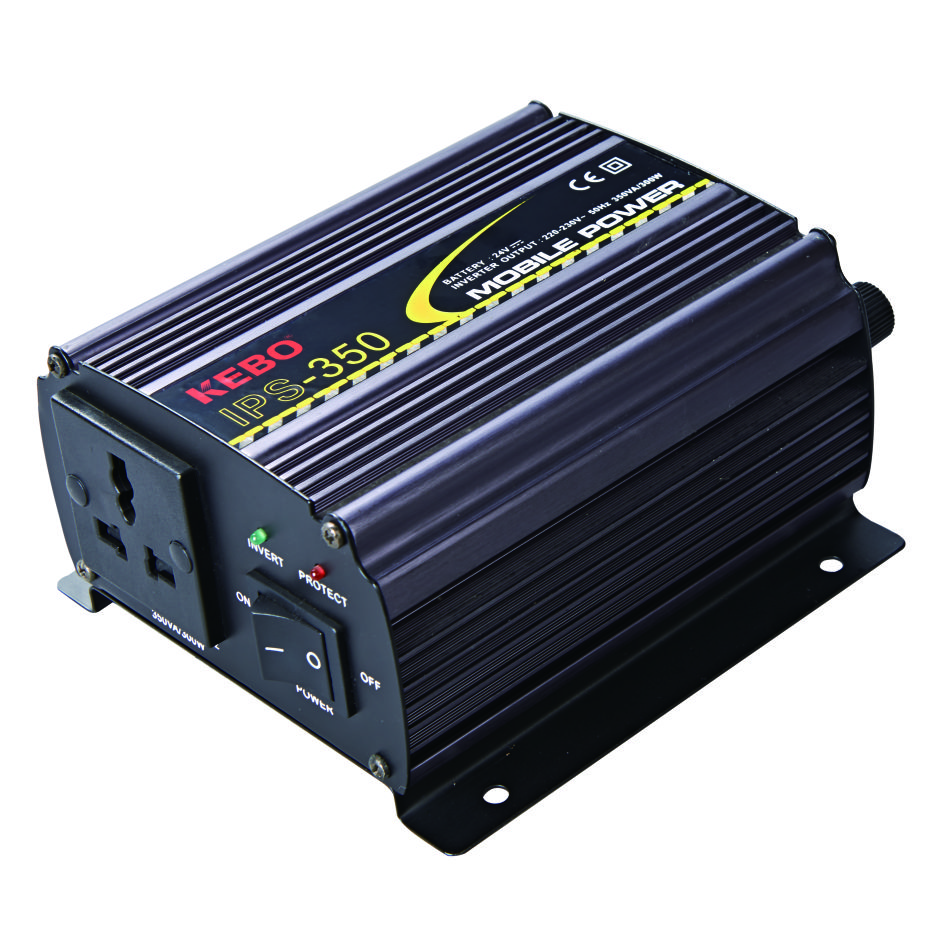

Portable Modified Sine Wave Power Inverter
These portable inverters convert 12V or 24V electricity from a power source to a 220V output using a modified sine wave. They are designed for converting DC power to AC for various applications.
Technical Specifications
Overview
Versatile Power Conversion Solution
These portable power inverters provide a reliable solution for converting DC battery power into standard AC electricity. Designed for versatility, the series supports multiple applications including UPS, AVR, and mobile power charging. With advanced protection features and high conversion efficiency, these units ensure safe and consistent operation for laptops, small appliances, and remote electronic devices.
Performance
- Output Waveform
- Modified Sine Wave
- Efficiency
- 90 %
- Output Frequency
- 50/60Hz ±0.5
- Overload Capacity
- 110%~130% for 10 seconds
Technical Specifications
- Input Voltage Options
- 12V DC24V DC
- Output Voltage
- AC 220-240V or AC 110-120V
- Max Charging Current
- 20 A
- Minimum Battery Capacity
- 48 Ah
Safety & Certification
Protection Features
- High Voltage Protection
- Low Voltage Protection
- Overheat Protection
- Overload Protection
- Short Circuit Protection
Certifications
CE (LVD)CE (EMC)
- Cooling System
- Smart fan (Automatic startup at 65°C)
EPS Series Specifics
- Transfer Time (Inverter to Mains)
- 4 ms
- Transfer Time (Mains to Inverter)
- 20 ms
