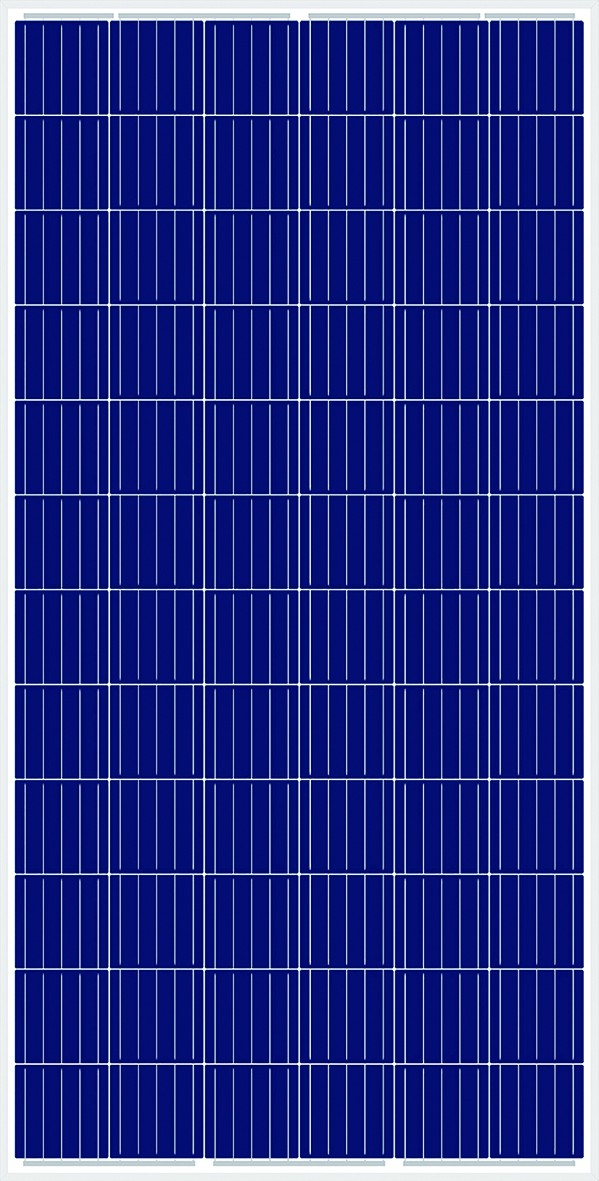

High Efficiency Polycrystalline Solar Panel
This polycrystalline solar panel features optimized BOM management for reliable and stable performance. It has passed third-party tests for resistance to salt spray, ammonia, sand, and dust, making it applicable to various scenarios.
Technical Specifications
Overview
High-Efficiency Solar Performance
This high-efficiency polycrystalline solar module is engineered for optimal energy conversion and long-term reliability. Designed to withstand harsh environmental conditions, it features advanced anti-reflection technology and robust construction suitable for residential, commercial, and industrial installations. With extremely low power degradation and rigorous quality control, this module ensures consistent power output for grid-tied and off-grid solar power systems.

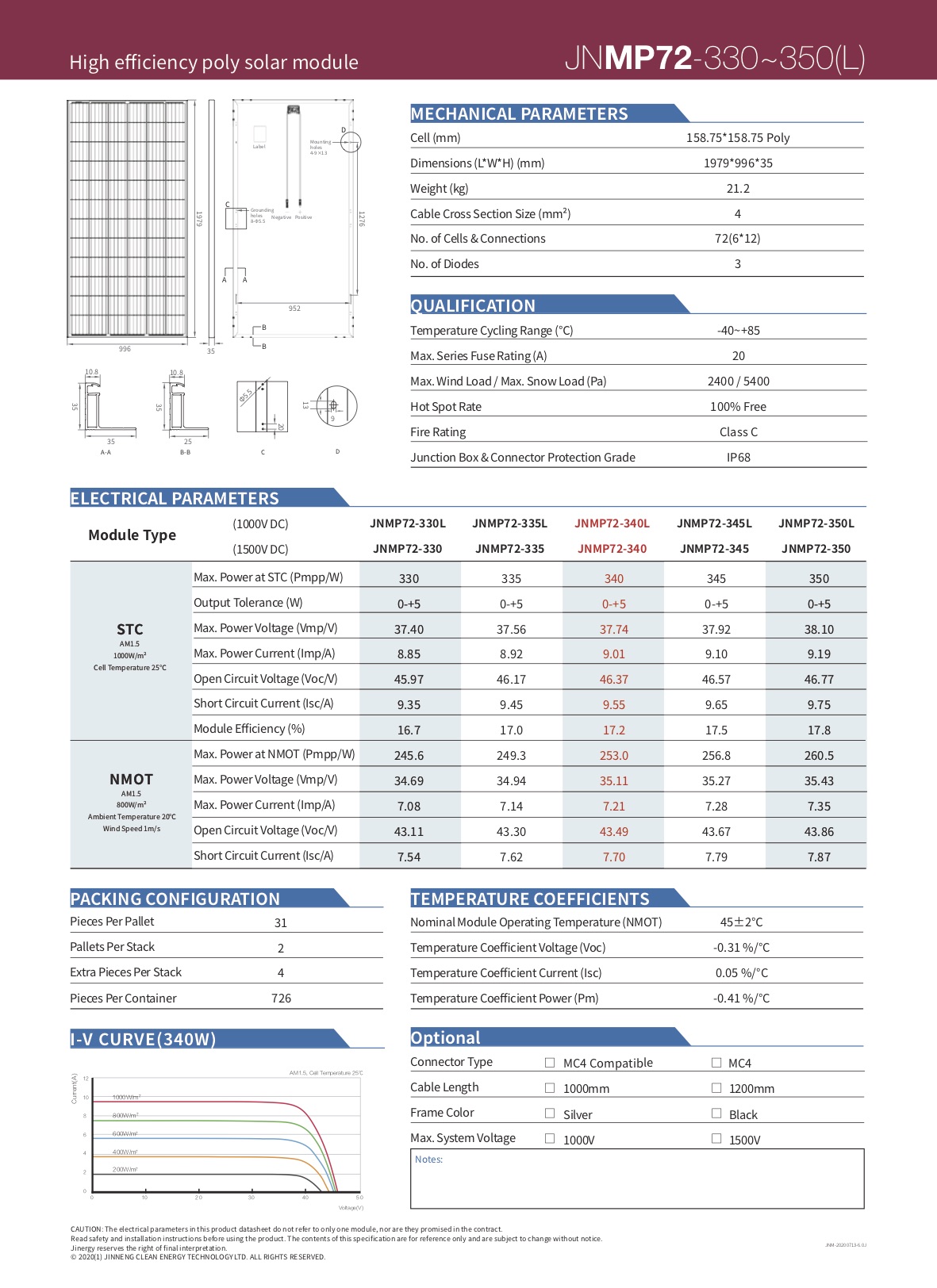

Mechanical Specifications
Load Capacity
2,400 Pa
Max Wind Load
5,400 Pa
Max Snow Load
- Module Dimensions
- 1979mm x 996mm x 35mm
- Weight
- 21.2 kg
- Cell Type
- 158.75mm x 158.75mm Polycrystalline
Environmental & Safety
- Certifications & Ratings
- IP68 Junction BoxClass C Fire RatingAnti-PIDSalt Spray ResistantAmmonia Resistant
- Operating Temperature Range
- -40°C to +85°C
Electrical Performance
Power Tolerance
0~+5W
Temperature Coefficients
| Parameter | Value |
|---|---|
| NMOT | 45±2°C |
| Voltage (Voc) | -0.31%/°C |
| Current (Isc) | 0.05%/°C |
| Power (Pm) | -0.41%/°C |
- Power Output Range (STC)
- 330W - 350W
- Module Efficiency
- 16.7% - 17.8%
