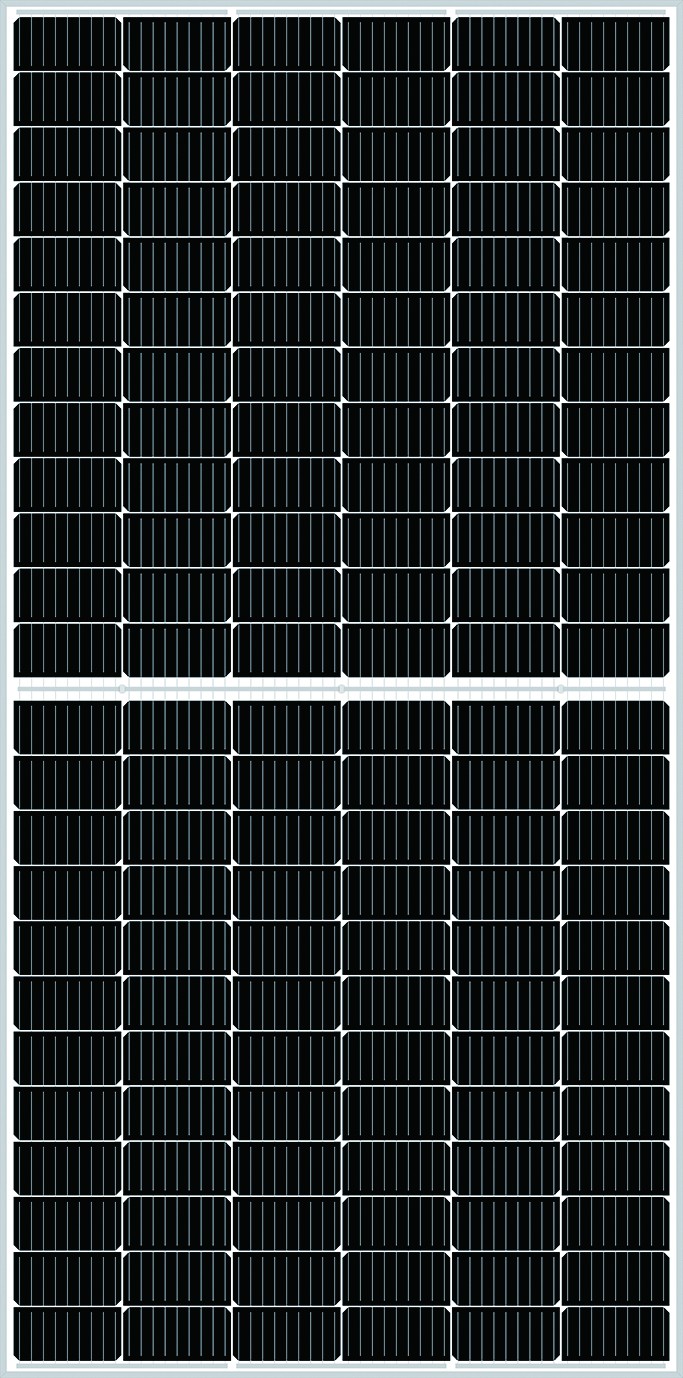

High Efficiency HJT Mono Bifacial Solar Module
This high-efficiency HJT mono solar module improves backside power generation with bifaciality. The module's design reduces shadow effects and enhances reliability.

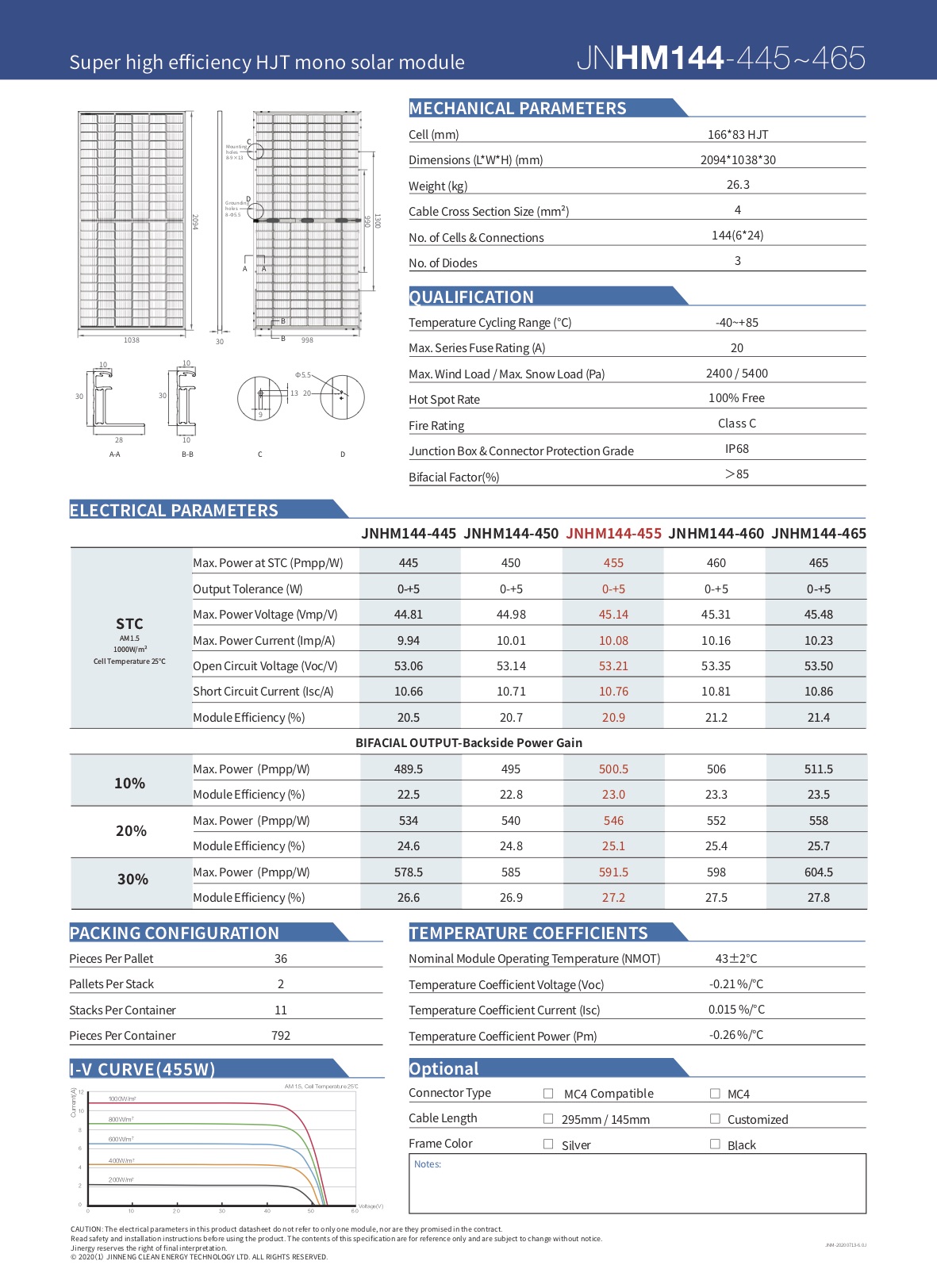

Technical Specifications
Product Overview
High-Efficiency HJT Solar Modules
These advanced Heterojunction Technology (HJT) mono-facial solar modules are designed to maximize energy conversion through a bifacial design that captures light from both sides, providing up to 35% extra power generation. Engineered with a multi-busbar (MBB) and half-cell architecture, they effectively minimize shading losses and improve overall module reliability. These modules offer exceptional performance in varying environmental conditions, including low-light environments, and feature a robust construction capable of withstanding heavy snow and wind loads.
Key Performance Metrics
Featured Performance
85 %
Bifacial Factor
5 W
Power Tolerance
1,500 V
System Voltage
Electrical Characteristics
- Module Efficiency Range
- 20.3% - 21.4%
Temperature Coefficients
Thermal Performance
| Parameter | Coefficient |
|---|---|
| Voltage (Voc) | -0.21%/°C |
| Current (Isc) | 0.015%/°C |
| Power (Pm) | -0.26%/°C |
Mechanical Specifications
Build Quality
- Junction Box: IP68 Protection
- Fire Rating: Class C
- Max Snow Load: 5400 Pa
- Max Wind Load: 2400 Pa
- PID-free and LID-free
Certifications
- Safety Standards
- IEC 61215IEC 61730ISO 9001ISO 14001
