Technical Specifications
Overview

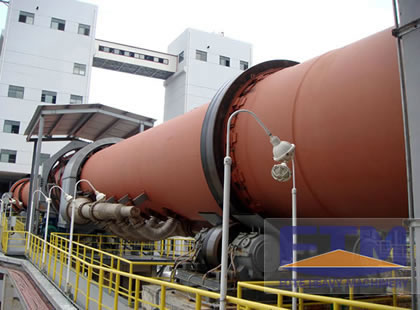

High Capacity Rotary Kiln
This high-capacity rotary kiln is engineered for efficient thermal processing in building materials, metallurgy, and chemical industries. It features a robust, stable structure designed for high production efficiency and consistent performance. With an optimized design, it achieves a 15% reduction in energy consumption compared to similar models, ensuring both sustainability and cost-effectiveness for industrial operations.
Key Features
Operational Advantages
- Stable operation with high production efficiency
- 15% reduction in energy consumption
- Convenient usage and easy operation
- Advanced preheating effects
- Controllable temperature for diverse roasting applications
- Suitable Applications
- Cement ProductionMetallurgyChemical IndustryNon-ferrous MetalsOre CalcinationLime CalcinationDolomite Calcination
Technical Specifications
Kiln Performance Data
| Model | Diameter (m) | Length (m) | Capacity (t/d) | Motor Power (kW) | Total Weight (t) |
|---|---|---|---|---|---|
| Φ2.5×40 | 2.5 | 40 | 180 | 55 | 149.61 |
| Φ2.5×50 | 2.5 | 50 | 200 | 55 | 187.37 |
| Φ2.5×54 | 2.5 | 54 | 204 | 55 | 196.29 |
| Φ2.7×42 | 2.7 | 42 | 320 | 55 | 198.5 |
| Φ2.8×44 | 2.8 | 44 | 400 | 55 | 201.58 |
| Φ3.0×45 | 3 | 45 | 500 | 75 | 210.94 |
| Φ3.0×48 | 3 | 48 | 700 | 100 | 237 |
| Φ3.0×60 | 3 | 60 | 300 | 100 | 310 |
| Φ3.2×50 | 3.2 | 50 | 1,000 | 125 | 0 |
Core Components
- Thrust wheel
- Tire
- Kiln shell
