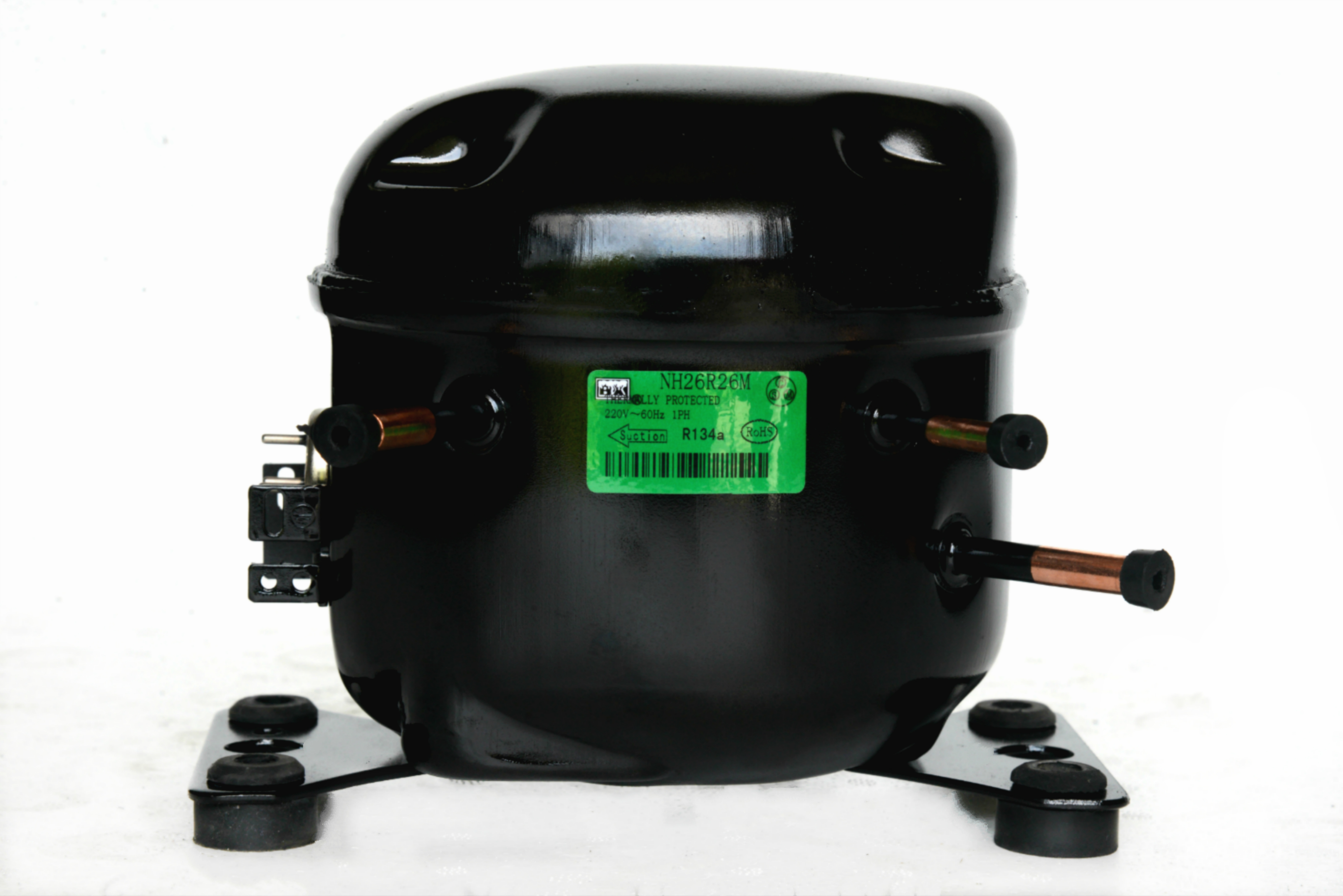

Hermetic Compressor for Water Coolers
This hermetically sealed compressor is designed for water coolers. It features thermal overload protection, a 220V-60Hz 1PH power supply, and R134a refrigerant compatibility.
Technical Specifications
Product Overview
Designed for Efficiency and Stability
The NV Series hermetic compressor is specifically engineered for water cooler applications, utilizing unique technology to ensure quiet and stable operation. These compressors are built for reliability in both household and commercial cooling systems. With features like thermal overload protection and compatibility with R134a refrigerant, this series offers a robust solution for your cooling needs.
Technical Specifications
- Refrigerant
- R134a
- Motor Type
- RSIR
- Cooling Type
- ST
Performance Metrics
Model Performance Comparison
| Model | Voltage | Frequency | Cooling Capacity (-23.3°C) | COP (-23.3°C) |
|---|---|---|---|---|
| NH26R45A | 220V-240V | 50Hz | 56W | 0.82 |
| NH26R26M | 220V-240V | 60Hz | 66W | 1.0 |
Certifications & Features
- Key Features
- Hermetically SealedThermal Overload ProtectionQuiet OperationRoHS Compliant
