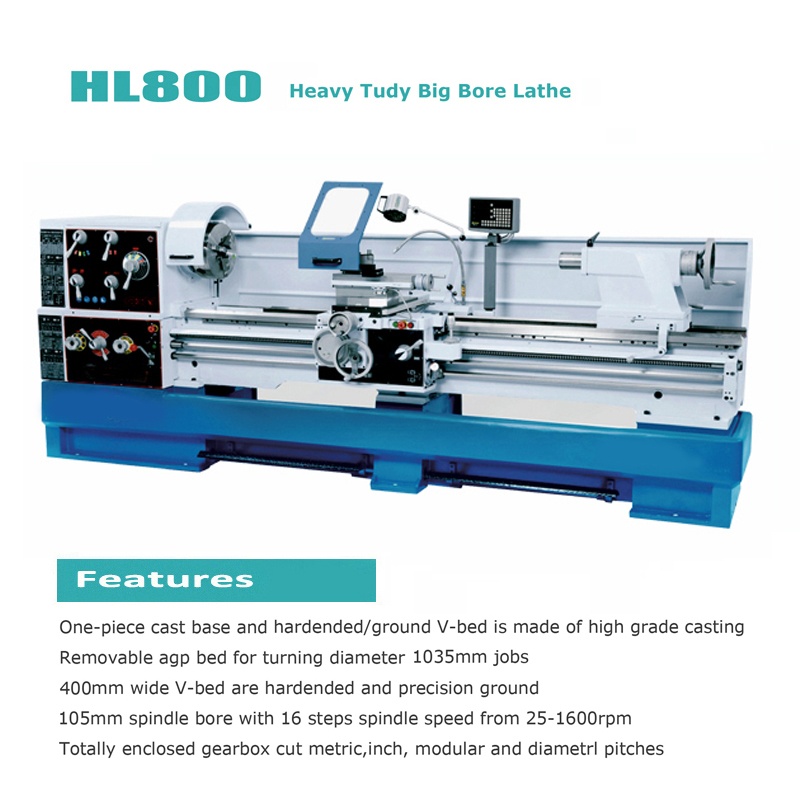

Heavy Duty Lathe with Large Spindle Bore
This heavy-duty lathe is built with a one-piece cast base and a hardened V-bed for enhanced stability and accuracy. It has a 105mm spindle bore, 16 spindle speed steps, and a removable gap bed for turning diameters up to 1035mm.
Technical Specifications
Overview
Heavy-Duty Big Bore Lathe
This heavy-duty big bore lathe is engineered for precision and durability in demanding metalworking applications. Featuring a robust construction and a powerful motor, it offers exceptional performance for machining large and heavy workpieces. The lathe is equipped with a large spindle bore to accommodate long shafts and bars, enhancing its versatility for various industrial turning operations.
Technical Specifications
Spindle Speed Range
25 rpm
Min Speed
1,600 rpm
Max Speed
16 steps
Speed Steps
- Spindle Bore
- 105 mm
- Max Turning Diameter (Gap Bed)
- 1035 mm
- V-Bed Width
- 400 mm
Design & Construction
Gearbox Thread Cutting
- Metric pitches
- Inch pitches
- Modular pitches
- Diametral pitches
- Key Construction Features
- One-piece cast baseHardened V-bedPrecision ground bedRemovable gap bed
