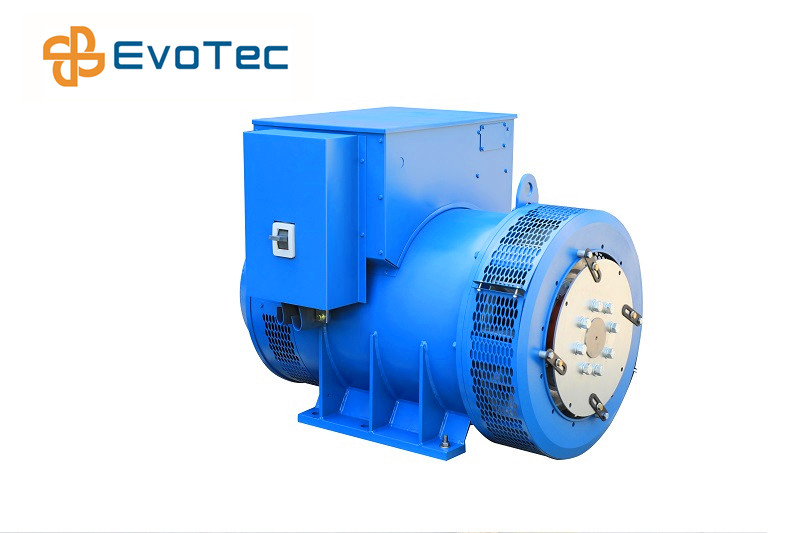

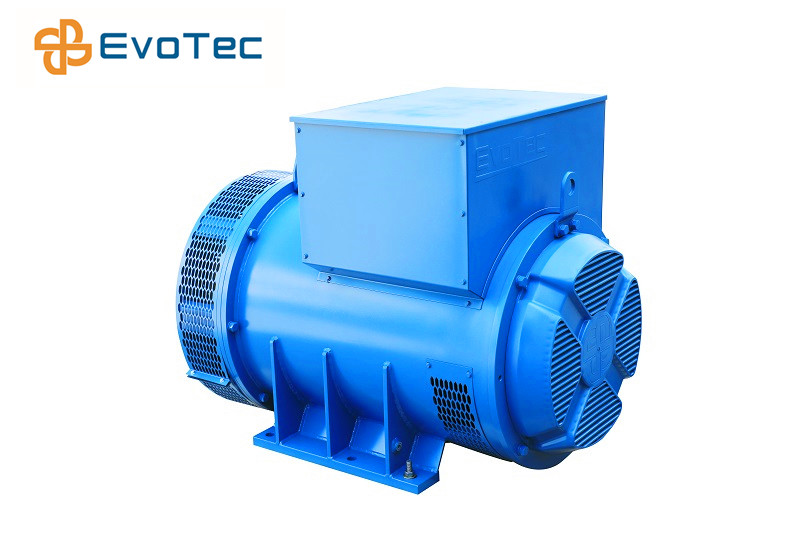

Heavy-Duty Land Use Generator
This heavy-duty generator provides reliable power for various land use applications. It features a robust construction and efficient cooling system for stable performance in demanding conditions.
Technical Specifications
Product Overview
Heavy-Duty Land Use Generator
This heavy-duty land use generator is engineered for reliable power generation across industrial, commercial, and agricultural applications. Featuring a patented high-efficiency winding design and advanced voltage regulation, it provides stable power output while optimizing fuel consumption. Its robust construction, including a rotary lamination stator and strengthened rotor, ensures longevity, efficient heat dissipation, and dependable performance in demanding environments.
Performance Metrics
Core Performance
1,500 rpm
Standard Speed
0.8
Power Factor
4,000 m.a.s.l
Max Altitude
Electrical Specifications
- Voltage Range
- 110V to 690V
- Frequency
- 50Hz60Hz
- Phase Configuration
- Reconnectable Single / 3 Phase
- Voltage Regulation
- +/-1%
- Winding Pitch
- 2/3
Mechanical Design
Service Duty
Continuous Duty (S1)Standby
- Degree of Protection
- IP21 to IP55
- Insulation Class
- H
- Construction
- Single / Double Bearing
Operating Limits
- Temperature Rise
- 80°C to 163°C
- Ambient Temperature Range
- 27°C to 60°C
- Overload Capacity
- 10% for 1 hour
- Overspeed Tolerance
- 1.25 times rated speed
