Heavy Duty Industrial Swivel Caster Wheel
This heavy-duty industrial caster wheel provides smooth and reliable movement for heavy loads. It is designed with a swivel top plate for easy maneuverability and can be equipped with a brake for secure positioning.
Technical Specifications
Product Overview
Industrial-Grade Mobility Solution
These heavy-duty industrial swivel casters are engineered for high precision and long-lasting durability in demanding environments. Designed to withstand industrial-grade stress, they feature a robust build that resists corrosion, impacts, and abrasion. With flexible mounting options and a customizable design, these casters are an ideal choice for freight grounds, industrial carts, and heavy-duty apparatus.
Technical Specifications
Mounting Options
- Top plate
- Grip stem
- Available Diameters
- 100mm125mm150mm160mm200mm
- Bearing
- Double ball raceways
- Operating Temperature Range
- -20 to 90 degrees Celsius
Performance Data
Key Performance Indicators
400 kg
Load Capacity
239 mm
Fixed Height
Construction & Material
Material Characteristics
Anti-abrasionAcid corrosion resistantImpact resistantDurable finish

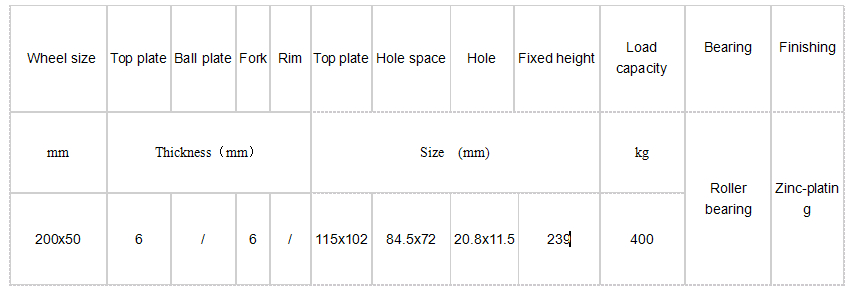

Component Dimensions
| Component | Measurement |
|---|---|
| Wheel Size | 200x50 mm |
| Top Plate Thickness | 6 mm |
| Fork Thickness | 6 mm |
| Hole Space | 84.5x72 mm |
