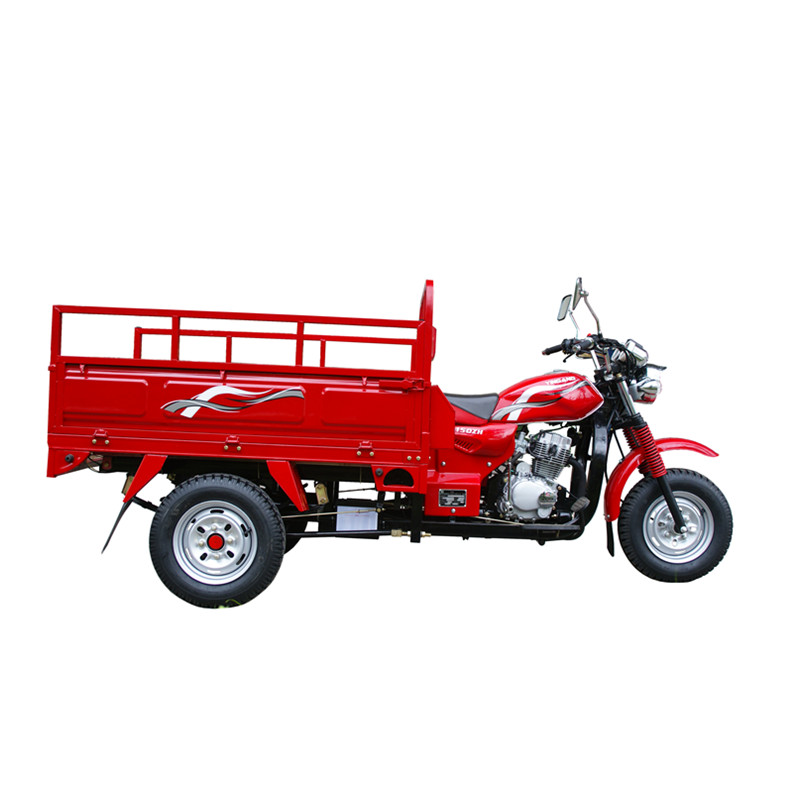

Heavy-Duty Cargo Tricycle with 200cc Engine
This heavy-duty tricycle is designed for utility and transport, featuring leaf spring suspension for enhanced load capacity. Its robust air-cooled engine, ranging from 175cc to 300cc, and durable construction ensure reliable performance.

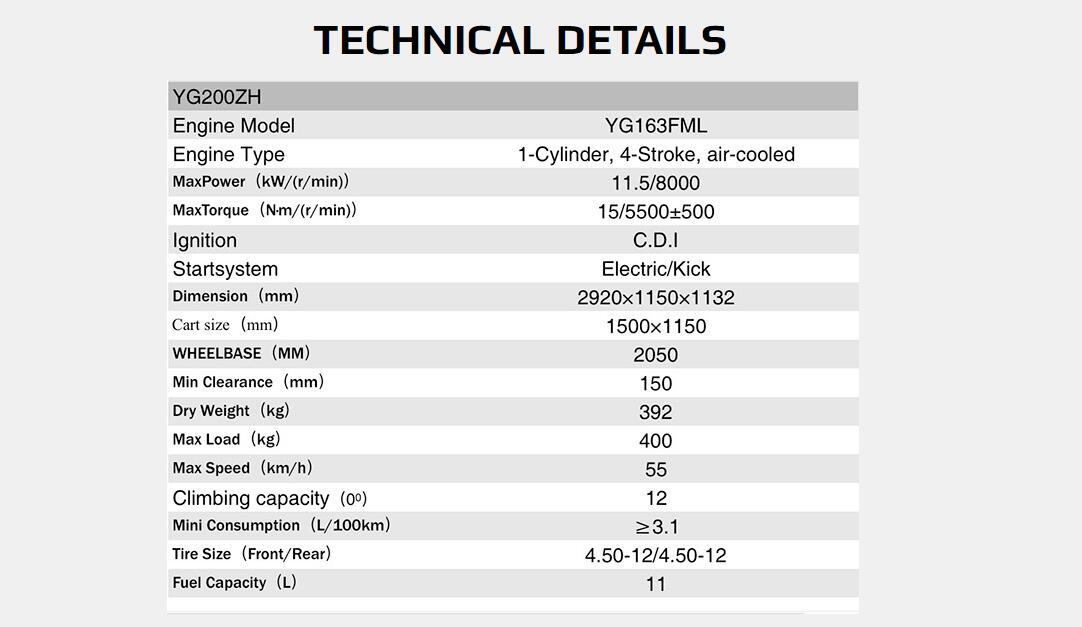

Technical Specifications
Product Overview
Robust Cargo Utility
This heavy-duty cargo tricycle is engineered for efficient material transport in commercial and agricultural environments. Built with a sturdy frame, leaf spring suspension, and a powerful air-cooled engine, it offers exceptional stability and durability under heavy loads. Its combination of advanced painting technology and high-performance components ensures reliable, long-lasting operation in demanding conditions.
Technical Performance
Engine Performance
11.5 kW
Max Power
15 Nm
Max Torque
55 km/h
Max Speed
Engine Specifications
| Feature | Specification |
|---|---|
| Engine Model | YG163FML |
| Engine Type | 1-Cylinder, 4-Stroke, air-cooled |
| Ignition | C.D.I |
| Start System | Electric/Kick |
Dimensions and Capacity
Cargo and Load Details
- Dimensions: 2920 x 1150 x 1132 mm
- Cart size: 1500 x 1150 mm
- Wheelbase: 2050 mm
- Max Load: 400 kg
- Dry Weight: 392 kg
Operational Features
- Operational Capabilities
- Leaf spring suspension12-degree climbing capacityAluminum alloy wheel hubsNano painting technology
- Fuel Efficiency
- 3.1 L/100km
