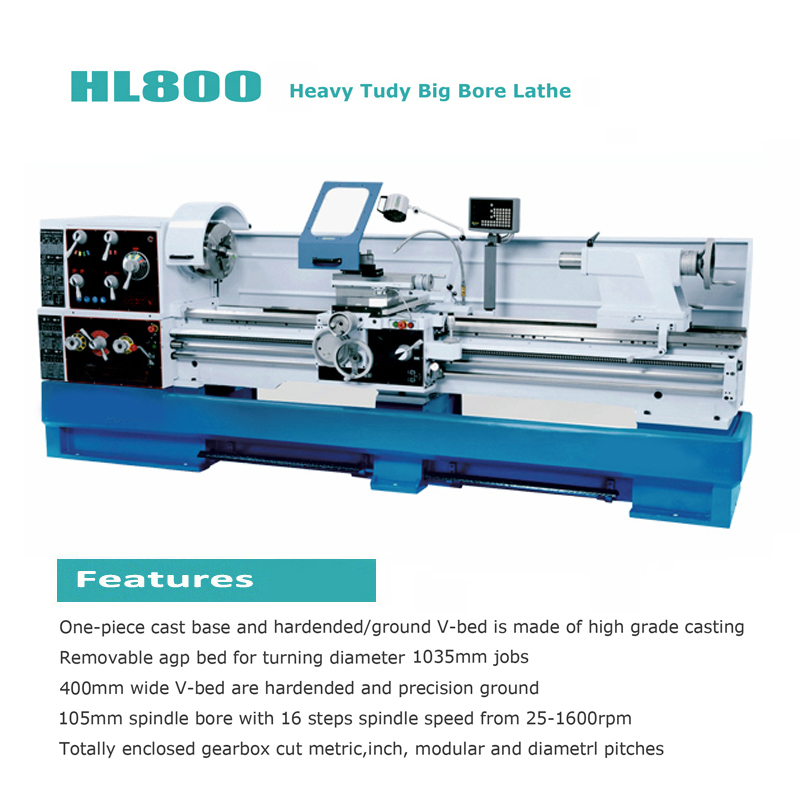

Heavy-Duty Big Bore Lathe with Gap Bed
This heavy-duty big bore lathe is engineered for demanding machining operations. It features a one-piece cast base and hardened/ground V-bed, ensuring exceptional rigidity and precision.
Technical Specifications
Overview
Heavy-Duty Performance
This heavy-duty big bore lathe is engineered for demanding industrial machining operations, offering exceptional rigidity and precision. Built with a one-piece cast base and a hardened, ground V-bed, it ensures durability for long-term use. The machine is versatile, featuring a removable gap bed for larger diameters and a totally enclosed gearbox capable of handling various threading pitches.
Technical Specifications
Spindle Speed
25 rpm
Min Speed
1,600 rpm
Max Speed
16 steps
Speed Steps
- Spindle Bore
- 105 mm
- Max Turning Diameter (Gap Bed)
- 1035 mm
Construction & Design
- V-Bed Width
- 400 mm
- Key Construction Features
- One-piece cast baseHardened V-bedPrecision ground bedRemovable gap bed
Capabilities
Threading Pitches
- Metric
- Inch
- Modular
- Diametral
Primary Applications
TurningFacingThreadingBoring
Equipment
Included Equipment
- Quick-change tool post
- Tailstock with quill
- Coolant system
