Technical Specifications
Product Overview

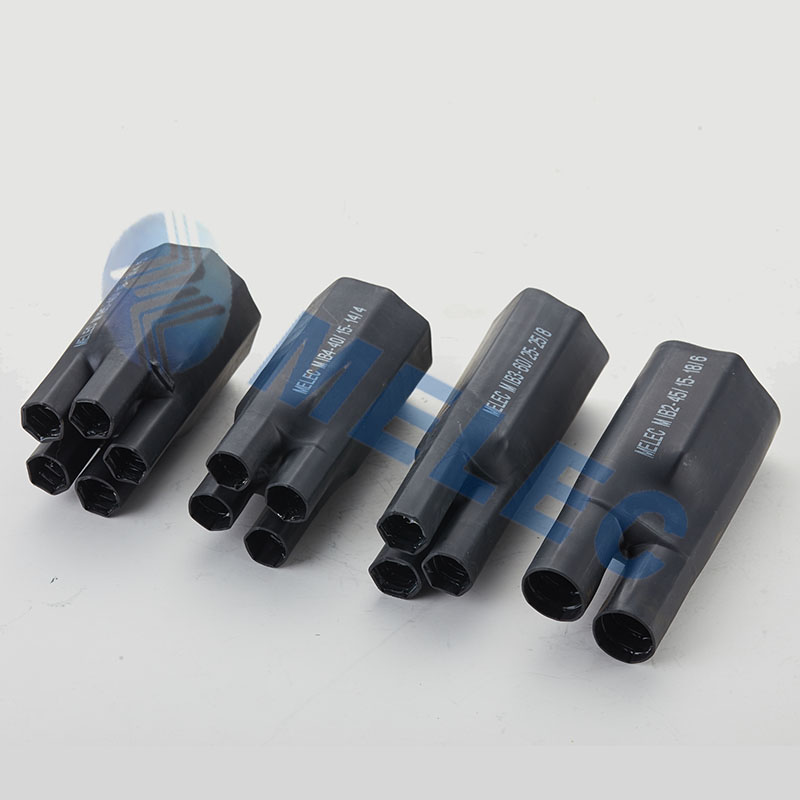

Reliable Cable Termination Protection
Heat Shrinkable Insulation Breakout provides robust environmental sealing and electrical insulation for multi-core cable terminations. Designed for medium voltage applications, it effectively protects cable cores from moisture, contamination, and mechanical stress. Featuring a hot-melting adhesive with spiral coating, this solution ensures a tight, secure fit that withstands harsh outdoor conditions and chemical exposure.
- Key Features
- UV ResistantCorrosion ResistantMoisture ProtectionEasy InstallationHot Melting Adhesive
Technical Specifications
Operating Temperature
-40 °C
Min Temperature
100 °C
Max Temperature
- Maximum Voltage
- 36 kV
- Color
- Black
- Coating Type
- Spiral coating
Dimensional Data

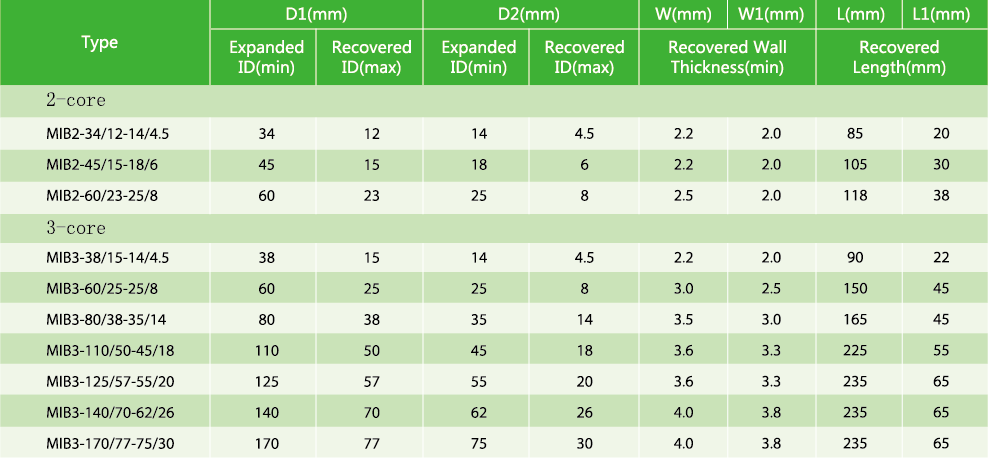

Dimensions: 2-Core & 3-Core Cables
| Model | D1 (mm) | D2 (mm) | Wall (mm) | Length (mm) |
|---|---|---|---|---|
| MIB2-34/12-14/4.5 | 34/12 | 14/4.5 | 2.2/2.0 | 85/20 |
| MIB2-45/15-18/6 | 45/15 | 18/6 | 2.2/2.0 | 105/30 |
| MIB2-60/23-25/8 | 60/23 | 25/8 | 2.5/2.0 | 118/38 |
| MIB3-38/15-14/4.5 | 38/15 | 14/4.5 | 2.2/2.0 | 90/22 |
| MIB3-60/25-25/8 | 60/25 | 25/8 | 3.0/2.5 | 150/45 |
| MIB3-80/38-35/14 | 80/38 | 35/14 | 3.5/3.0 | 165/45 |

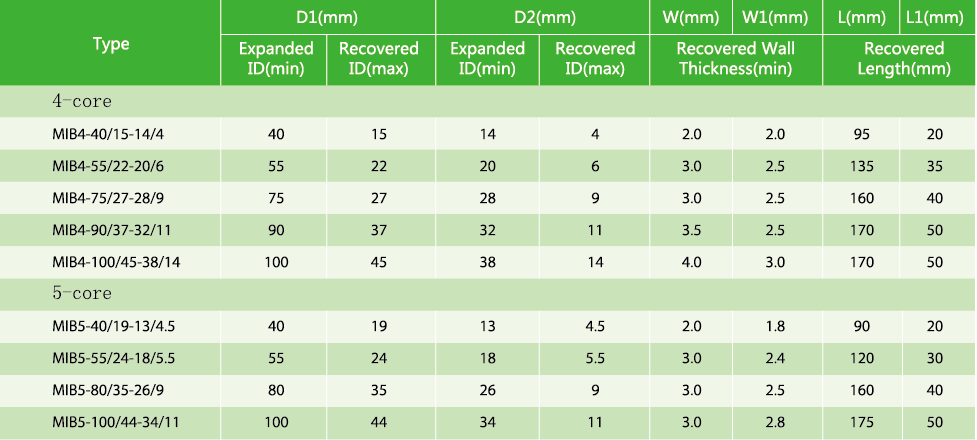

Dimensions: 4-Core & 5-Core Cables
| Model | D1 (mm) | D2 (mm) | Wall (mm) | Length (mm) |
|---|---|---|---|---|
| MIB4-40/15-14/4 | 40/15 | 14/4 | 2.0/2.0 | 95/20 |
| MIB4-55/22-20/6 | 55/22 | 20/6 | 3.0/2.5 | 135/35 |
| MIB5-40/19-13/4.5 | 40/19 | 13/4.5 | 2.0/1.8 | 90/20 |
| MIB5-55/24-18/5.5 | 55/24 | 18/5.5 | 3.0/2.4 | 120/30 |
