Technical Specifications
Product Overview
Heat Shrinkable Cable End Caps
These heat shrinkable end caps provide reliable environmental sealing and mechanical protection for power cables, lines, and pipes. Featuring an internal spiral hot-melt adhesive coating, they ensure superior waterproofing and resistance against humidity. Designed for durability, these caps offer excellent UV resistance and corrosion protection, making them suitable for demanding industrial applications.
Key Features
Performance Attributes
WaterproofUV ResistantCorrosion ResistantHigh Mechanical StrengthSpiral Adhesive Coating
Technical Specifications
Operating Temperature
-40 °C
Minimum Temperature
110 °C
Maximum Temperature
- Standard Color
- Black

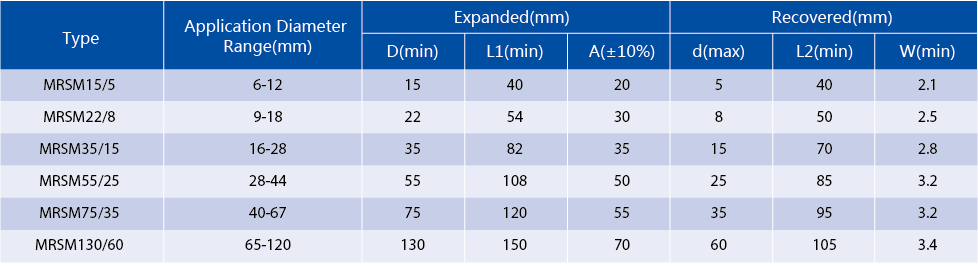

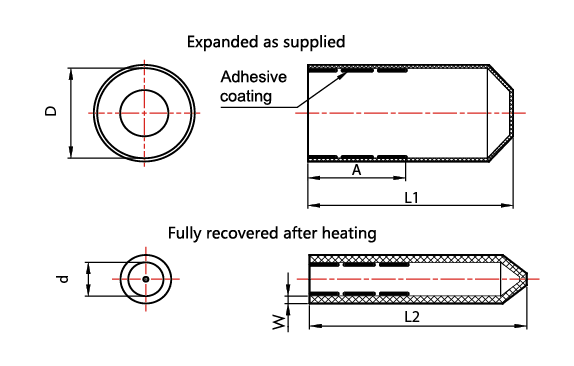

Dimensional Data
Dimensional Specifications
| Type | App. Range (mm) | Expanded D (mm) | Recovered d (mm) | Wall W (mm) |
|---|---|---|---|---|
| MRSM15/5 | 6-12 | 15 | 5 | 2.1 |
| MRSM22/8 | 9-18 | 22 | 8 | 2.5 |
| MRSM35/15 | 16-28 | 35 | 15 | 2.8 |
| MRSM55/25 | 28-44 | 55 | 25 | 3.2 |
| MRSM75/35 | 40-67 | 75 | 35 | 3.2 |
| MRSM130/60 | 65-120 | 130 | 60 | 3.4 |
