Heat Shrinkable Cable End Cap
Used for sealing ends of power cables, lines and pipes. Hot melting adhesive provides a waterproof seal, protecting against humidity, UV radiation, and corrosion.
Technical Specifications
Product Overview
Reliable Cable Protection
These heat shrinkable end caps are designed for sealing the ends of power cables, lines, and pipes, providing a robust barrier against environmental hazards. Featuring a spiral hot-melting adhesive coating, they ensure superior waterproofing and moisture protection. Engineered for durability, these caps offer excellent UV resistance, corrosion resistance, and mechanical strength, making them ideal for demanding electrical and industrial applications.
Key Features
- Key Features
- WaterproofUV ResistantCorrosion ResistantHigh Mechanical StrengthSpiral Adhesive Coating
Technical Data
Operating Temperature
-40 °C
Min Temp
110 °C
Max Temp
- Color Standard
- Black

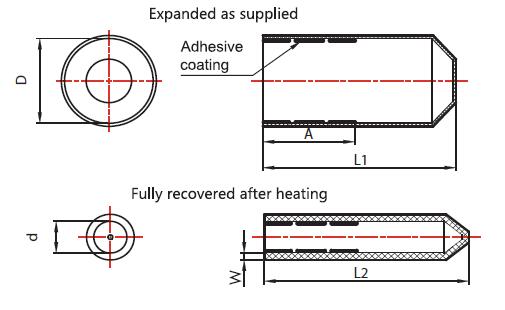

Size Specifications
Dimensions Matrix
| Type | App. Diameter (mm) | Expanded D (mm) | Recovered d (mm) | Wall Thickness (mm) |
|---|---|---|---|---|
| MRSM15/5 | 6-12 | 15 | 5 | 2.1 |
| MRSM22/8 | 9-18 | 22 | 8 | 2.5 |
| MRSM35/15 | 16-28 | 35 | 15 | 2.8 |
| MRSM55/25 | 28-44 | 55 | 25 | 3.2 |
| MRSM75/35 | 40-67 | 75 | 35 | 3.2 |
| MRSM130/60 | 65-120 | 130 | 60 | 3.4 |
