Heat Shrinkable Cable Breakout
Heat shrinkable cable breakouts provide environmental protection and insulation to cable breakouts. Hot melting adhesive offers enhanced waterproof capabilities.
Technical Specifications
Product Overview
Heat Shrinkable Cable Breakout
These heat-shrinkable cable breakouts are designed for reliable insulation and environmental protection in medium voltage applications up to 36kV. Featuring hot-melting adhesive with a spiral coating, they offer superior resistance to moisture, UV radiation, and corrosion. Their robust electrical and mechanical properties ensure durable performance in cable termination separation.
Key Features
- Product Highlights
- WaterproofUV ResistantCorrosion ResistantEasy InstallationSpiral Coating
Technical Specifications
Maximum Voltage
36 kV
Voltage Rating
- Operating Temperature
- -40°C to +100°C
- Standard Color
- Black
Available Configurations
Supported Core Configurations
- 2-core
- 3-core
- 4-core
- 5-core

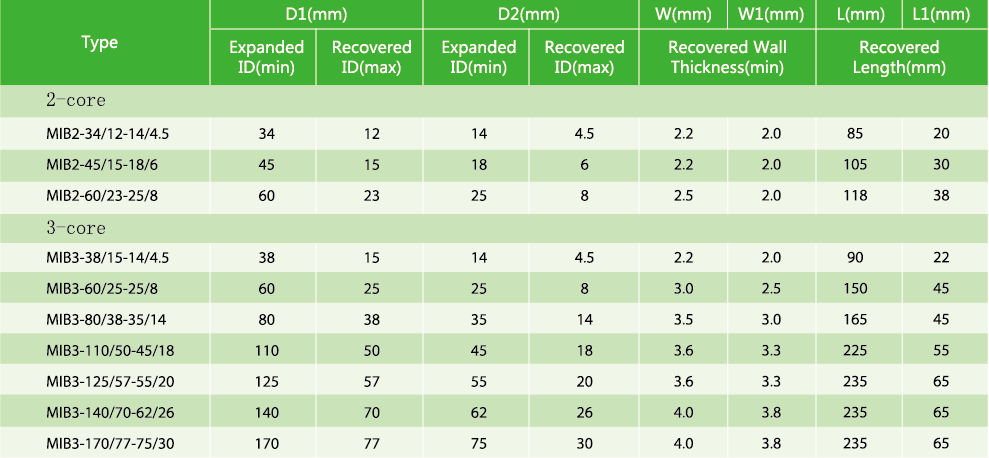

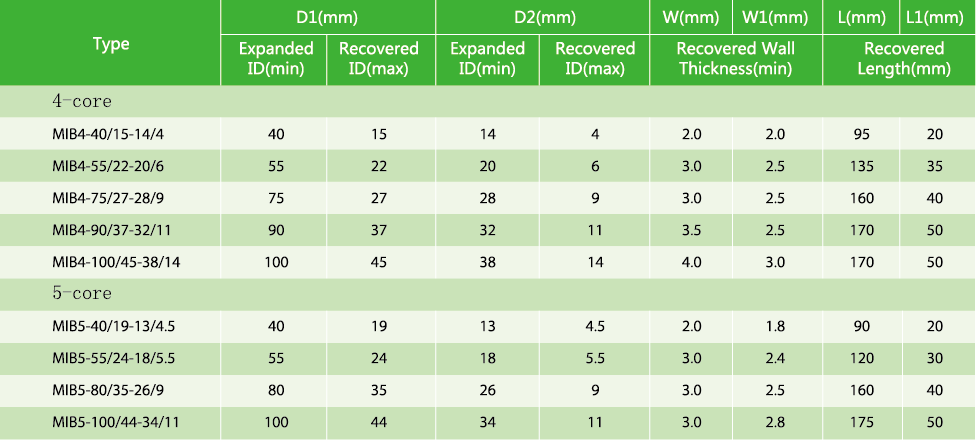

Dimension Reference
| Core Type | Model Examples |
|---|---|
| 2-core | MIB2-34/12-14/4.5, MIB2-60/23-25/8 |
| 3-core | MIB3-38/15-14/4.5, MIB3-170/77-75/30 |
| 4-core | MIB4-40/15-14/4, MIB4-100/45-38/14 |
| 5-core | MIB5-40/19-13/4.5, MIB5-100/44-34/11 |
