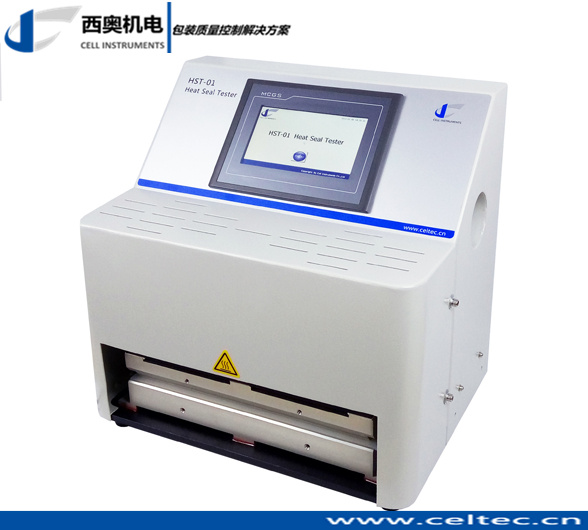

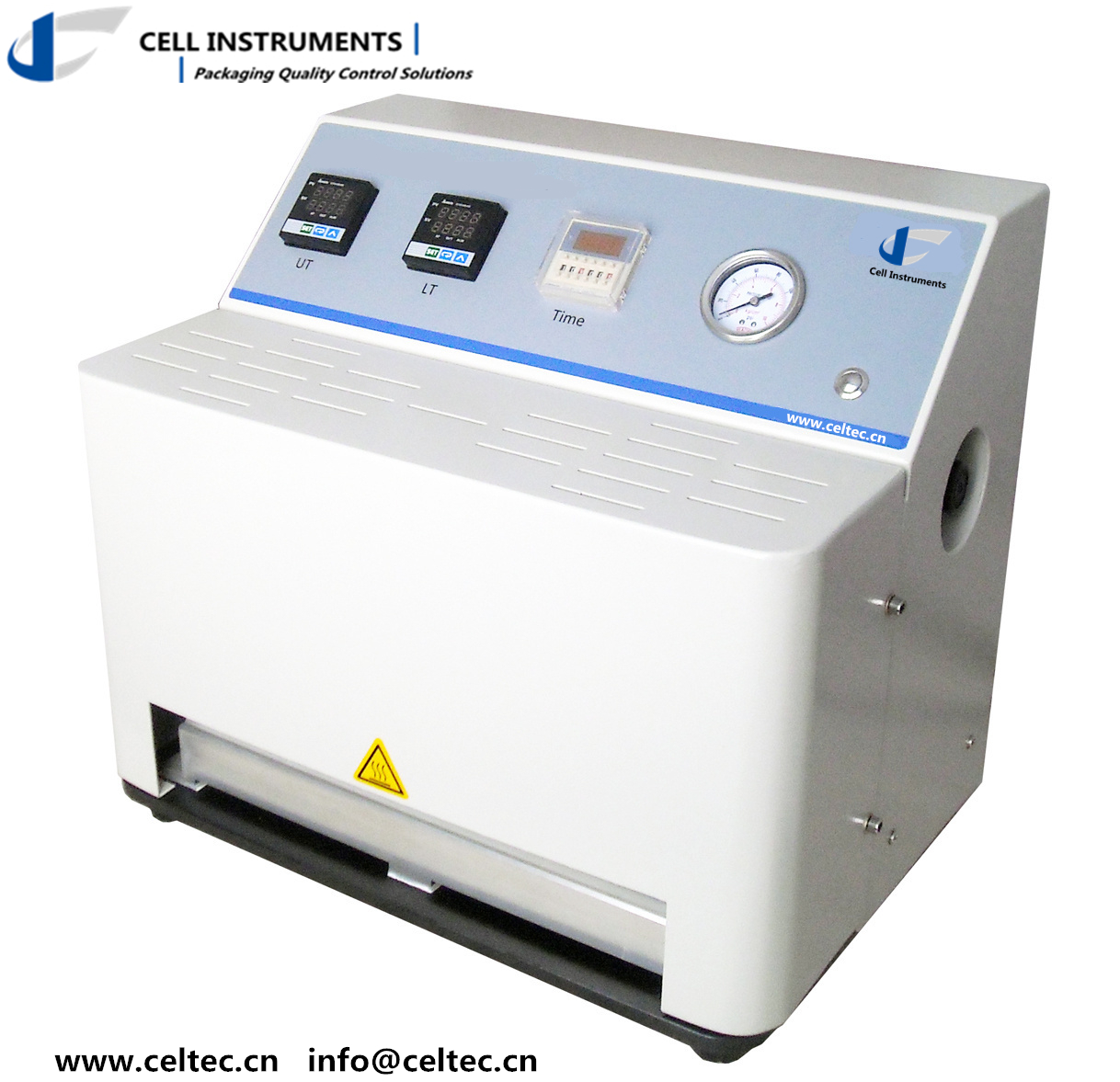

Heat Seal Tester for Films and Laminates
This heat seal tester precisely measures sealing temperature, time, and pressure. It determines the heatsealability of films, laminates, composites, and polymers by quantifying seal strength under various sealing conditions.
Technical Specifications
Overview
Precision Heat Seal Testing
This Heat Seal Tester is professionally designed for the precise measurement of sealing temperature, time, and pressure, essential for determining the heat-sealability of films, laminates, composites, and polymers. It provides quantitative seal strength analysis based on sealing conditions, ensuring package integrity and consistent quality control. The device features an intuitive 7-inch touch screen, independent heating control for upper and lower jaws, and precise P.I.D. temperature regulation to eliminate human error and streamline testing workflows.
Key Features
Advanced Capabilities
- 7-inch TFT touch screen interface
- PLC control for precise dwell time and pressure
- P.I.D. temperature control system
- Uniform heating via aluminum encapsulated jaws
- Independent heating for upper and lower jaws
- Saved test parameter groups for consistency
- Customizable sealing jaw dimensions and surfaces
Technical Specifications
- Sealing Temperature Range
- 300 °C
- Temperature Deviation
- 0.2 °C
- Dwell Time Range
- 0.1s - 9999s
- Sealing Pressure Range
- 0.15 MPa - 0.7 MPa
- Sealing Jaws Dimensions
- 330mm x 10mm
- Required Gas Pressure
- 0.7 MPa
- Port Size
- Ф6 mm PU Hose
Compliance
- Conforming Standards
- ASTM F2029QB/T 2358YBB 00122003
