HD/AV to ISDB-T Encoder Modulator
This encoder modulator converts HD/AV signals into ISDB-T digital signals. It integrates MPEG-4 AVC/H.264 encoding and modulating functions.
Technical Specifications
Overview
Professional ISDB-T Encoder Modulator

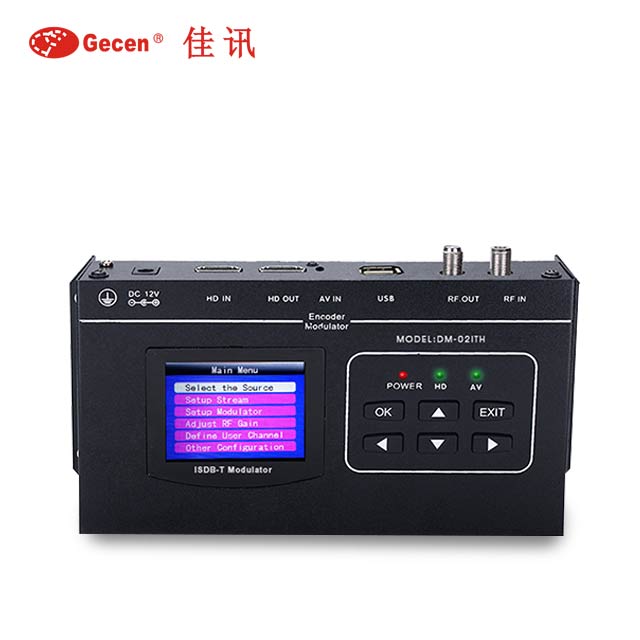

The DM-02ITH is a high-performance integration of MPEG-4 AVC/H.264 encoding and modulating functions, designed to convert HD or analog A/V sources into an ISDB-T digital channel. This compact, wall-mountable device features a 2.4-inch color LCD display for intuitive configuration and supports updates via USB. It is an ideal solution for digital terrestrial television broadcasting, digital signage, and private cable TV headends.
Video Encoding
Video Compression
MPEG-4 AVCH.264
Input Resolutions
- 1920*1080p @ 60/50Hz
- 1920*1080i @ 60/50Hz
- 1280*720p @ 60/50Hz
- Aspect Ratio
- 16:94:3
- Video Bit Rate
- 18 Mbps
Audio Encoding
- Audio Compression
- MPEG1 Layer II
- Sampling Frequency
- 48 KHz
- Audio Bit Rate Options
- 64kbps96kbps128kbps192kbps256kbps320kbps
Hardware & Interface
Integrated Display
2.4 inch
Color LCD
I/O Interfaces
- HD IN
- HD OUT (Loop-through)
- AV IN (CVBS)
- USB (for updates)
- RF IN
- RF OUT
- Power Input
- DC 12V
Configuration
Management Features
- Source Selection
- Stream Setup
- Modulator Setup
- RF Gain Adjustment
- User Channel Definition
Physical Design
- Installation
- Wall mountable
