HD to DVB-T RF Encoder Modulator
This HD to DVB-T RF encoder modulator converts high-definition audio and video signals into DVB-T digital television signals. The digital modulator supports HD input and output, plus USB connectivity.
Technical Specifications
Overview
Professional HD to DVB-T Conversion
This HD to DVB-T RF Encoder Modulator is a high-performance device designed to integrate MPEG-4 AVC/H.264 encoding with digital modulation. It allows users to convert high-definition audio and video sources into a standard DVB-T channel for distribution over existing RF networks. Its compact, wall-mountable design and USB update capability make it an ideal solution for commercial and residential digital signage or entertainment systems.
Key Features
Key Features
- Integrated MPEG-4 AVC/H.264 encoding and modulation
- Compatible with multiple video formats
- Converts HD source to a DVB-T digital channel
- Compact and wall-mountable form factor
- Firmware updates via USB port
Video & Audio Encoding
- Video Encoding
- MPEG-4 AVC/H.264
- Supported Resolutions
- 1080p@601080p@501080i@601080i@50720p@60720p@50
- Audio Encoding
- MPEG1 Layer II
Modulator Specifications
RF Output Level
107 dBμV
Min Output
113 dBμV
Max Output
- Modulation Standard
- DVB-T COFDM
System & Interface

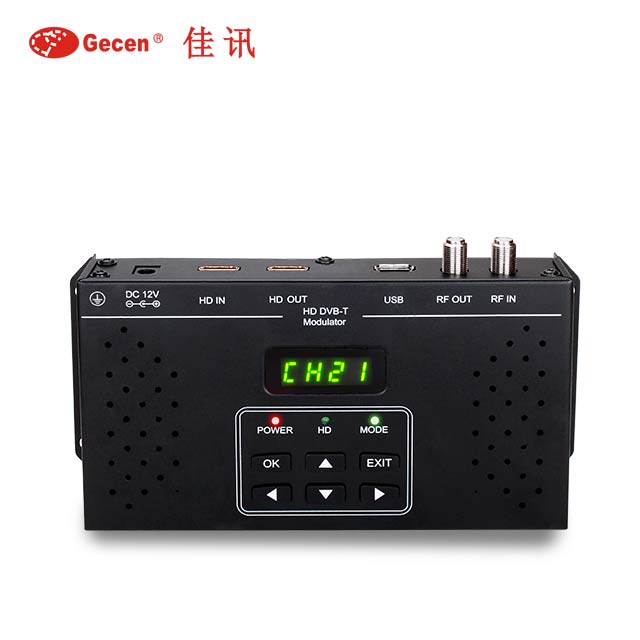

On-Device Controls
- Channel Selection (CH21 display)
- Mode Selection
- OK / Enter
- Exit
- Navigation Buttons
- Available Ports
- HD INHD OUTUSBRF OUTRF INDC 12V
- Power Supply
- DC 12V
Compliance
Certifications
CE
