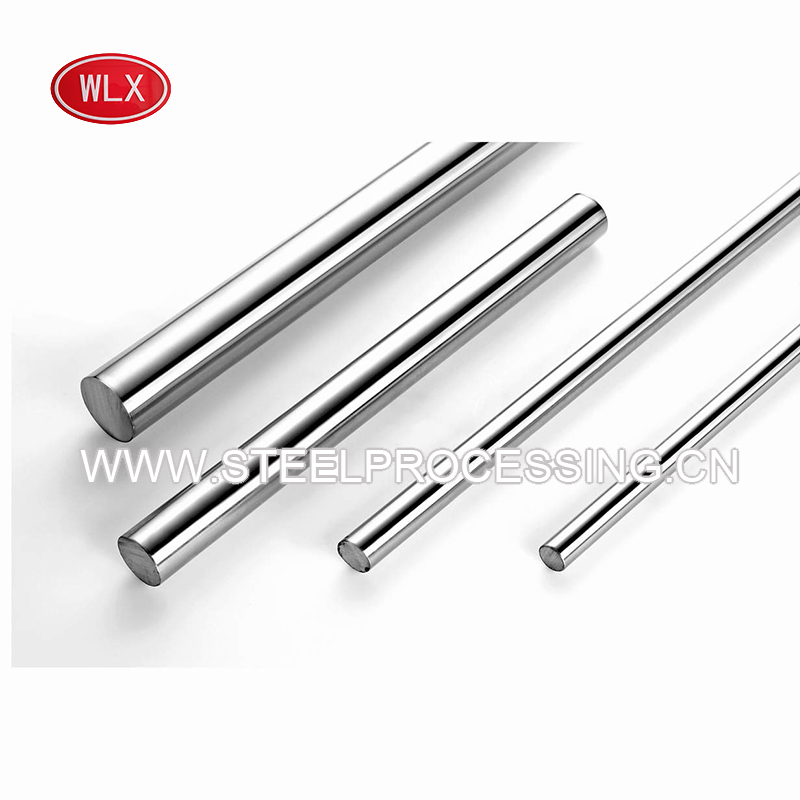

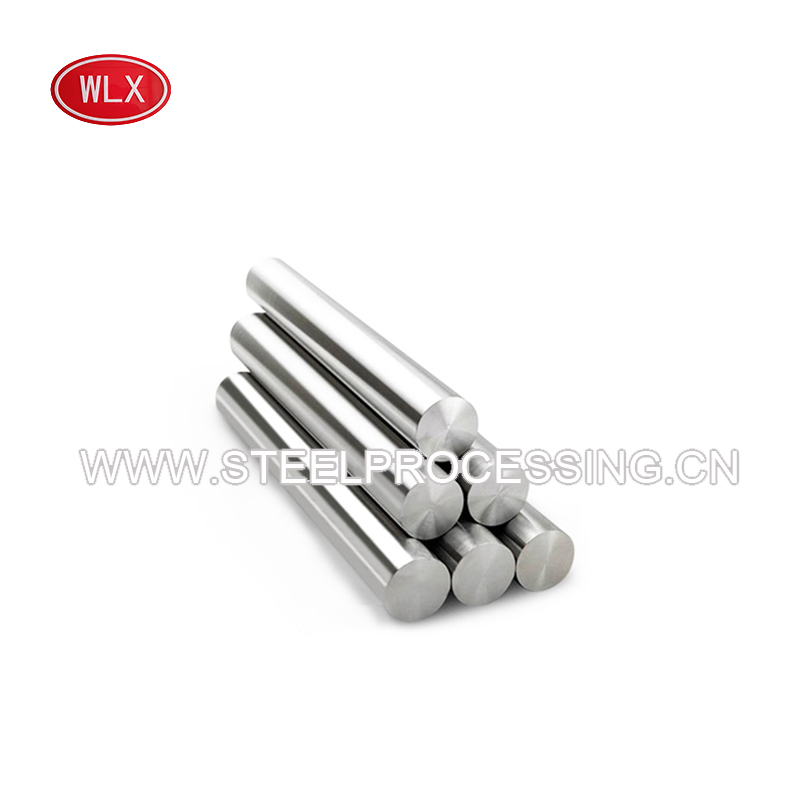

Hard Chrome Plated Piston Rod for Hydraulic Cylinders
Precision-engineered piston rods designed for hydraulic and pneumatic cylinder applications. Featuring a hard chrome plated surface, they provide enhanced wear resistance and corrosion protection.
Technical Specifications
Overview
Precision-Engineered Piston Rods
These hard chrome plated piston rods are manufactured from high-quality 45# steel, designed specifically for demanding industrial applications. Through specialized grinding and electroplating processes, the rods achieve a mirror-like finish that provides exceptional wear and corrosion resistance. They are ideal for use as guide or ejector rods in machinery such as injection molding, die casting, and printing equipment.
Technical Specifications
Surface Hardness
700 HV
Min Hardness
1,150 HV
Max Hardness
Hard Chrome Thickness
15 um
Min Thickness
40 um
Max Thickness
- Base Material
- 45# Steel
- Surface Roughness (Ra)
- 0.2-0.4
- Straightness
- 0.05-0.10 m/m
- Outer Diameter Tolerance
- f7-f8 (customizable)
- Standard Length
- 1-6 meters
Applications
- Common Industrial Applications
- Hydraulic CylindersPneumatic CylindersPrinting MachineryDyeing MachineryDie Casting MachinesInjection Molding Machines
