Hand Operated Rotary Vane Pump
This hand-operated rotary pump is designed for the efficient transfer of various fluids. Its smooth rotary action and durable construction provide precise control and long-lasting performance.
Technical Specifications
Product Overview

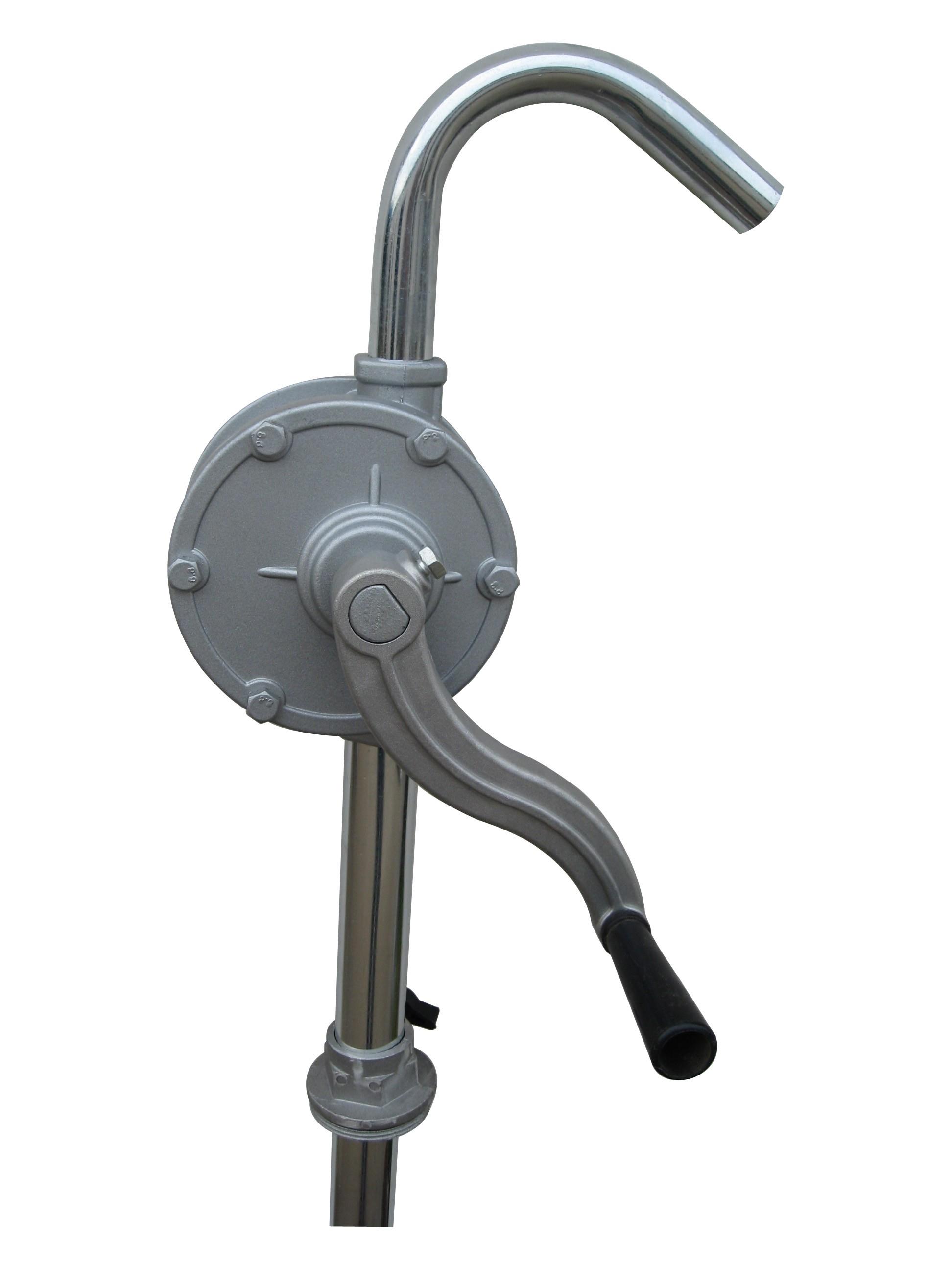

Professional Rotary Vane Pump
This manual rotary vane pump is designed for the efficient and reliable transfer of non-corrosive fluids, including petrol, kerosene, diesel, and machine oil. Featuring a robust construction of cast iron and steel, it offers a smooth rotary action for easy operation in automotive, agricultural, and industrial environments. The versatile design includes an adjustable inlet tube and multiple blade material options, ensuring it meets the specific demands of your fluid transfer tasks.
Technical Specifications
- Suction Distance
- 1.5 M
- Lift Distance
- 5 M
- Flow Rate
- 22 L/MIN
- Rotative Velocity
- 70 R/MIN
- Blade Material Options
- Alloy CopperBakeliteCarbon
- Compatible Fluids
- PetrolKeroseneDieselMachine Oil

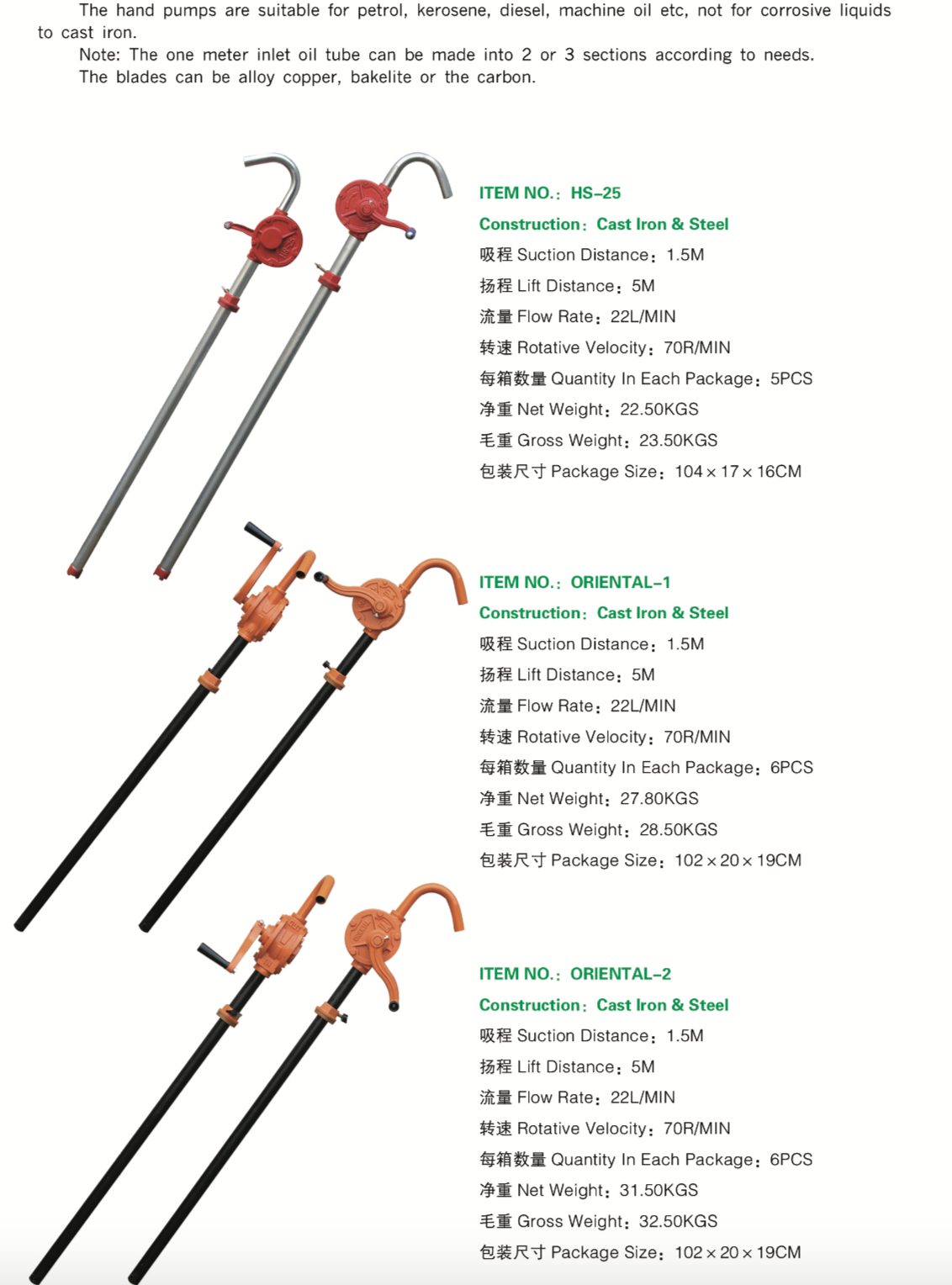

Model Comparison
Model Specifications
| Model | Net Weight | Qty/Package | Package Size |
|---|---|---|---|
| HS-25 | 22.50 KGS | 5 | 104x17x16 CM |
| ORIENTAL-1 | 27.80 KGS | 6 | 102x20x19 CM |
| ORIENTAL-2 | 31.50 KGS | 6 | 102x20x19 CM |
