Hand Operated Hydraulic Brake Valve
This hand-operated brake valve is designed for hydraulic braking systems, offering high operation safety with minimal force. It is suitable for use in construction equipment, material handling vehicles, and agricultural machinery.

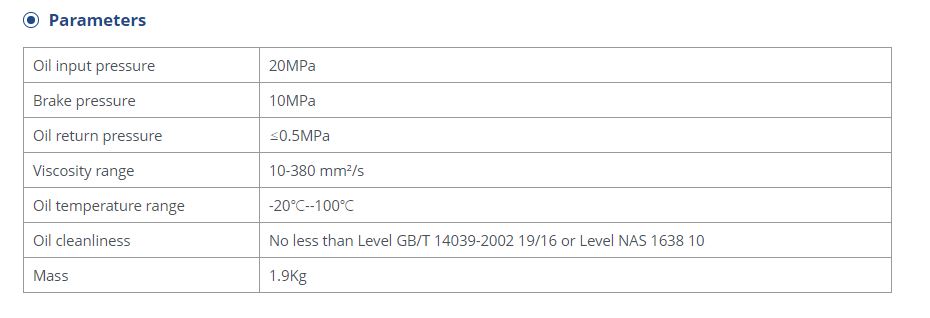

Technical Specifications
Overview
High-Performance Hydraulic Control
This hand-operated hydraulic brake valve is engineered for demanding mobile machinery, offering high operation safety with minimal operating force. It is specifically designed for integration into construction equipment, material handling vehicles, forestry, and agricultural machinery. The robust design ensures reliable, precise braking performance in heavy-duty applications.
Performance Metrics
Oil Input Pressure
20 MPa
Max Input Pressure
Brake Pressure
10 MPa
Brake Pressure
- Oil Return Pressure
- 0.5 MPa
Operational Requirements
- Oil Viscosity Range
- 10-380 mm²/s
- Operating Temperature
- -20°C to 100°C
- Required Oil Cleanliness
- GB/T 14039-2002 19/16NAS 1638 10
Physical Specifications

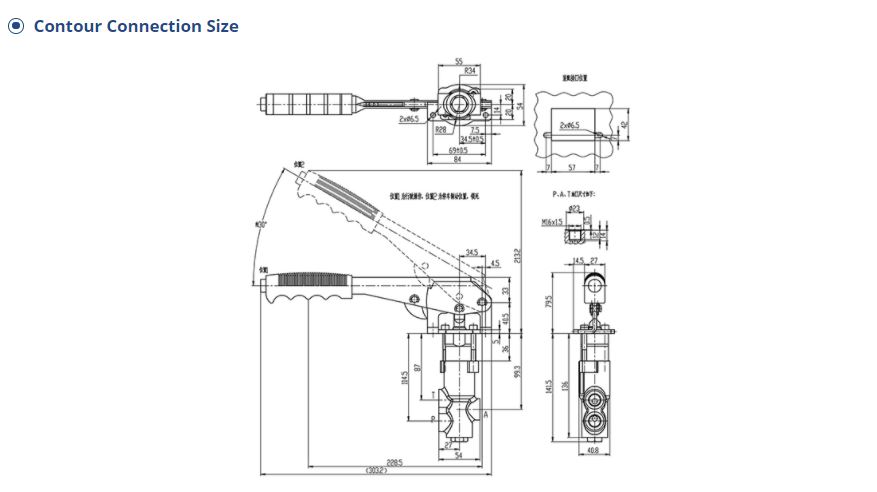

Key Dimensions
| Dimension | Value |
|---|---|
| Overall Length | 228.5 mm |
| Height | 213.2 mm |
- Unit Mass
- 1.9 kg

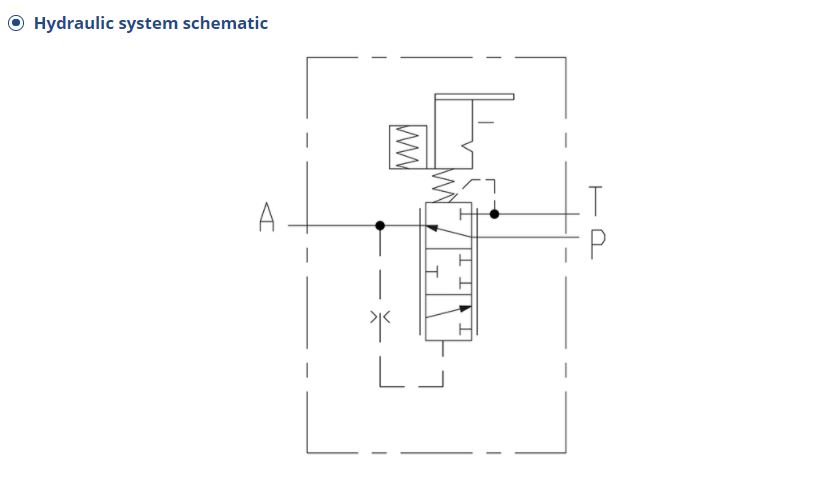

System Integration
Port Configuration
- Port A
- Port T
- Port P
