Hand Operated Brake Valve
This hand operated brake valve provides high operation safety with low operating force. It is suitable for use in construction equipment, material handling vehicles, and agricultural machinery.
Technical Specifications
Product Overview
High-Performance Manual Brake Control
This hand-operated brake valve is engineered for superior safety and reliability in mobile machinery, including construction, forestry, and agricultural equipment. It features a robust, ergonomic design that allows for precise modulation of brake pressure through a manual lever mechanism. With a compact footprint and high-performance hydraulic specifications, it provides operators with consistent, responsive control for demanding braking applications.
Performance Specifications
- Oil Input Pressure
- 20 MPa
- Nominal Flow
- 25 L/min
- Oil Return Pressure
- 0.5 MPa
- Viscosity Range
- 10-380 mm²/s
- Operating Temperature Range
- -20°C to 100°C
- Required Oil Cleanliness
- GB/T 14039-2002 19/16NAS 1638 10
Physical Dimensions
- Total Mass
- 1.8 kg
- Handle Length
- 228.5 mm
- Maximum Height
- 213.2 mm
- Total Height (Upright)
- 345 mm
- Handle Adjustment Range
- 100 degrees
- Mounting Hole Diameter
- 6.5 mm
- Port Size
- M16x1.5

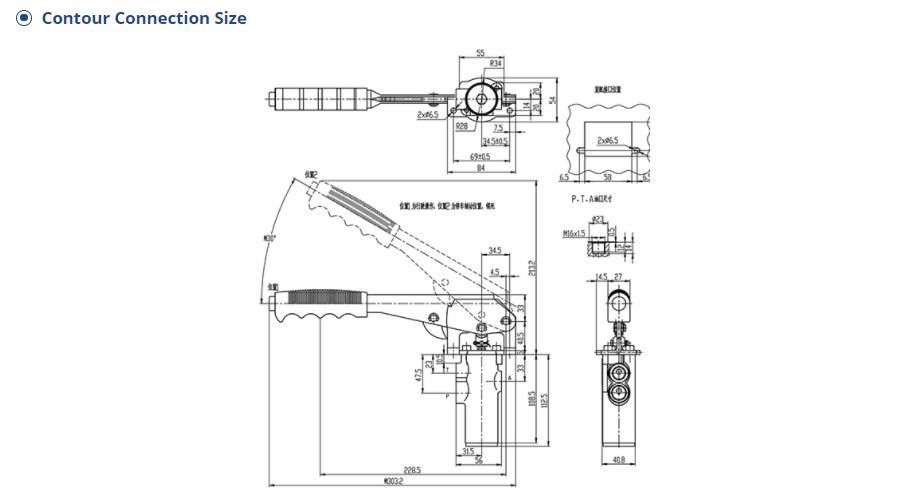

Technical Schematic

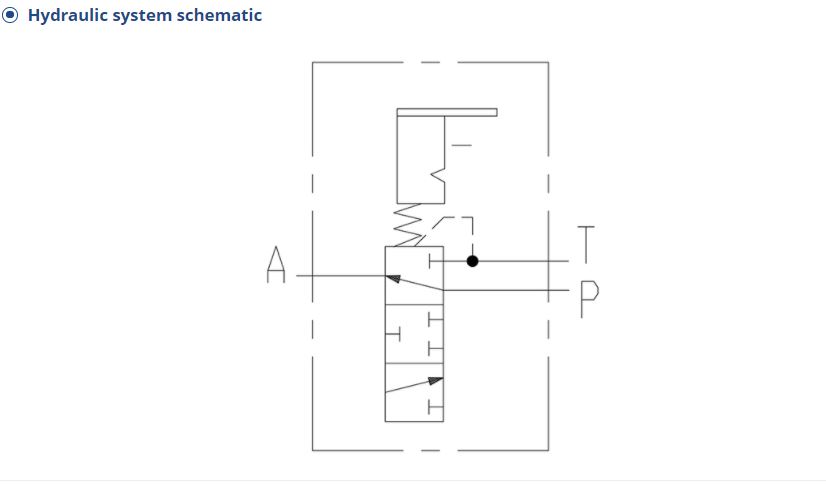

Hydraulic Port Definitions
| Port Label | Function |
|---|---|
| A | Actuator Connection |
| T | Tank Connection |
| P | Pressure Source Connection |
