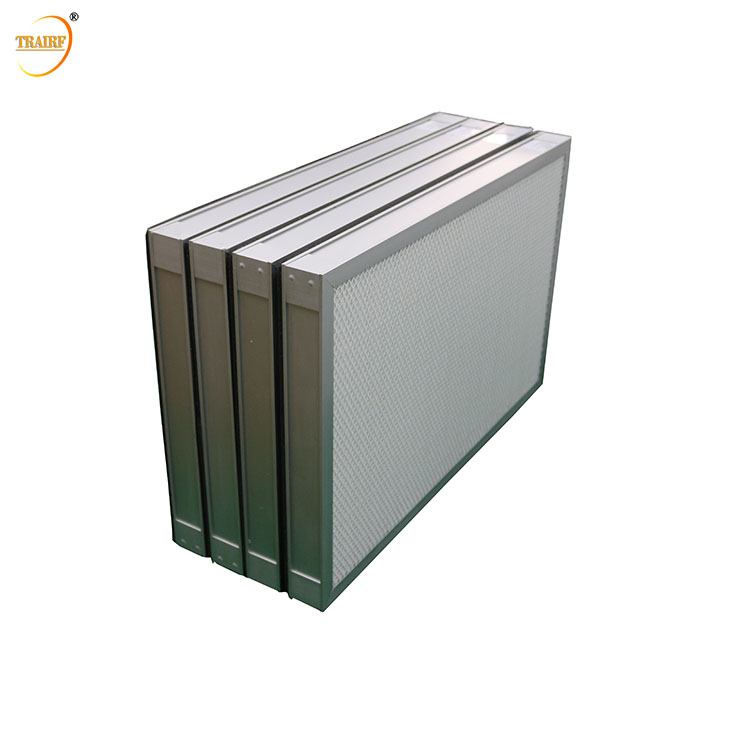

H13 HEPA Air Filter 99.99% Efficiency 0.3 Micron
This HEPA air filter achieves 99.99% efficiency at 0.3 micron particle size. It is constructed with protective mesh, offering low resistance, large airflow, and high leakproofness.
Technical Specifications
Product Overview
High-Efficiency Terminal Filtration
This H13 HEPA Air Filter is engineered for critical environments requiring stringent contamination control, offering 99.99% efficiency at 0.3-micron particle size. Constructed with high-quality micro-fiber glass media and a robust frame, it provides reliable performance for cleanroom terminal filtration and air purification systems. The design is highly adaptable, supporting various frame materials and customizable dimensions to suit specific installation requirements.
Technical Specifications
Efficiency Rating
≥ 99.99%
- Filter Media
- Glass Fiber
- Filter Type
- Panel Air Filter
- Frame Materials
- Stainless SteelAluminum AlloyGalvanized Plate
Performance Data
Model Specifications
| Model | Dimensions (mm) | Airflow (m³/h) | Initial Resistance (Pa) | Dust Capacity (g) |
|---|---|---|---|---|
| TR-WGB-1 | 610*610*50 | 700 | ≤220 or ≤140 HV | 450 |
| TR-WGB-2 | 915*610*50 | 1,000 | ≤220 or ≤140 HV | 680 |
| TR-WGB-3 | 1220*610*50 | 1,400 | ≤220 or ≤140 HV | 900 |
| TR-WGB-4 | 610*610*69 | 1,000 | ≤220 or ≤140 HV | 560 |
