Graphite Electrode for Electric Arc Furnace
Graphite electrodes are essential for electric arc furnaces in steel manufacturing. These electrodes are engineered to withstand high temperatures and provide excellent electrical conductivity during the steelmaking process.
Technical Specifications
Product Overview
High-Performance Graphite Electrodes
These graphite electrodes are engineered specifically for use in Electric Arc Furnaces (EAF) for steelmaking applications. Designed to withstand demanding industrial environments, they offer excellent electrical conductivity and thermal resistance to ensure optimal furnace performance. The product range includes various grades—UHP, HP, and RP—to cater to specific operational requirements and ensure longevity during the smelting process.
Technical Specifications
- Diameter Supply Scope
- Φ100mm - Φ700mm
- Available Grades
- UHPHPRP
Performance Metrics
Physical and Electrical Properties
| Property | Electrode (Range) | Nipple (Range) |
|---|---|---|
| Electric Resistivity (μΩ-m) | ≤5.0 - ≤6.0 | ≤4.0 - ≤5.5 |
| Transverse Strength (MPa) | ≥8.0 - ≥15.0 | ≥16.0 - ≥24.0 |
| Young's Modulus (GPa) | ≤9.3 - ≤14.0 | ≤14.0 - ≤18.0 |
| Bulk Density (g/cm3) | ≥1.54 - ≥1.68 | ≥1.70 - ≥1.76 |
| Coefficient of Thermal Expansion (10-6/°C) | ≤1.5 - ≤2.5 | ≤1.2 - ≤2.0 |
- Ash Content
- 0.2 %
Logistics and Handling
Handling Features
Labeled for trackingSafety symbols includedSecure transport
- Packaging

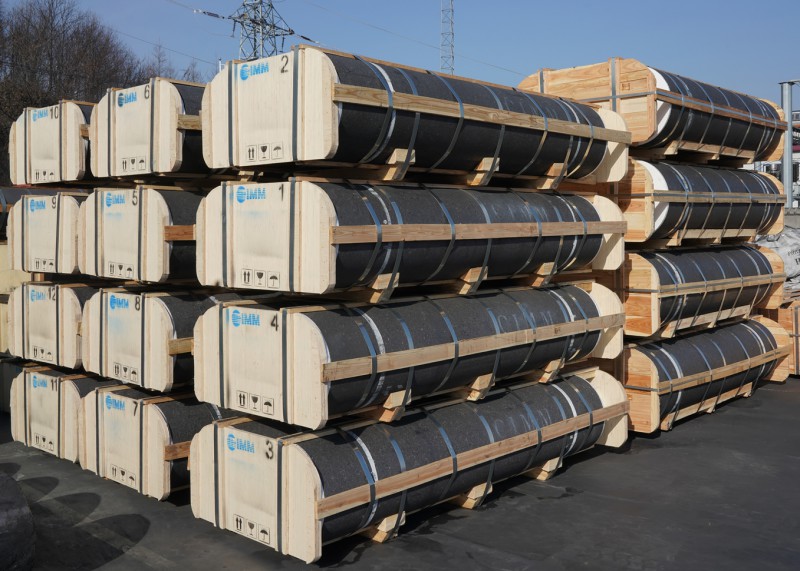

- Wooden crates with metal banding
