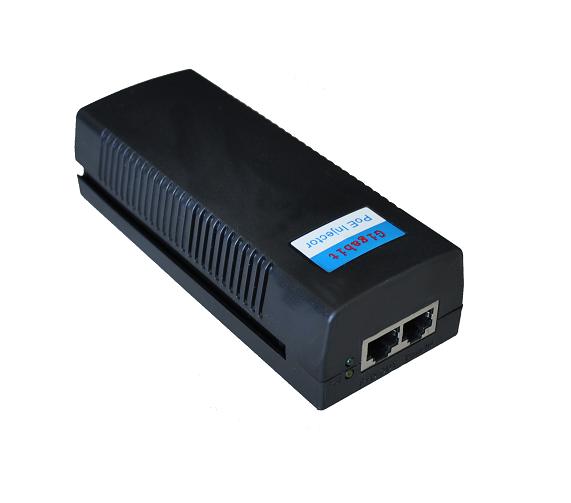

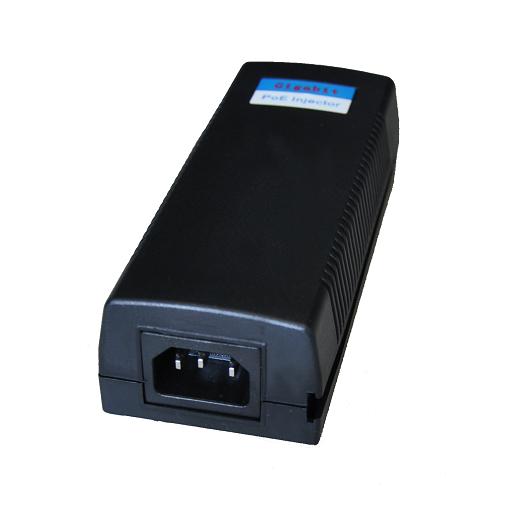

Gigabit PoE Adapter 30W Single Port
This single-port Gigabit PoE adapter delivers up to 30W of power to compatible devices. It supports IEEE 802.3af/at PoE standard and features Gigabit Ethernet ports for high-speed data transmission.
Technical Specifications
Overview
Gigabit PoE Midspan Injector
This single-port Gigabit Power over Ethernet (PoE) midspan is designed to simplify network installations by delivering both power and data over a single Ethernet cable. Compliant with the IEEE802.3at standard, it automatically identifies and powers compatible devices such as IP cameras, wireless routers, and VoIP phones. The unit ensures reliable electricity supply while protecting connected equipment from short circuits and power faults, making it an ideal solution for challenging installation environments.
Technical Specifications
PoE Standard
IEEE802.3at
Network Port Pin Definitions
- Pins 1, 2, 3, 6: Data
- Pins 4, 5: Power (+)
- Pins 7, 8: Power (-)
- Supported Data Rates
- 10BASE-T100BASE-TX1000BASE-TX
- Number of Ports
- 1
Power & Environment
Input Power
100 V AC
Voltage Range
48 V DC
Output Voltage
1.5 A
Output Current
- Operating Temperature
- -20 to 70°C
- Storage Temperature
- -40 to 70°C
- Operating Humidity
- 5% to 95% (unfrozen)
Physical Medium Compatibility
Cable Standards
| Connection Type | Cable Type | Max Length |
|---|---|---|
| 10BASE-T | CAT3, 4, 5 UTP / 100ohm STP | 100m |
| 100BASE-TX | CAT 5 or up UTP / 100ohm STP | 100m |
