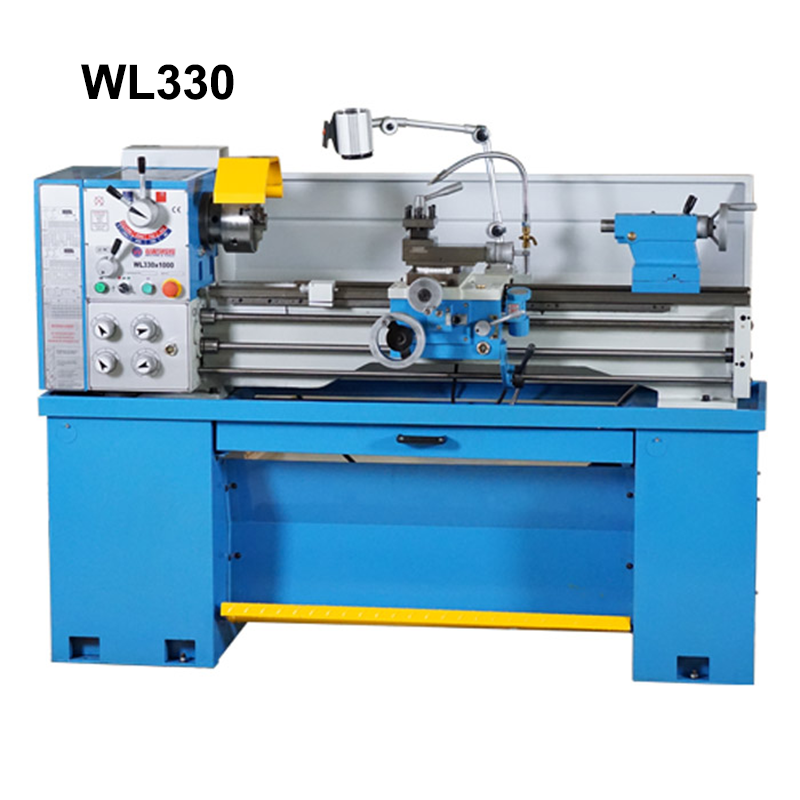

General Purpose Metalworking Lathe
This general-purpose lathe is designed for metalworking, equipped with a headstock, tailstock, and carriage. It enables turning, facing, and threading operations with features like a multi-speed drive system and adjustable tool post.
Technical Specifications
Overview
General Purpose Metalworking Lathe
This versatile metalworking lathe is designed for precision turning, facing, and threading operations. Featuring a robust geared headstock and induction-hardened bedways, it provides reliable performance for small to medium-sized workshops and educational environments. The machine supports both manual and semi-automated tasks, offering significant flexibility with adjustable speed settings and precise feed control.
Capacity and Dimensions
Key Capacity Metrics
330 mm
Swing Over Bed
476 mm
Swing Over Gap
198 mm
Swing Over Cross Slide
- Bed Width
- 187 mm
- Distance Between Centers
- 500 mm750 mm1000 mm
Spindle and Drive
Spindle Specifications
| Feature | Detail |
|---|---|
| Spindle Bore | 38 mm |
| Spindle Nose | D1-4 |
| Spindle Taper | MT5 |
| Speed Range | 70-2000 rpm |
| Number of Speeds | 8 |
- Motor Power
- 1.5 KW
Machining Capabilities
Feed Ranges
- Cross feeds: 0.009-0.253 mm/r
- Longitudinal feeds: 0.052-1.392 mm/r
Thread Cutting Ranges
- Inch threads: 4-56 T.P.I
- Metric threads: 0.4-7 mm
Travel and Tailstock
Travel Specifications
| Component | Travel Distance |
|---|---|
| Top Slide Travel | 92 |
| Cross Slide Travel | 170 |
| Tailstock Quill Travel | 100 |
- Tailstock Quill Taper
- MT3
Equipment
Standard Accessories
3-jaw chuck (160mm)4-jaw chuck (200mm)Face plate (250mm)Steady restFollow restChip traySplash guardStand & oil trayToolbox & tools
Optional Accessories
Taper turning attachmentTurning toolsQuick change tool postDigital readout systemLeadscrew coverTool post coverHalogen work lampMicro carriage stop
