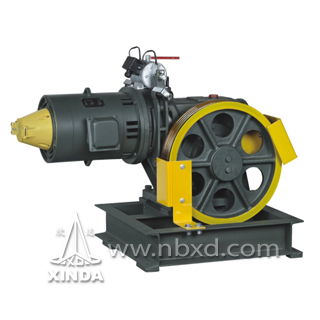

Geared Elevator Traction Machine
This elevator traction machine features a geared drive system for efficient operation. It is designed to provide smooth and precise elevator movement in residential and commercial buildings.
Technical Specifications
Product Overview
High-Efficiency Geared Traction Solution
This geared elevator traction machine is engineered for reliable and smooth vertical transportation. Designed for machine room installations, it balances high load capacity with precision control. It ensures passenger comfort through advanced vibration dampening and low-noise operation, making it ideal for residential and commercial building applications.
Technical Specifications
Rated Load
400 kg
Rated Load
Rated Speed
0.63 m/s
Speed
- Static Load
- 2600 kg
- Control Type
- VVVF
Performance & Comfort
- Noise Level
- 61 db(A)
- Torsional Vibration
- 2 mm/s
- Horizontal & Vertical Vibration
- 0.8 mm/s
Installation Details
Key Dimensions
| Parameter | Value |
|---|---|
| Total Length | 1000mm |
| Wheel Diameter | 450mm |
| Mounting | 4-Φ18 holes |
- Installation Method
- Machine Room
