Gearbox Drilling Machine with Threading Mechanism
This gearbox drilling machine is constructed with heavy, solid cast iron for smooth running and stability. It features a threading mechanism and a 7-liter detachable coolant tank.
Technical Specifications
Overview
Industrial Gearbox Drilling & Threading Solution

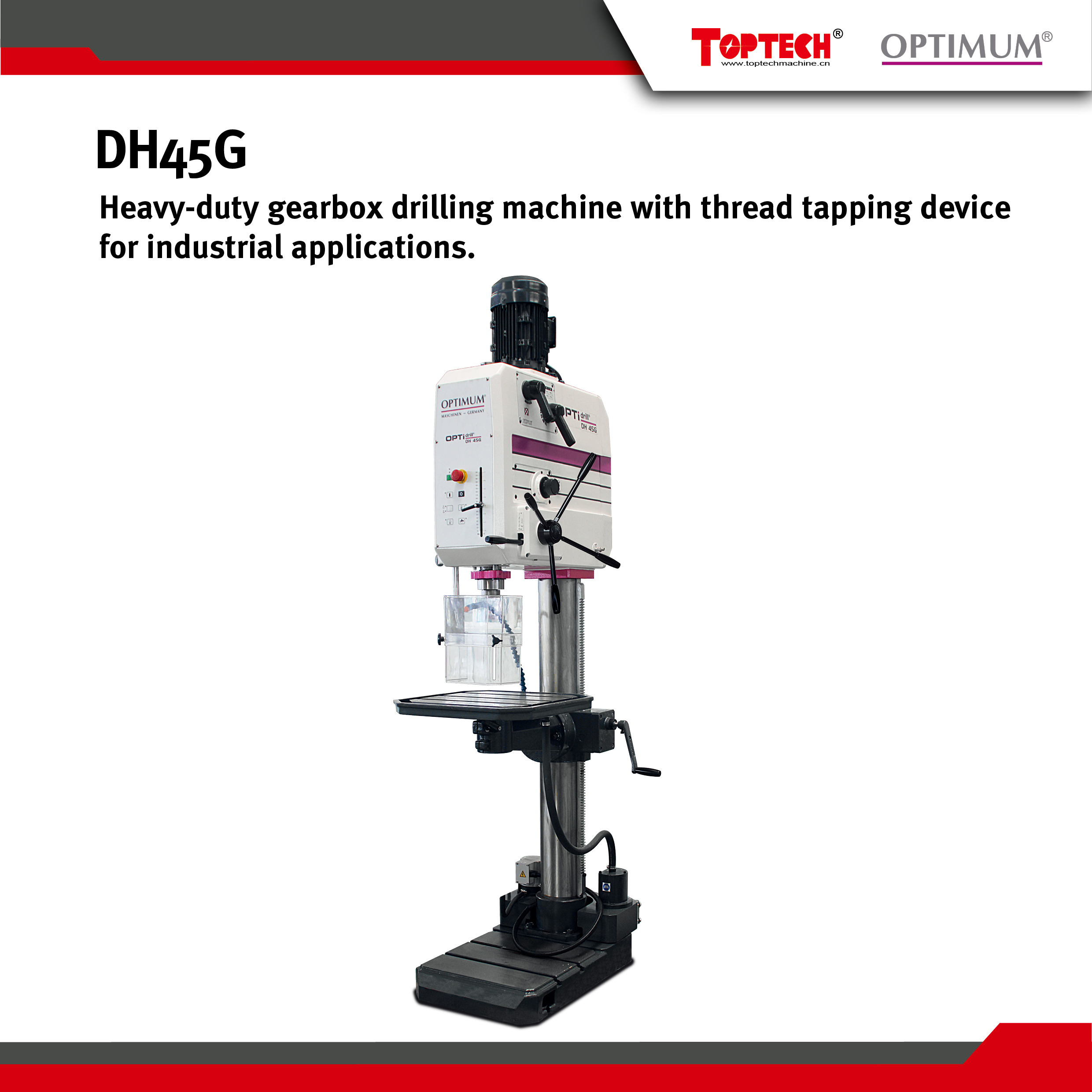

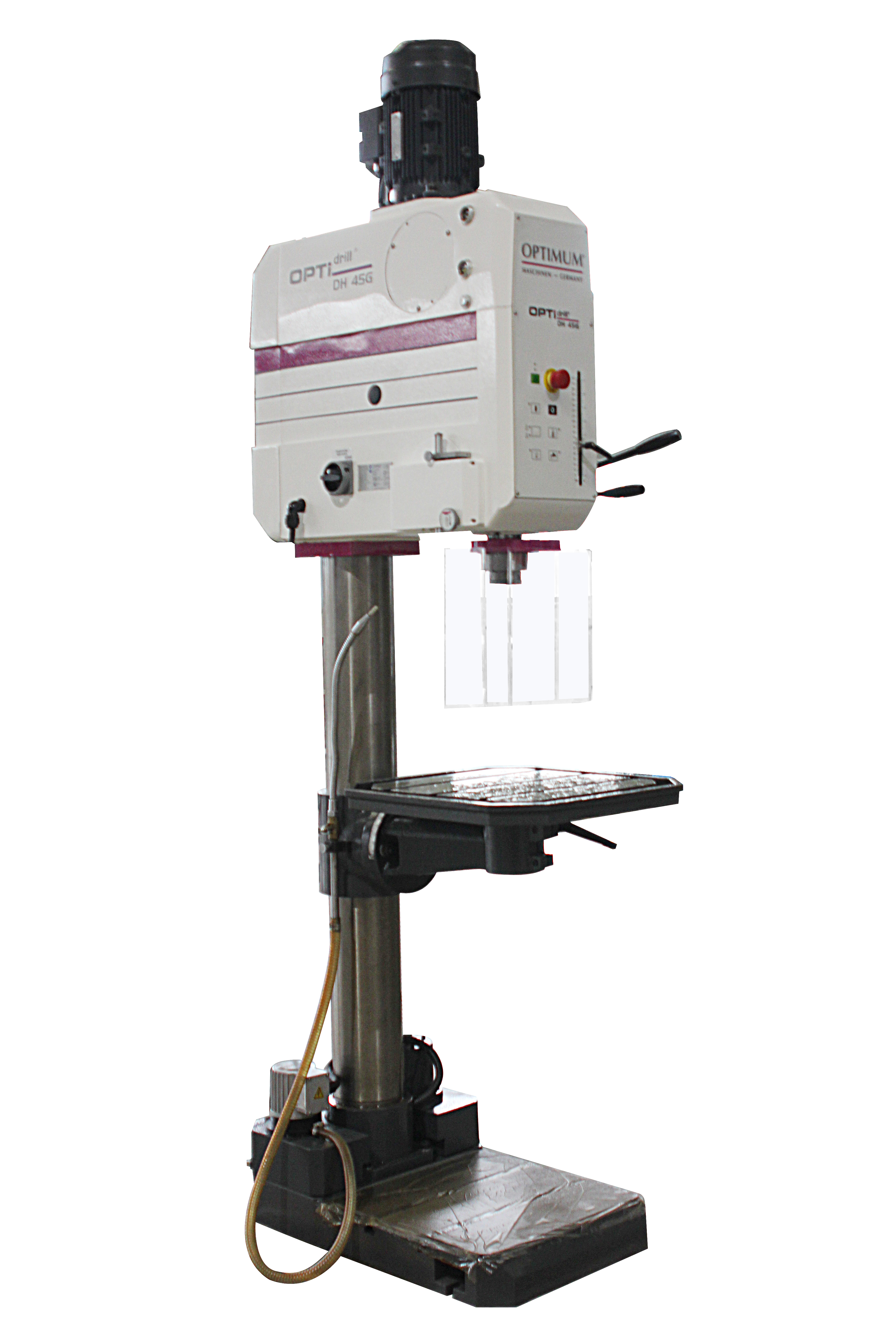

The DH45G is a heavy-duty gearbox drilling machine designed for high-precision industrial metalworking. It features a robust cast iron construction and a hardened spindle to ensure stability and high true running accuracy during demanding operations. With integrated tapping capabilities and a 3-stage automatic spindle sleeve feed, this machine provides professional buyers with a versatile and reliable solution for drilling and threading steel.
Performance Metrics
Key Performance Capacities
40 mm
Drilling Capacity (Steel)
35 M
Threading Capacity (Steel)
180 mm
Spindle Stroke
Technical Specifications
Electrical Requirements
| Parameter | Value |
|---|---|
| Electrical Connection | 400 V / 3PH / 50Hz |
| Total Connection | 2.2 kW |
| Coolant Pump Motor | 0.04 kW |
| Control Voltage | 24-V DC |
Spindle & Gearbox
Spindle & Speed Settings
- Spindle Seat: MT4
- Spindle Speeds: 90 - 1520 rpm (8 steps)
- Automatic Sleeve Feed: 3 speeds (0.1, 0.15, 0.2 mm/rev)
- Throat Depth: 350 mm
- Hardened and ground spindle for high accuracy
- Automatic gear lubrication via oil pump
Work Table & Base
Working Area & Adjustability
| Feature | Specification |
|---|---|
| Work Surface Table | 530 x 530 mm |
| Table Load Capacity | 250 kg |
| Table Rotation | 360° / ±90° |
| T-Slot Size (Table) | 16 mm / 125 mm / 3 qty |
| Work Surface Stand | 755 x 480 mm |
| T-Slot Size (Stand) | 18 mm / 150 mm / 2 qty |
| Column Diameter | 150 mm |
Standard Features
- Integrated Equipment
- Tapping FunctionTouch Panel7L Detachable Coolant TankIntegrated Machine LampLockable Main SwitchProtective Motor SwitchDrill Drift
Physical Dimensions
- Net Weight
- 530 kg
- Machine Dimensions
- 850 x 550 x 2350 mm
