Gear Oil Pump
This gear pump is suitable for use as a transmission and booster pump in oil transportation systems. It can also function as a fuel pump for conveying, pressurizing, and spraying in fuel systems.
Technical Specifications
Overview

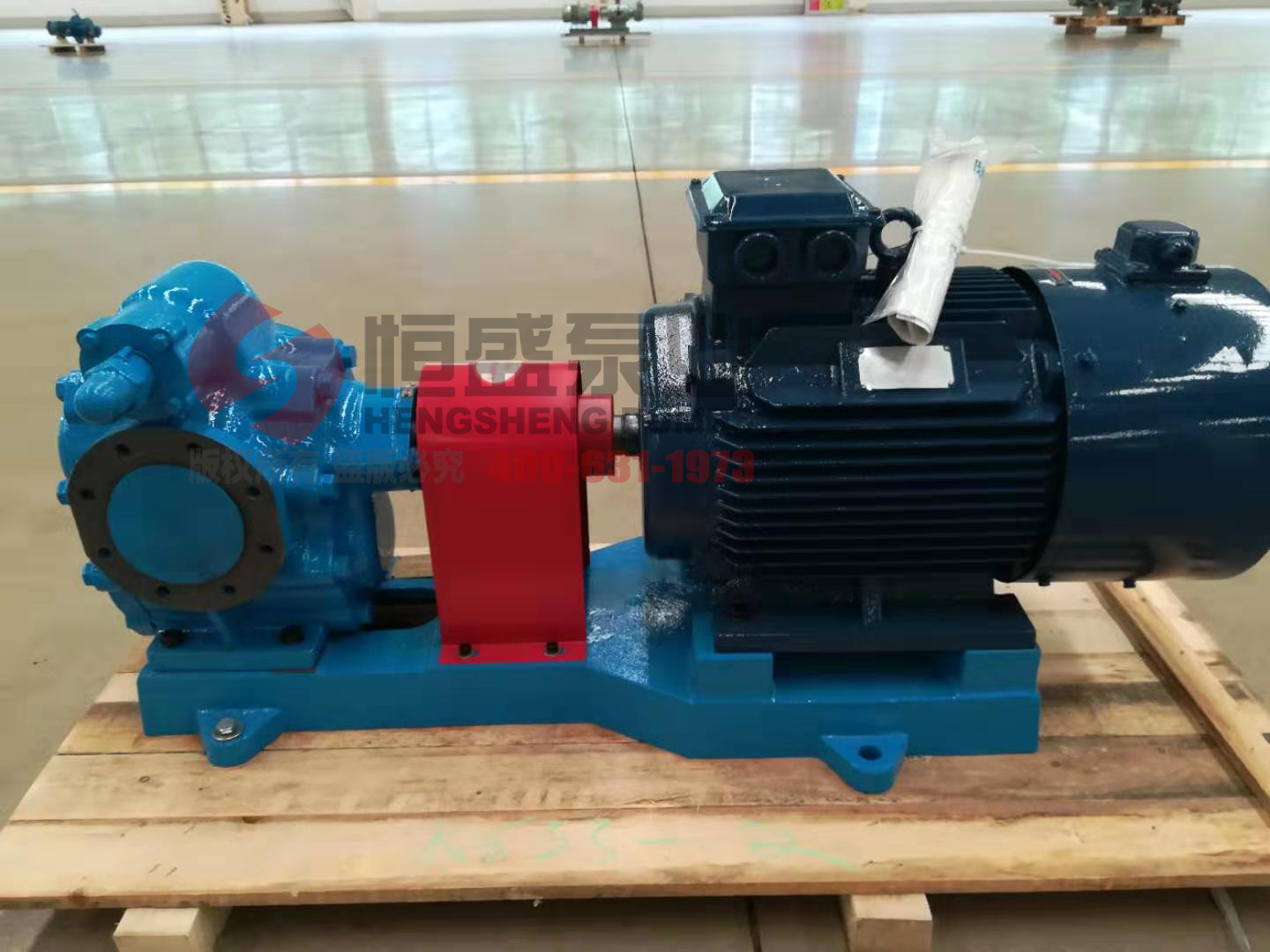

KCB Series Gear Pump
The KCB series gear pump is a robust positive displacement pump engineered for the reliable transfer of viscous fluids. Designed with high-strength materials and precision heat-treated gears, it excels in demanding industrial environments including oil transportation, fuel systems, and general lubrication. The unit features an integrated safety valve for overload protection and offers flexible configuration options to meet specific operational requirements.
Performance Metrics
Maximum Pressure
1.45 MPa
Max Pressure
Maximum Flow Rate
580 m³/h
Max Flow
Maximum Temperature
300 °C
Max Temp
Technical Specifications
Safety Features
- Integrated safety valve for overload protection
- Safety valve set to 1.5x rated discharge pressure
- Viscosity Range
- 5 - 1500 mm²/s (standard); up to 50000 mm²/s (at reduced speed)
- Rotation Direction
- Clockwise (viewed from spindle extension)
Design & Construction
Optional Features
Magnetic DriveZero Leakage Structure
- Key Components
- GearShaftPump BodyValveShaft End Seal
Applications
Industry Applications
- Oil transportation systems (transmission and booster)
- Fuel systems (conveying, pressurizing, spraying)
- Industrial lubrication
